Cable Fault Meter PCE-LT 12

Order no.: PCE-LT 12

GTIN (EAN): 4250348718525

Description

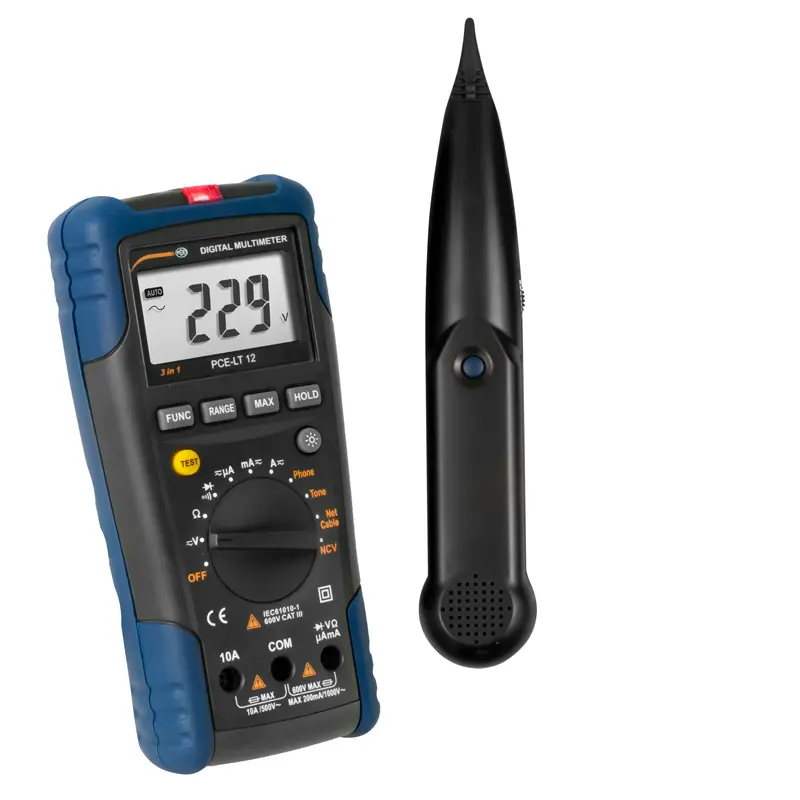

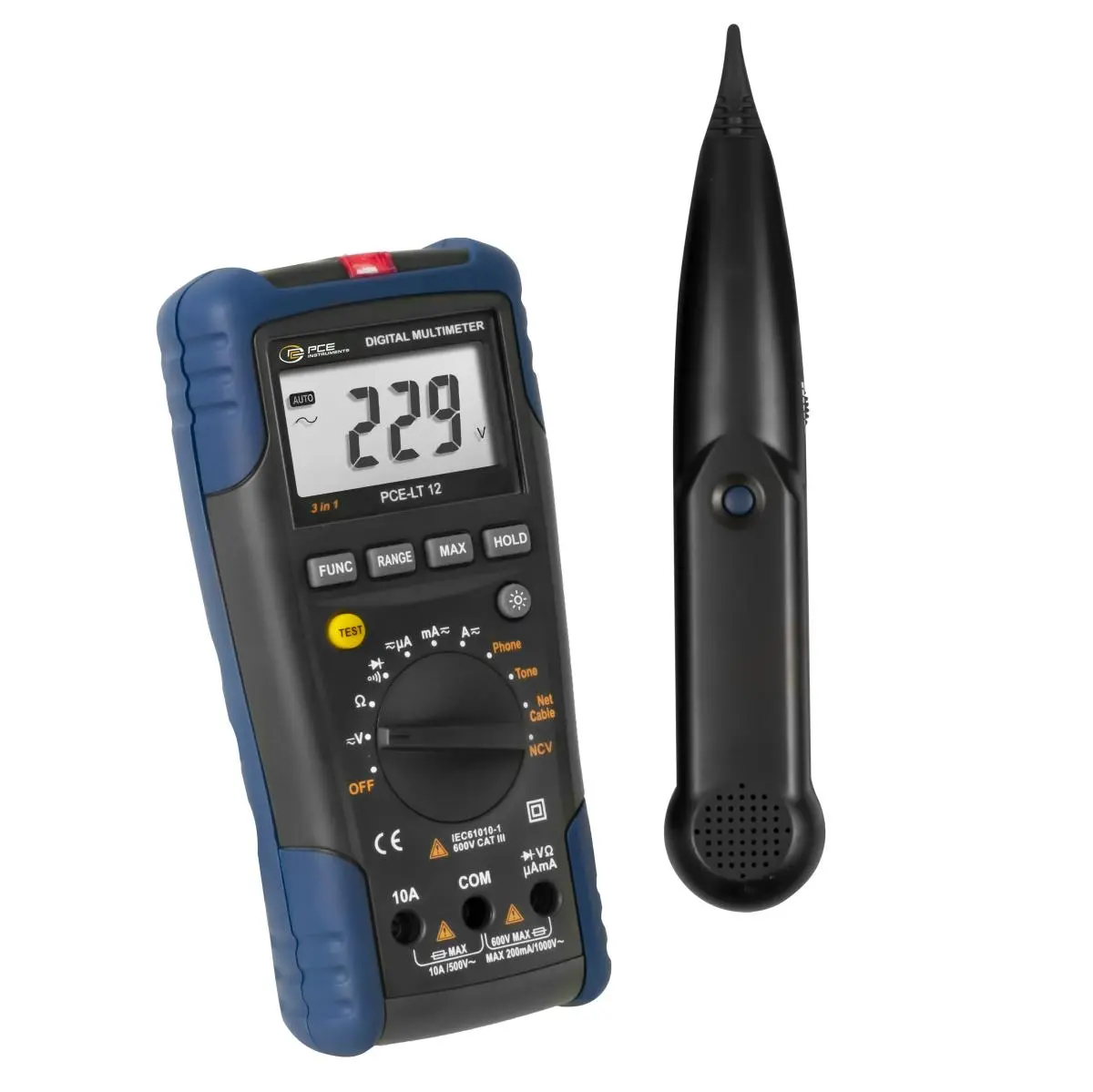

Cable fault meter PCE-LT 12
Voltage tester with many measuring functions / For electricians and IT employees / Analysis of network connection cables / Telephone connection test / Voltage and current measurement / NCV / backlight

The voltage tester is a versatile measuring instrument. In addition to the standard voltage and current measurements, the voltage tester also has a network analysis. With this network analysis, the voltage tester can be used to check, for example, LAN connections for their correct wiring and function. Telephone connections can also be checked for their function with this voltage tester. If cables can not be found again, the voltage tester also helps here.

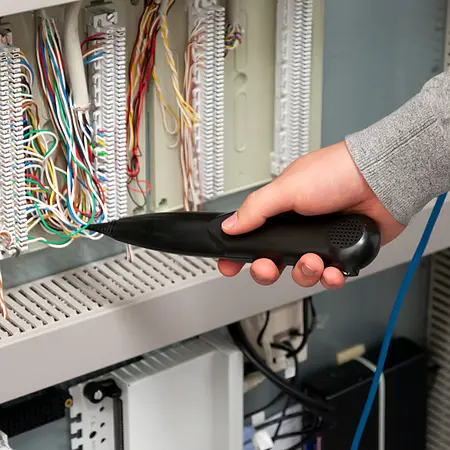

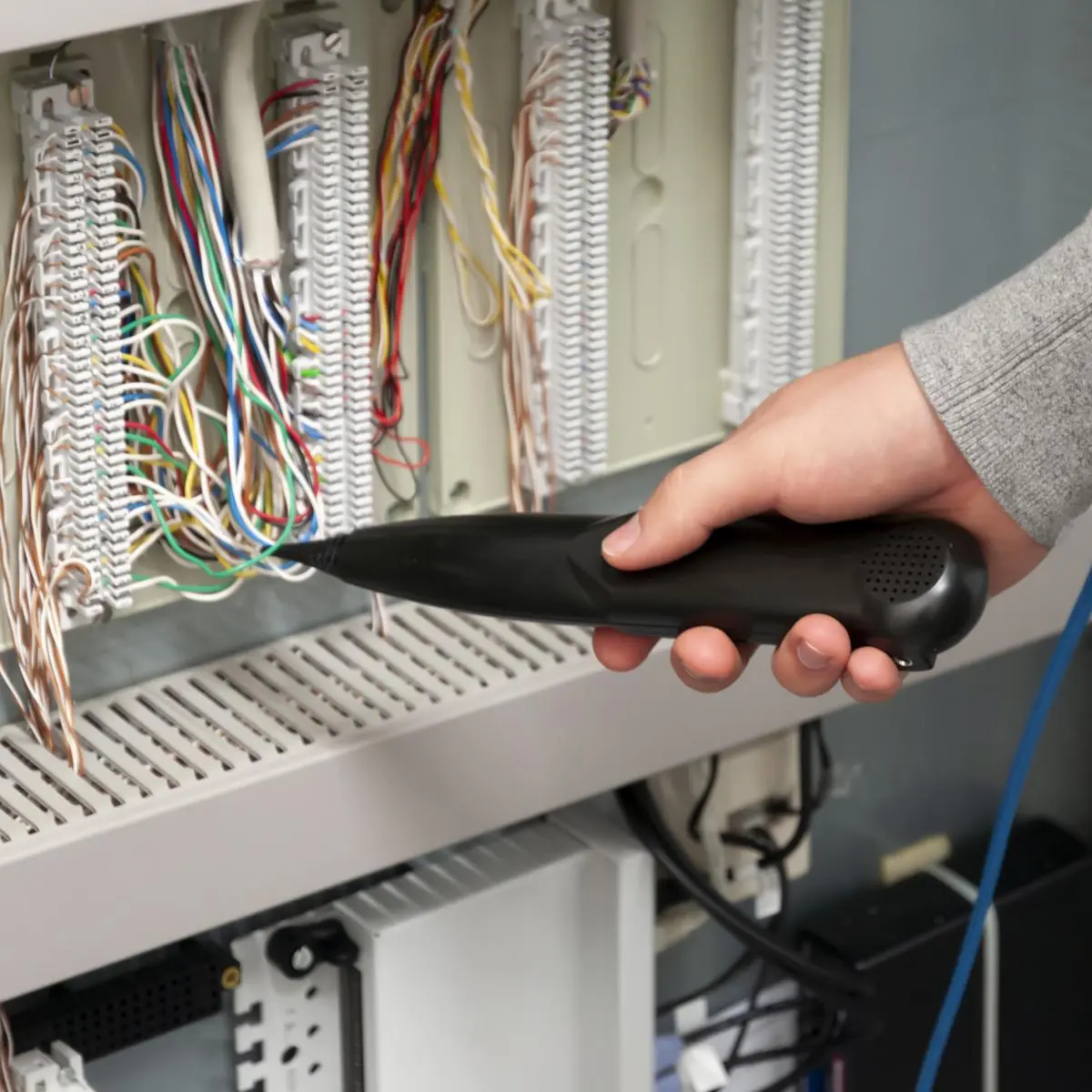

Thanks to the cable finder function of the voltage tester, the operator can find the required cable in no time at all. To do this, the voltage tester must be connected to the connection of a cable. The voltage tester now acts as a transmitter. With the supplied receiver you can now easily find the desired cable in, for example, a wiring harness or behind walls with the voltage tester.

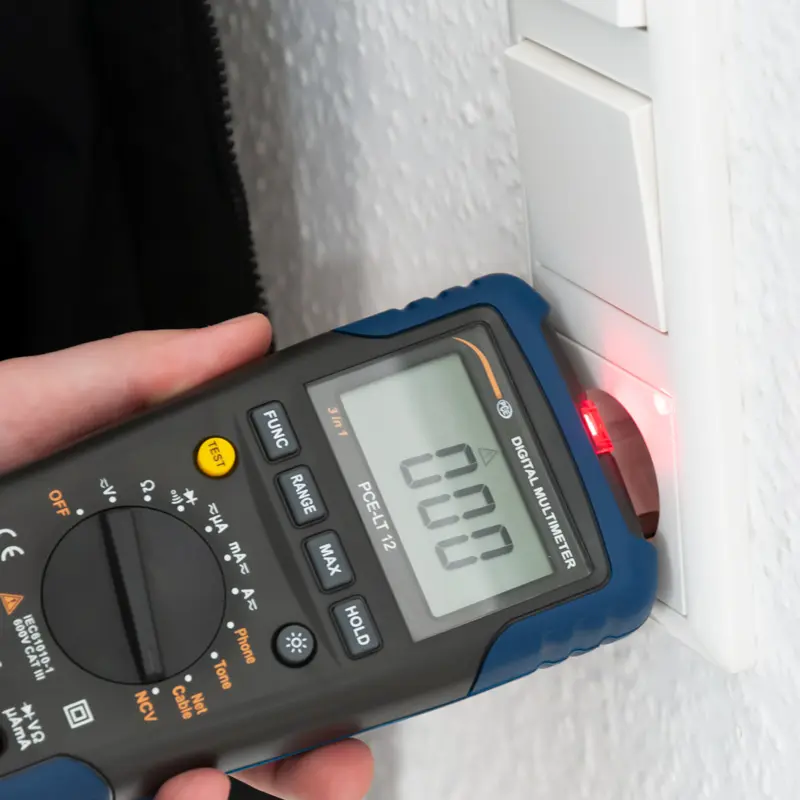

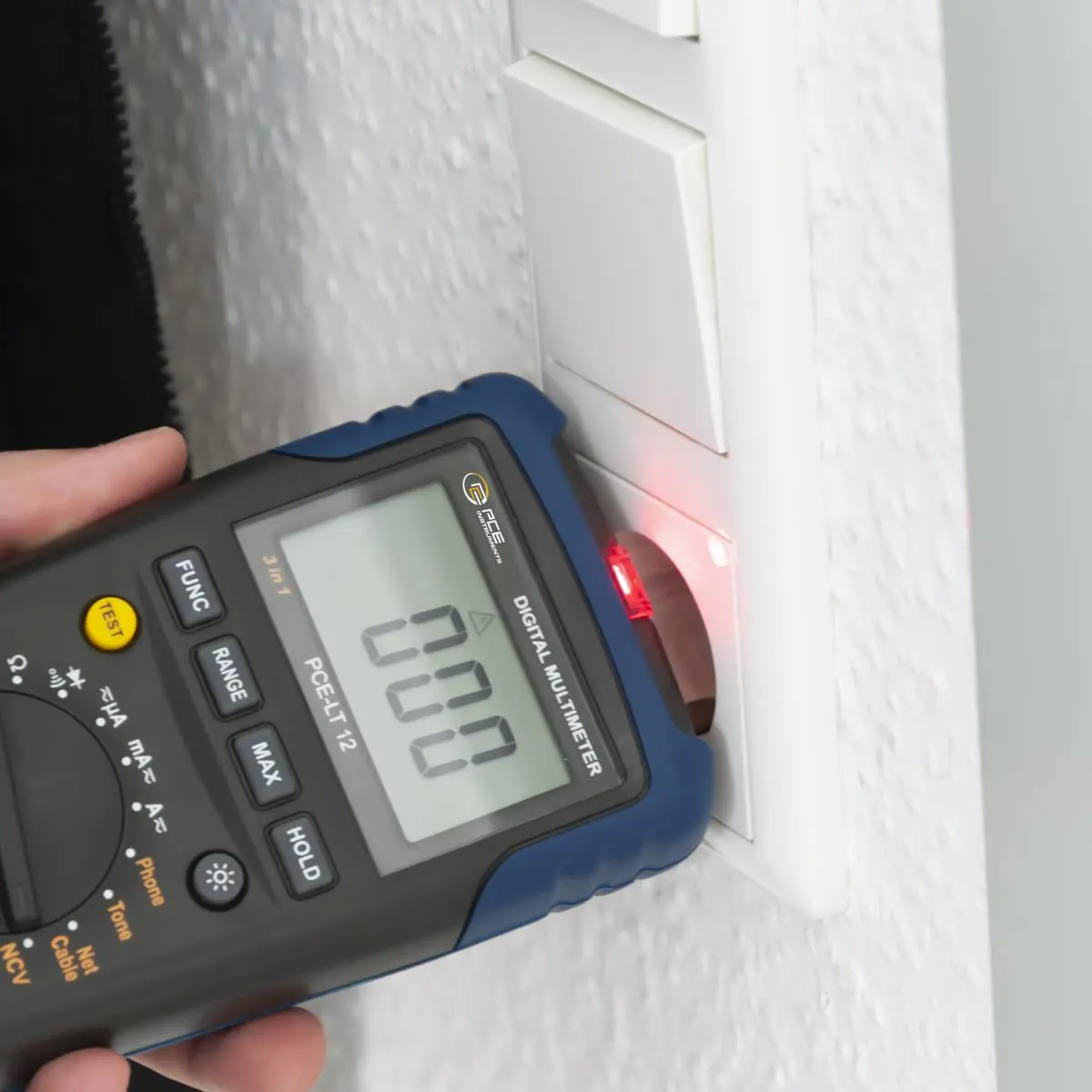

To check whether a voltage is applied to a cable, the voltage tester has an NCV (Not Connected Voltage) function. With this function, the voltage tester must only be held to the line. Both acoustically and visually, the voltage tester signals the operator that a voltage is applied to the line. Thanks to this contactless measuring function, the voltage tester reduces accidents at work due to electric shock.

Highlights

Specification

Direct voltage DC
Measuring range	0 ... 200 mV
Resolution	0,1 mV
Accuracy	±(0.5% +5 digits)

Direct voltage DC
Measuring range	0 ... 2 V
Resolution	1 mV
Accuracy	±(0.5% +5 digits)

Direct voltage DC
Measuring range	0 ... 20 V
Resolution	0,01 V
Accuracy	±(0.5% +5 digits)

Direct voltage DC
Measuring range	0 ... 200 V
Resolution	0,1 V
Accuracy	±(0.5% +5 digits)

Direct voltage DC
Measuring range	0 ... 1000 V
Resolution	1 V
Accuracy	±(0.8% +5 digits)

Direct current DC
Measuring range	0 ... 200 µA
Resolution	0,1 µA
Accuracy	±(1.2 % +5 digits)

Direct current DC
Measuring range	0 ... 2000 µA
Resolution	1 µA
Accuracy	±(1.2 % +5 digits)

Direct current DC
Measuring range	0 ... 20 mA
Resolution	0,01 mA
Accuracy	±(1.2 % +5 digits)

Direct current DC
Measuring range	0 ... 200 mA
Resolution	0,1 mA
Accuracy	±(1.2 % +5 digits)

Direct current DC
Measuring range	0 ... 2 A
Resolution	0,001 A
Accuracy	±(2% +5 digits)

Direct current DC
Measuring range	0 ... 20 A
Resolution	0,01 A
Accuracy	±(2% +5 digits)

AC voltage
Measuring range	0 ... 200 mV
Resolution	0,1 mV
Accuracy	±(0.8% +5 digits)
Frequency range	40 ... 400 Hz

AC voltage
Measuring range	0 ... 2 V
Resolution	1 mV
Accuracy	±(0.8% +5 digits)
Frequency range	40 ... 400 Hz

AC voltage
Measuring range	0 ... 20 V
Resolution	0,01 V
Accuracy	±(0.8% +5 digits)
Frequency range	40 ... 400 Hz

AC voltage
Measuring range	0 ... 200 V
Resolution	0,1 V
Accuracy	±(0.8% +5 digits)
Frequency range	40 ... 400 Hz

AC voltage
Measuring range	0 ... 750 V
Resolution	1 V
Accuracy	±(0.8% +5 digits)
Frequency range	40 ... 400 Hz

Alternating current AC
Measuring range	0 ... 200 µA
Resolution	0,1 µA
Accuracy	±(1.5 % +5 digits)
Overload	Overload protection for µA, mA: 200 mA / 1000V fuse Overload protection at A: 10 A / 500V fuse
Frequency range	40 ... 400 Hz

Alternating current AC
Measuring range	0 ... 2000 µA
Resolution	1 µA
Accuracy	±(1.5 % +5 digits)
Frequency range	40 ... 400 Hz

Alternating current AC
Measuring range	0 ... 20 mA
Resolution	0,01 mA
Accuracy	±(1.5 % +5 digits)
Frequency range	40 ... 400 Hz

Alternating current AC
Measuring range	0 ... 200 mA
Resolution	0,1 mA
Accuracy	±(1.5 % +5 digits)
Frequency range	40 ... 400 Hz

Alternating current AC
Measuring range	0 ... 2 A
Resolution	0,001 A
Accuracy	±(3% +5 digits)
Frequency range	40 ... 400 Hz

Alternating current AC
Measuring range	0 ... 20 A
Resolution	0,01 A
Accuracy	±(3% +5 digits)
Frequency range	40 ... 400 Hz

Resistance
Measuring range	0 ... 200 kΩ
Resolution	0,1 Ω
Accuracy	±(1.0% +5 digits)

Resistance
Measuring range	0 ... 2 kΩ
Resolution	0,001 kΩ
Accuracy	±(1.0% +5 digits)

Resistance
Measuring range	0 ... 20 kΩ
Resolution	0,01 kΩ
Accuracy	±(1.0% +5 digits)

Resistance
Measuring range	0 ... 200 kΩ
Resolution	0,1 kΩ
Accuracy	±(1.0% +5 digits)

Resistance
Measuring range	0 ... 2 M Ω
Resolution	0,001 M Ω
Accuracy	±(1.0% +5 digits)

Resistance
Measuring range	0 ... 20 M Ω
Resolution	0,01 M Ω
Accuracy	±(1.0% +5 digits)

General technical data
Measuring functions	MAX, HOLD, Continuity test

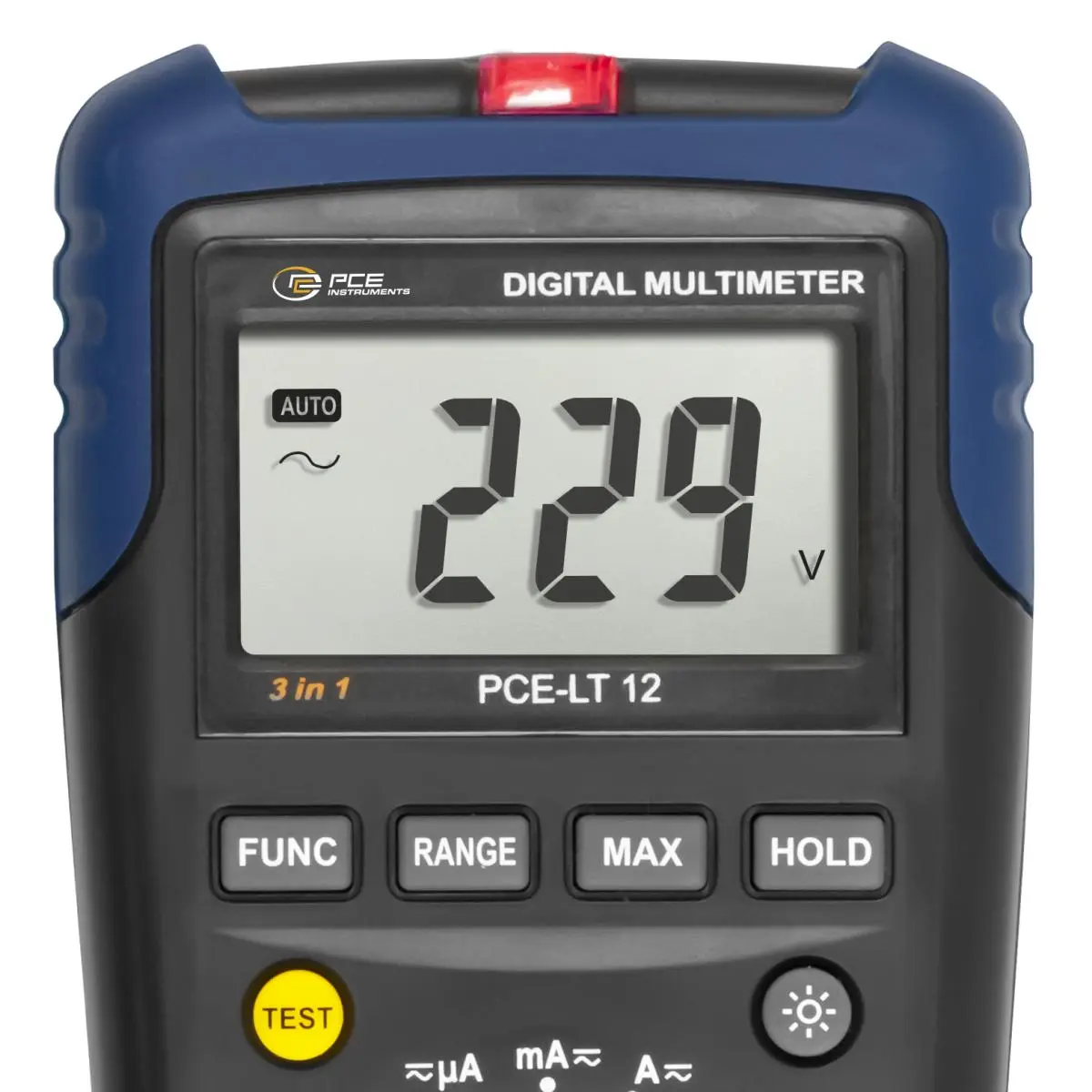

Display type	LCD with backlight
Display size	2,4 in
Automatic power-off	15 min
Fuse(s)	F10A / 500V, F200mA/1000A
Measuring range selection	Automatic, Manual
Diode test	Displays the forward voltage.
max. input current	µA: 2000 µA mA: 200 mA A: 10 A
Max. input voltage	750V AC 1000V DC
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	2 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 40 °C , 0 ... 80 % RH
Storage conditions	-10 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	190 x 90 x 53 mm
Other dimensions	Receiver: L 240 x W 43 x H 24 mm
Weight	370 g
Other weights	Receiver: 70 g
