The Cable Detector is a portable testing device for diagnosing faults in network and coaxial cables and is used for the rapid inspection of structured cabling. The Cable Detector supports shielded and unshielded twisted-pair cables of categories Cat 3, Cat 5, Cat 5e, Cat 6, Cat 6A, Cat 7, Cat 7A, as well as coaxial cables, such as those used in TV, antenna, and surveillance systems.

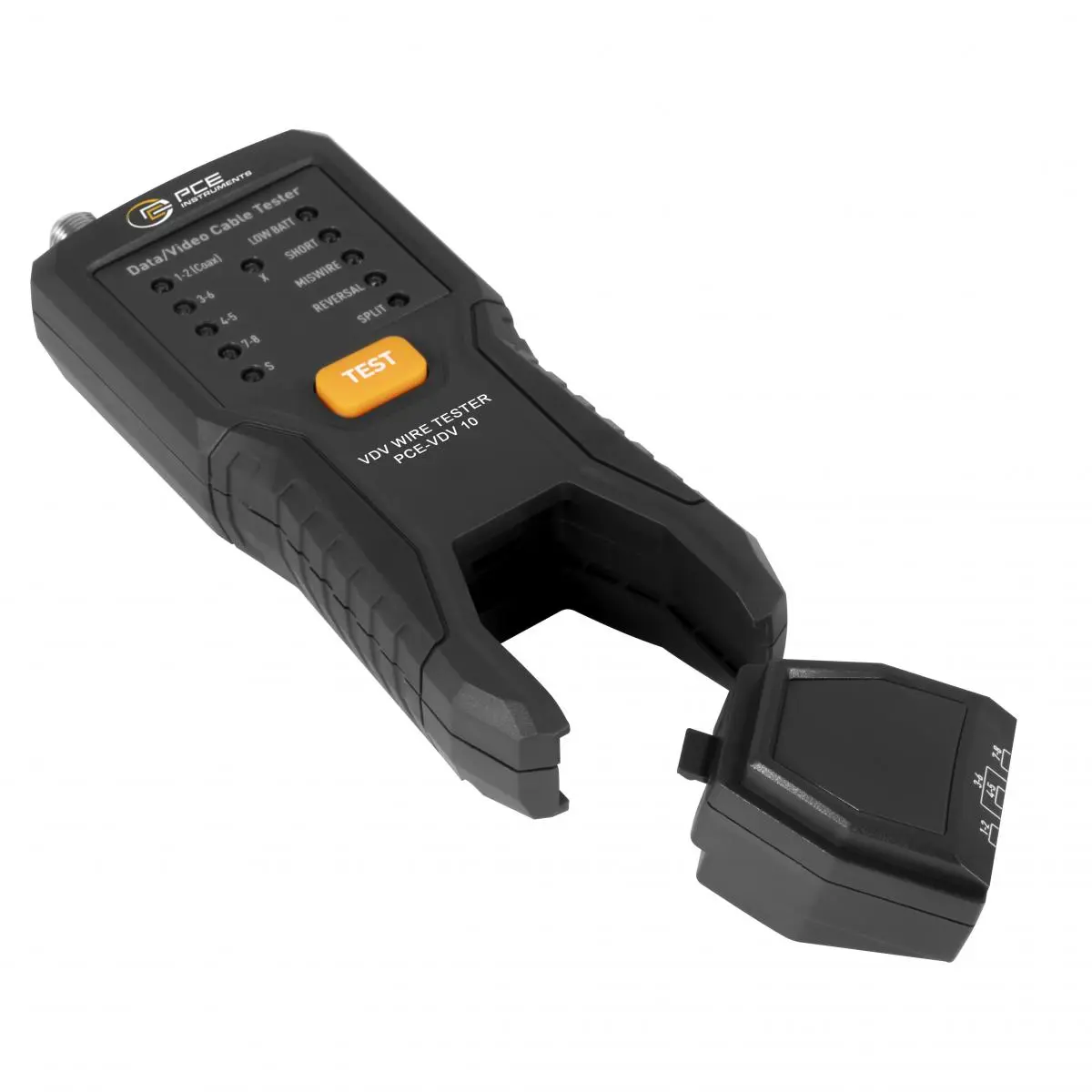

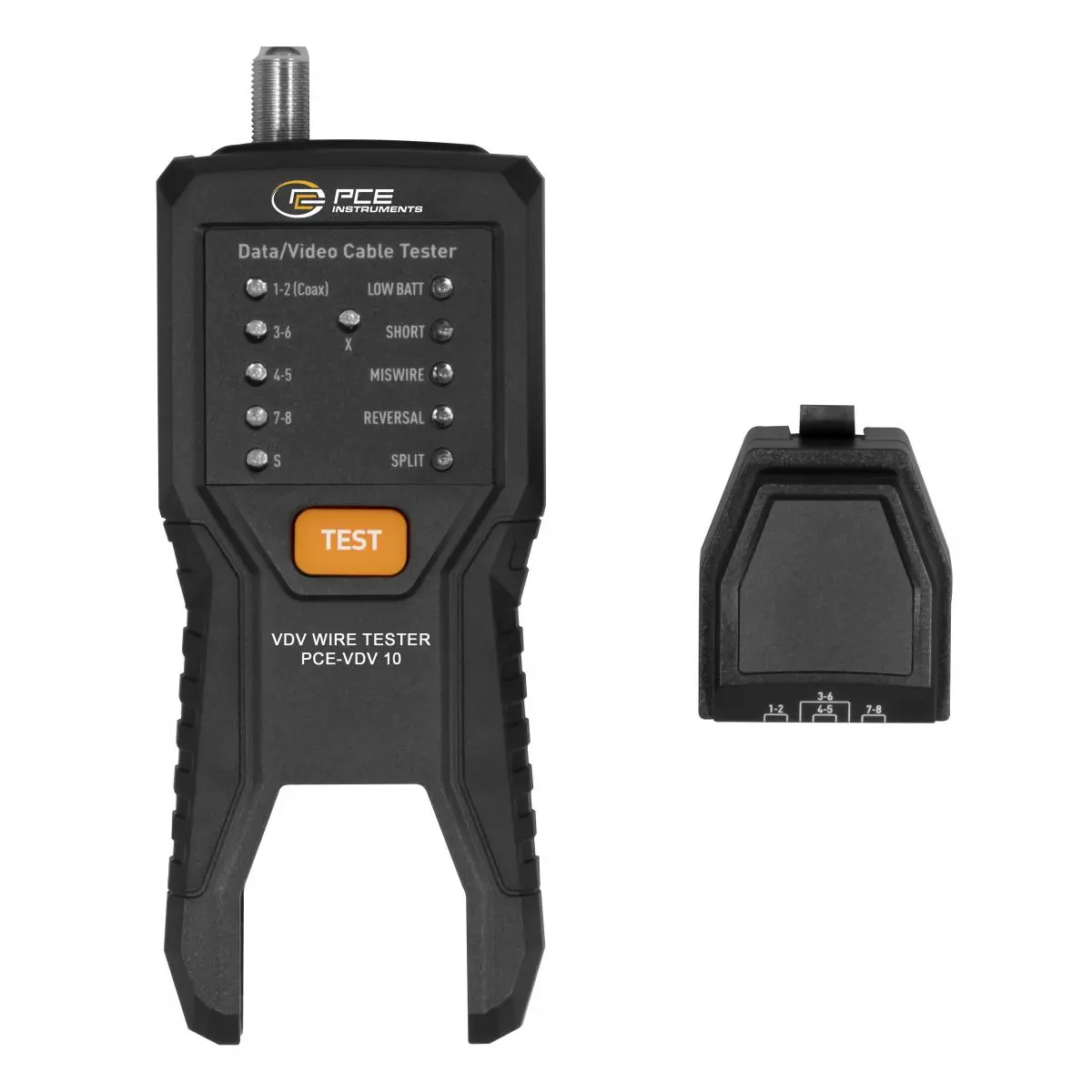

Testing is carried out using a two-part system consisting of a main unit and a remote unit, which also allows permanently installed cables to be tested reliably. The most important test procedures include continuity testing of the conductors (pins 1–8), wiring testing to check the correct assignment of the wire pairs, and the detection of short circuits, wiring faults, and split-pair faults. In addition, the shielding of shielded cables is checked. The test range covers cable lengths of up to 305 m, whilst the minimum cable length for split-pair detection is approximately 0.5 m.

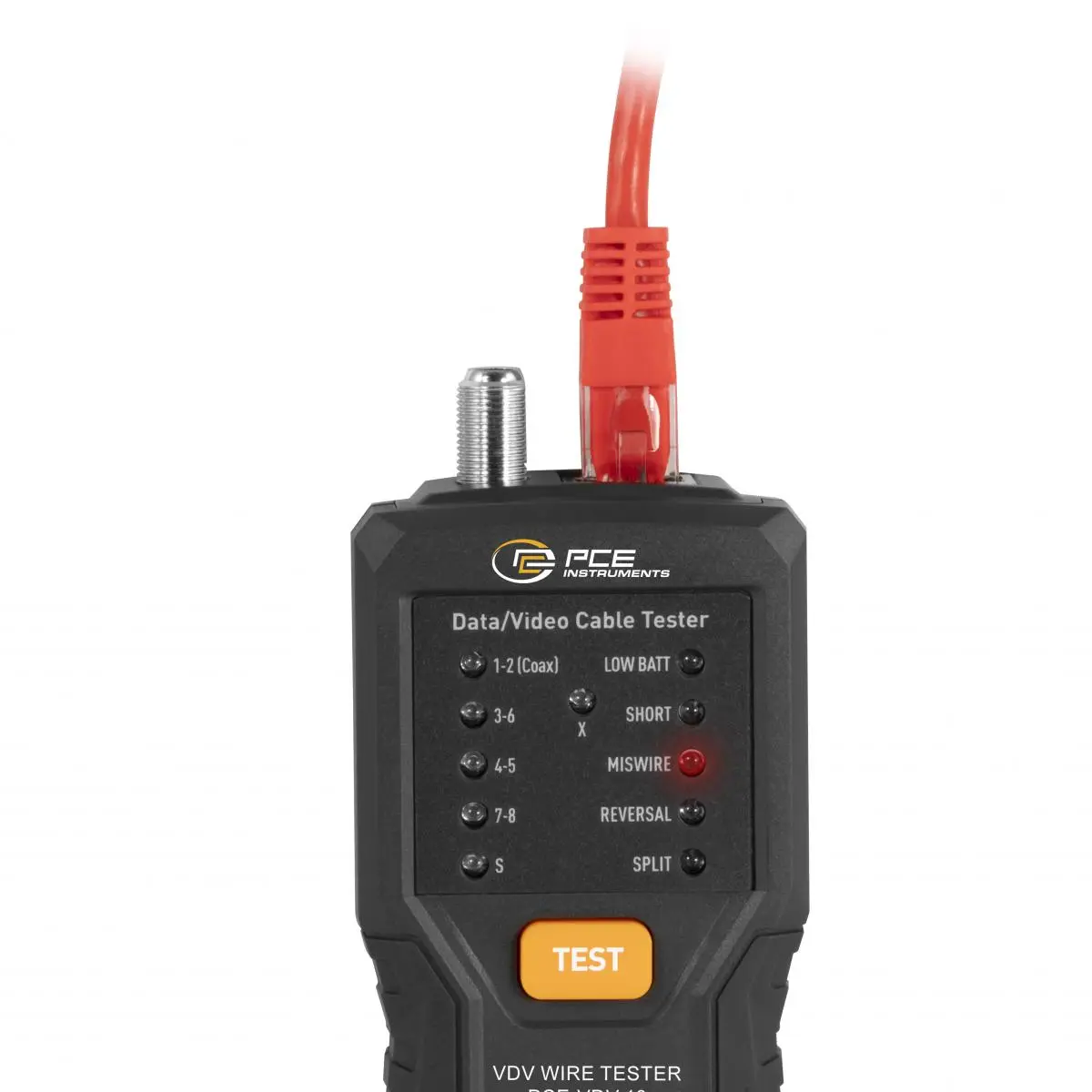

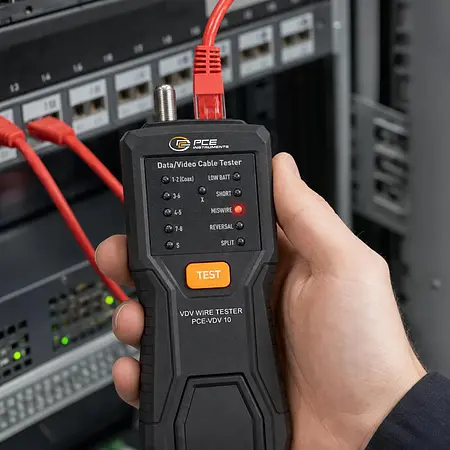

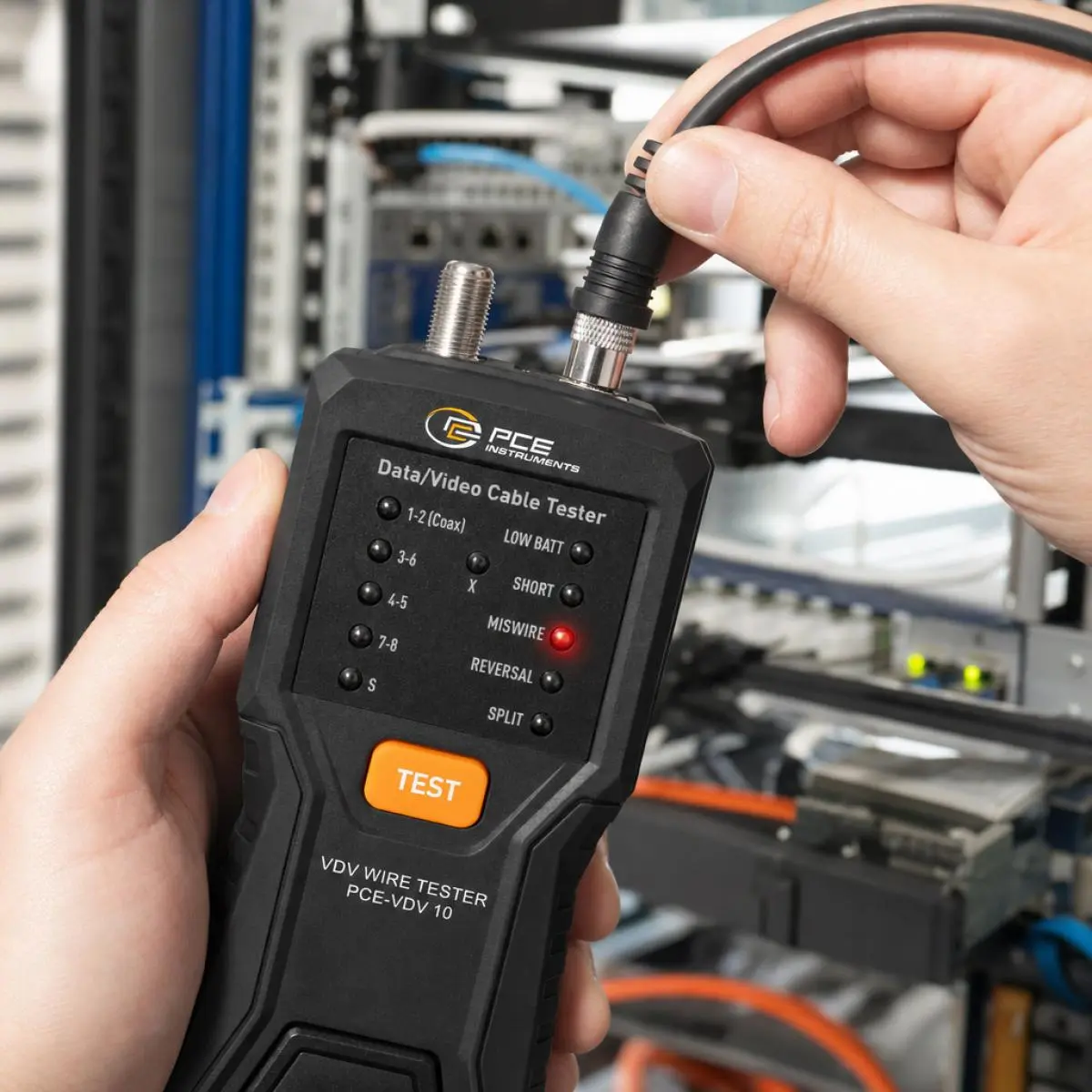

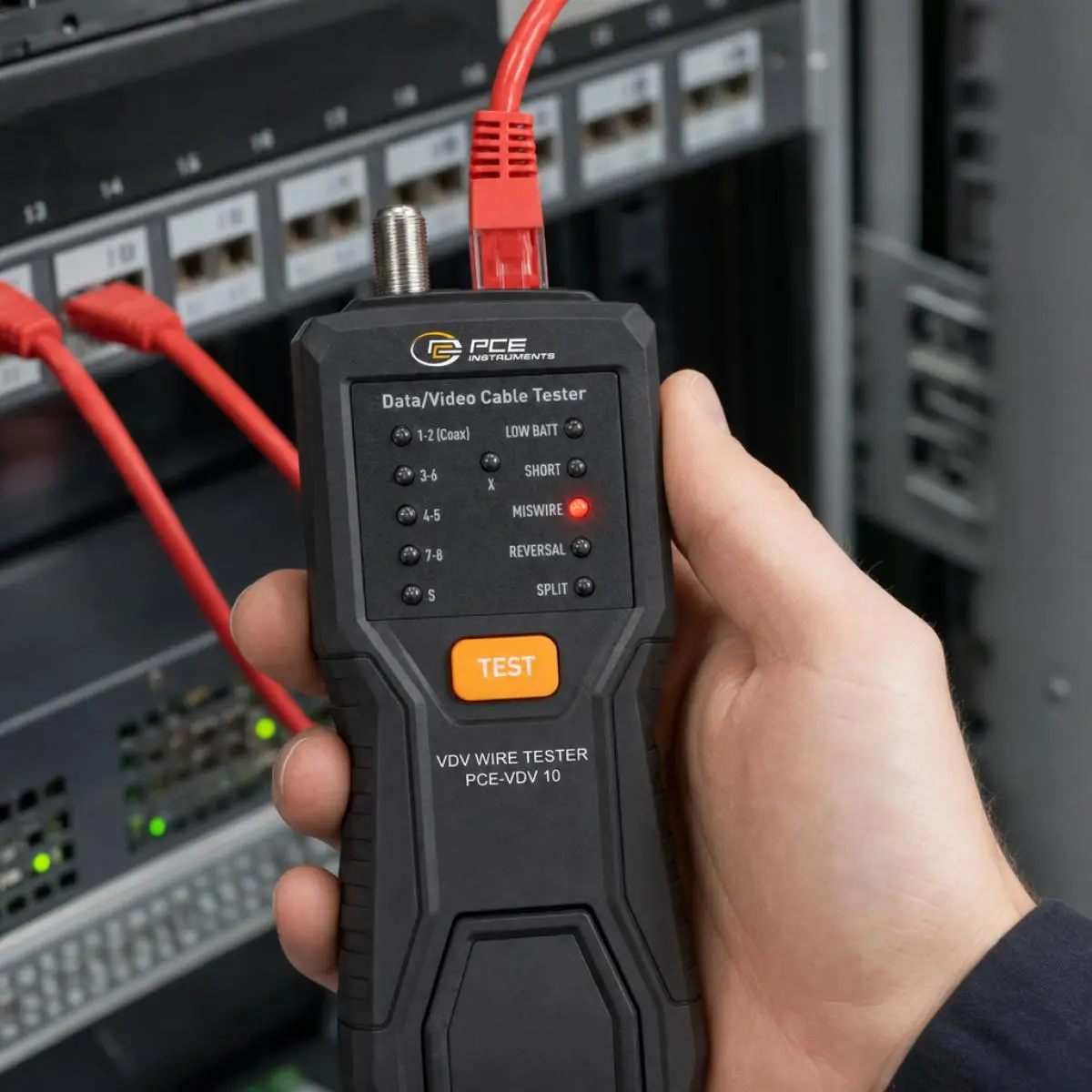

Our Cable Detector operates using test signals transmitted between the main unit and the remote unit. The results are displayed via LED indicators. Steady LEDs indicate correct wiring, whilst flashing LEDs indicate faults in the respective wire pairs. Additional status LEDs indicate the type of fault, such as short circuit, miswiring, reversal, or split pair.

The Cable Detector is used in network technology, building cabling, and in IT and communications installations, and is designed for electricians, network technicians, and service technicians to quickly test cable runs.
