Description

The PCE-CL 20 is a cable detector or locator used to detect live and voltage-free electrical wires. This cable detector also can be used to locate metallic and non-metallic gas or water pipes, identify short circuits, and follow lines inside walls or under flooring.

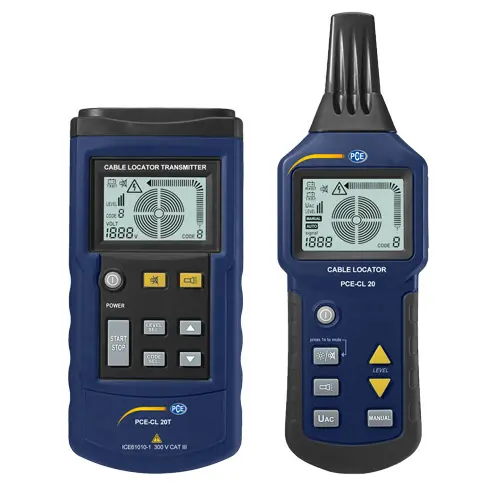

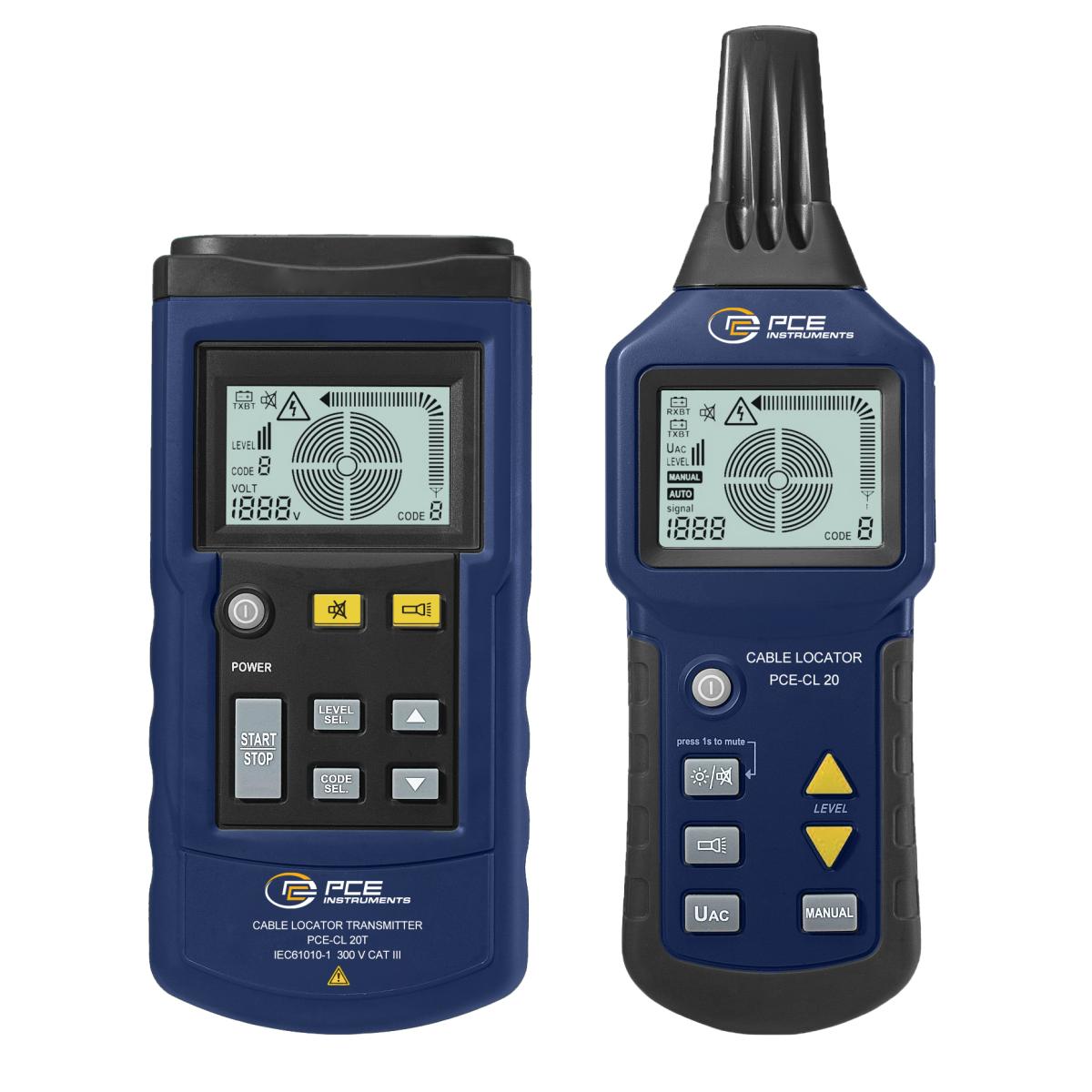

The cable detector consists of two individual units: a signal generator (or transmitter) and a receiver. Both units are equipped with bright LED lights for use in dark and dimly lit spaces. In addition, the receiver has a backlit LCD screen.

Highlights

- Output signal: 125 kHz

- Compatible with one- or two-pole circuits

- Automatic, manual and UAC measuring modes

- Locates hidden cables, wires or pipes

- Helps identify short circuits and fuses

- Includes alligator clips, measuring tips, test leads and ground rod

Specification

General technical data
Outputs	125 kHz
Display type	LCD
Display size	2,4 Inch
Safety standard	CAT III 300V
Fuse(s)	F 0.5 A 500V, 6.3 x 32 mm
Weights	Receiver: 260 g
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 40 °C , 0 ... 80 % RH
Storage conditions	-20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	190 x 89 x 42 mm
Weight	360 g
