Anemometer / Anemometers for all applications PCE-WS CR

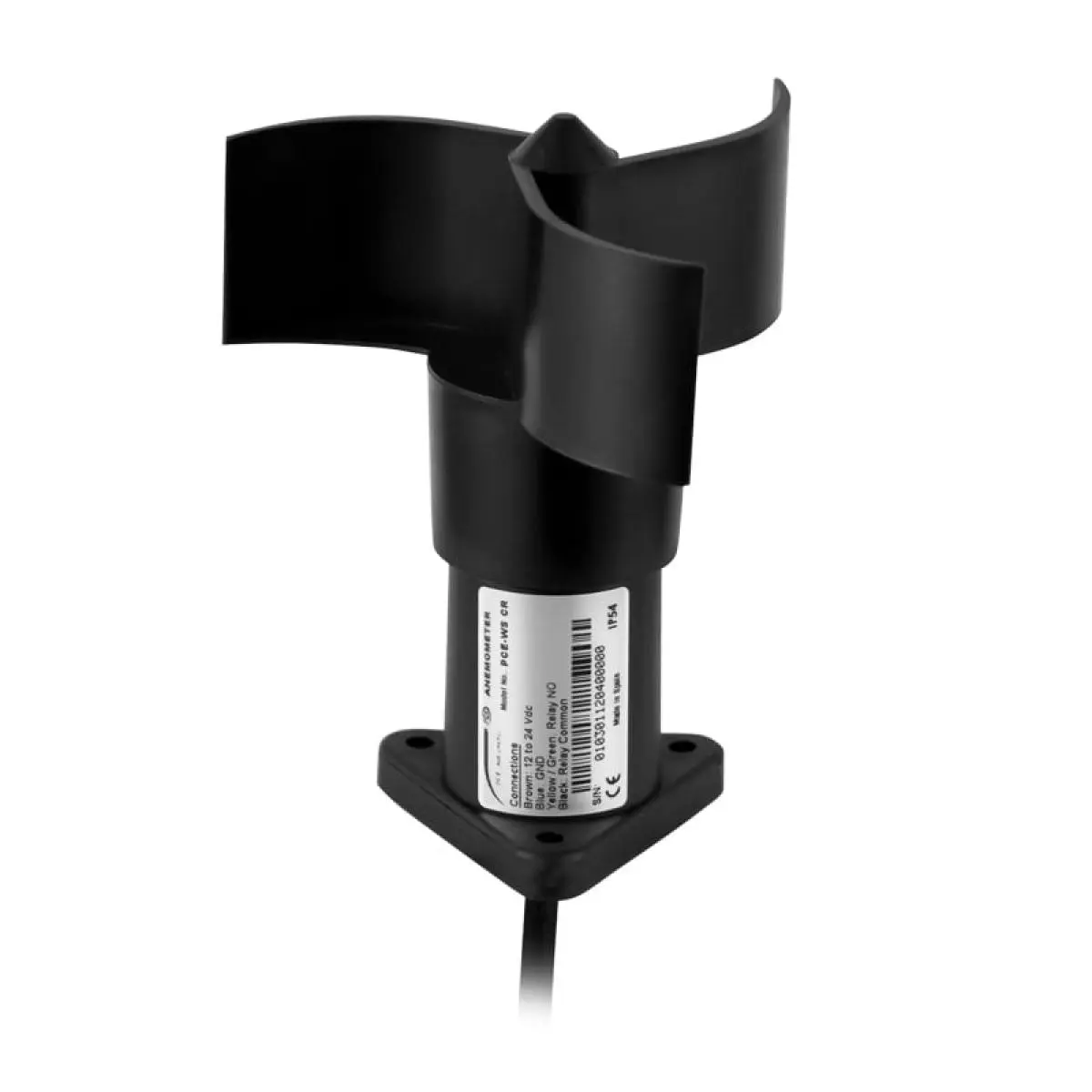

Anemometer PCE-WS CR

Order no.: PCE-WS CR
GTIN (EAN): 4250348722645

AED 1,486.00
AED 1,560.30
price ex. (customs / clearance)
:
4250348722645
PCE-WS CR
Delivery time:1-2 working days

Description

Robust Anemometer for fixed installation / various output signals /
for wind warning systems, building services and building automation


The anemometer impresses with its compact design and various output signals. The anemometer can be used for applications in warning technology, building automation and home technology. Depending on the anemometer, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The anemometer is designed as a star, so that operation independent of the wind direction is guaranteed.

The anemometer is made of robust plastic and is therefore resistant to rust and corrosion. The anemometer is also protected to IP 54. The design of the anemometer also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The anemometer has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the anemometer is optionally available.

Highlights

- Robust PA plastic housing
- IP 54 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m/s

Specification

Speed
Measuring range  0,8 ... 4 m/s
Resolution  0.1 m/s
Accuracy  ±0.27 m/s

Speed
Measuring range  4 ... 50 m/s
Resolution  0.1 m/s
Accuracy  ±3%

General technical data
Outputs  Adjustable relay

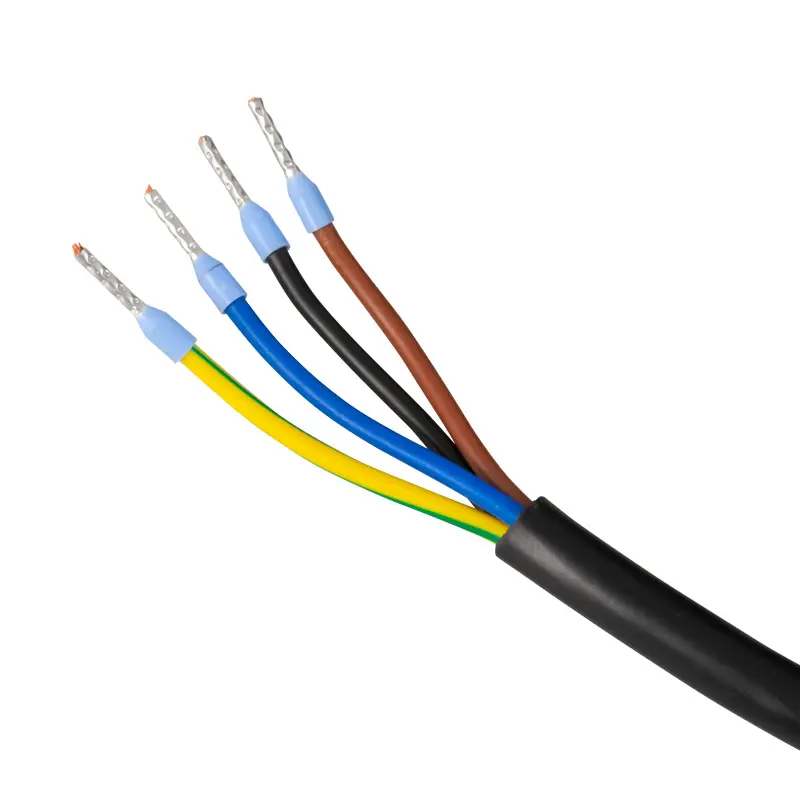

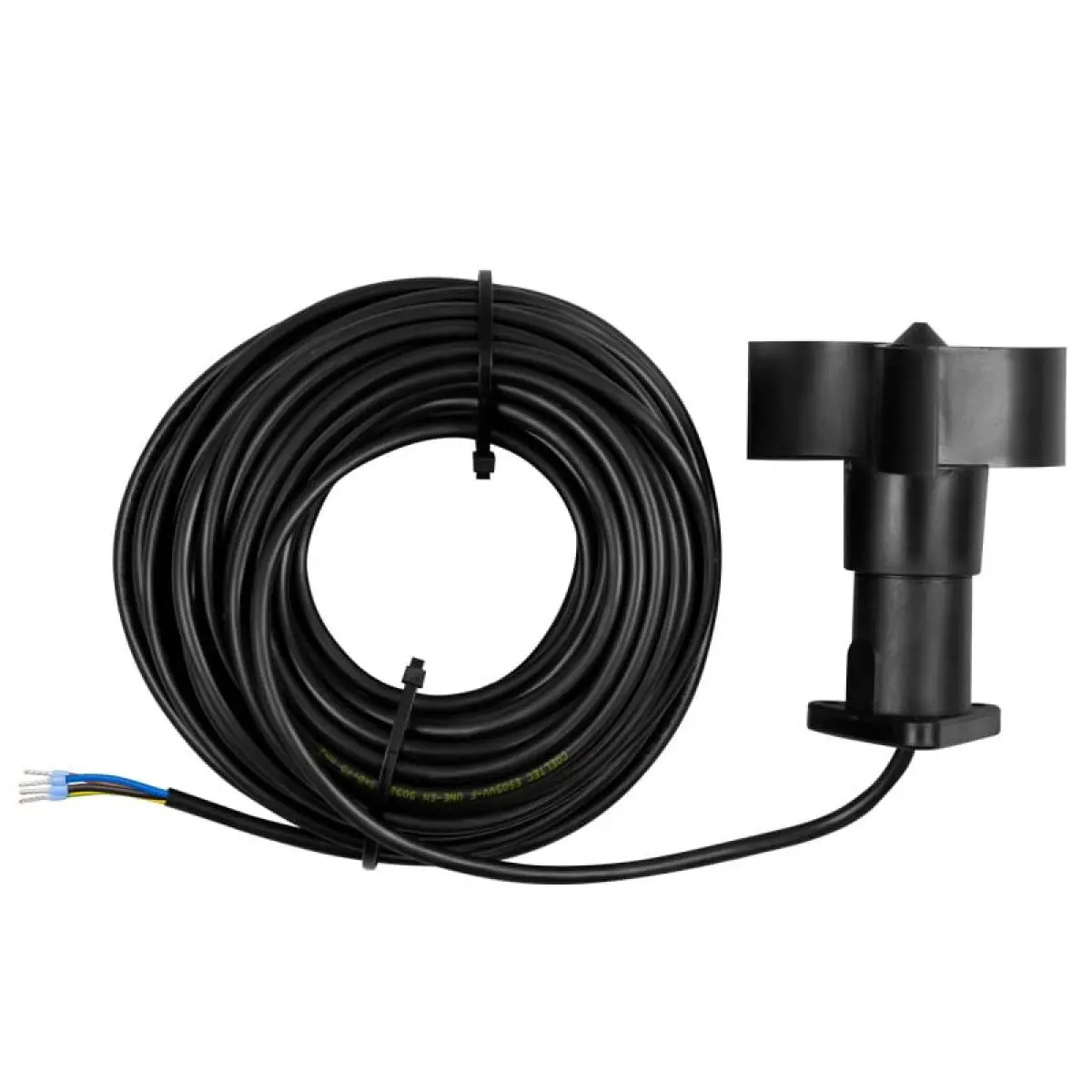

Cable length  20 m
maximum wind speed  50 m/s
Protection class (device)  IP54
Power supply  12 ... 24 V DC
Operating conditions  -20 ... 80 °C , 0 ... 95 % RH
Storage conditions  -20 ... 80 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  139 x 123 x 123 mm
Weight  160 g

Delivery Scope

1 x Anemometer / Anemometers for all applications PCE-WS CR
1 x User manual
