Air Quality Meter PCE-THD 50-ICA

[zoom]

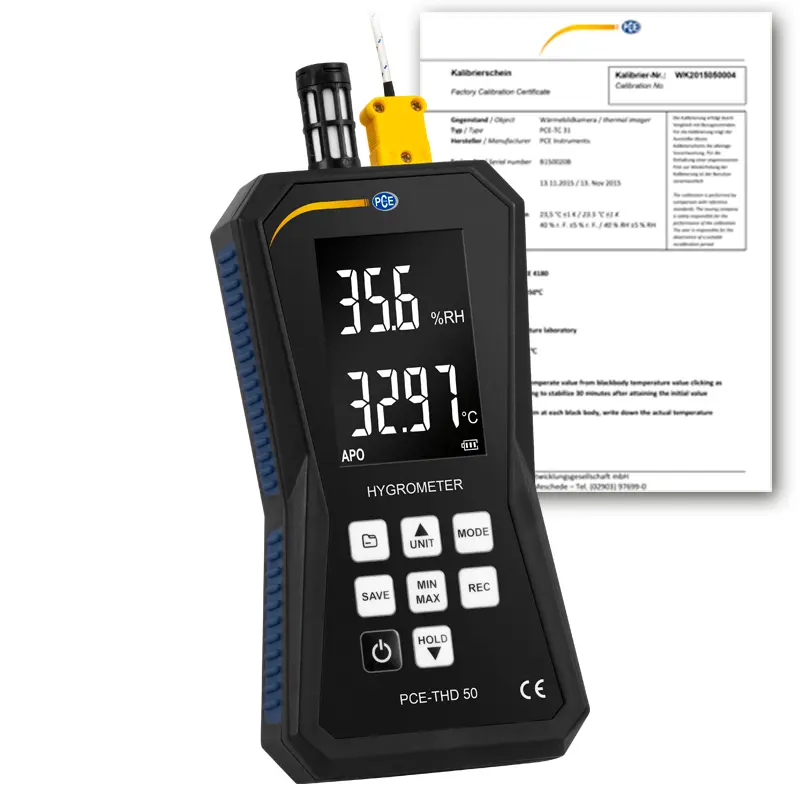

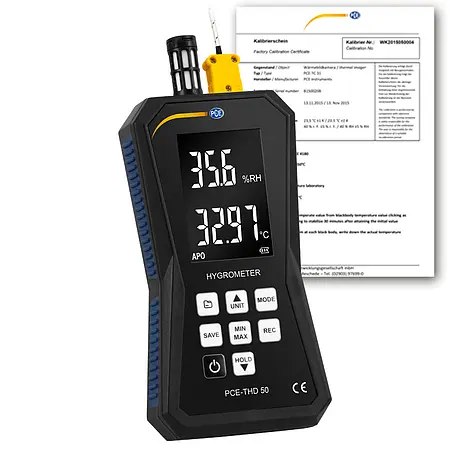

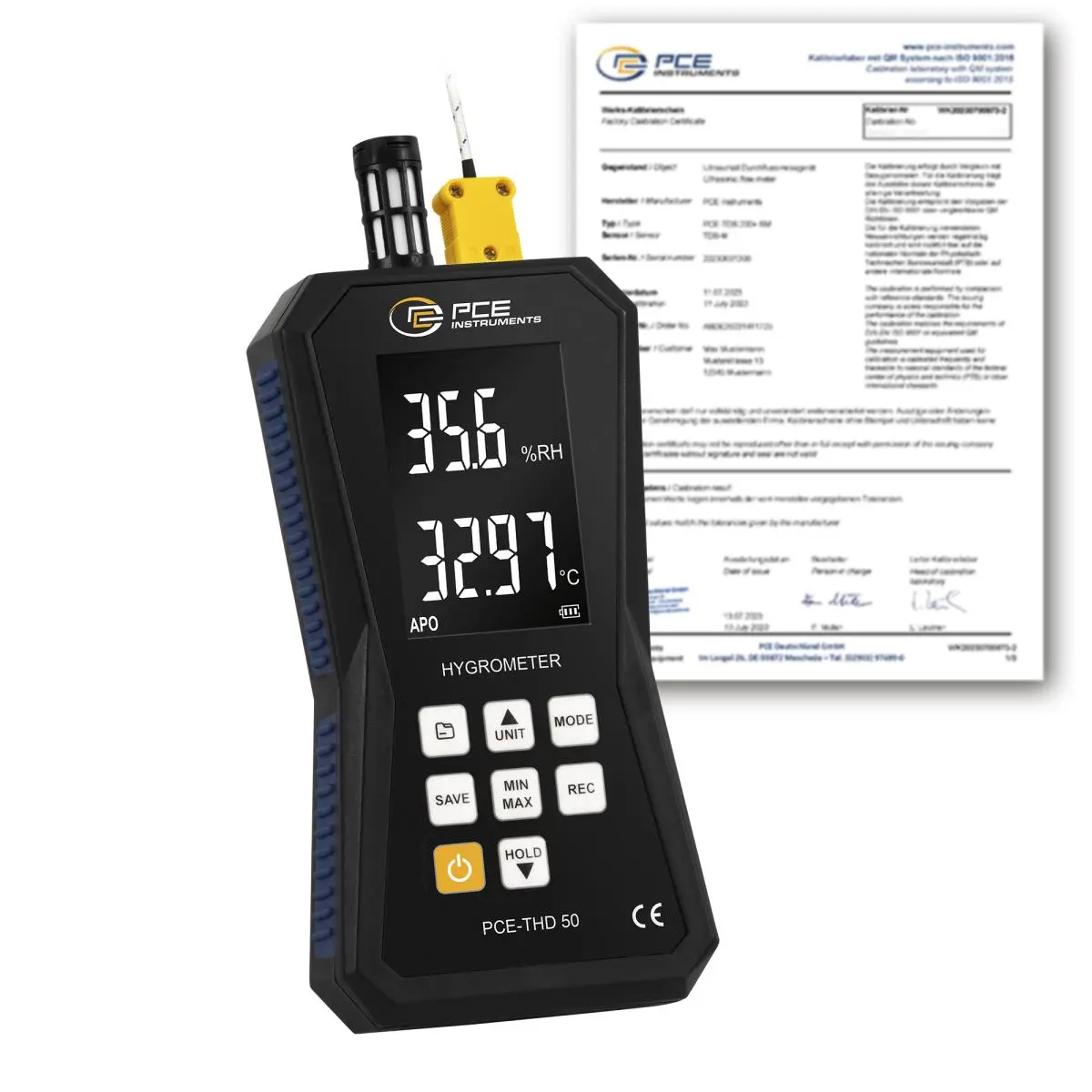

Air Quality Meter PCE-THD 50-ICA incl. ISO Calibration Certificate

Order no.: PCE-THD 50-ICA

GTIN (EAN): 4250348729583

Accessory

High Temperature Sensor TF-514 K-Type

AED 2,116.00

Universal bag PCE-BAG M for measuring devices

AED 69.00

AGL-90 Compensation / Thermocouple Extension Cable 90 °C (linear meter)

AED 16.00

ISO Calibration Certificate for Temperature and Humidity

AED 714.87

High Temperature Sensor TF-104B (extra long) K-Type

AED 455.00

Screw-on Sensor TF-524 K-Type

AED 207.00

Screw-in Sensor TF-119 K-Type

AED 667.00

Magnetic Surface Sensor TF-513 K-Type

AED 391.00

Surface Sensor TF-509 (self-adhesive) K-Type

AED 216.00

HT Surface Sensor TF-110A K-Type

AED 368.00

Crocodile Clip Sensor TF-109 K-Type

AED 184.00

Temperature Sensor TF-101 K-Type

AED 312.00

AGL-400 Compensation / Thermocouple Extension Cable 400 °C (lfm)

AGL-400 Compensation / Thermocouple Extension Cable 400 °C (linear meter)

AED 17.00

AGL-260 Compensation / Thermocouple Extension Cable 260 °C (linear meter)

AED 15.00

Penetration / Immersion Sensor TF-106 K-Type

AED 230.00

Flexible Temperature Sensor TF-500 (Type K)

Flexible Temperature Sensor TF-500 K-Type

AED 48.00

Description

Air quality meter with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate

The air quality meter is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The air quality meter can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the air quality meter. In addition, the dew point and wet bulb temperature is calculated and displayed by the air quality meter. In addition, any type K thermocouple can be connected to the air quality meter in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the air quality meter to the thermocouple.

Measured values can be recorded with the data logger function of the air quality meter. The large memory of 32,000 measuring points in the air quality meter allows recording of measured values over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the air quality meter and the free software. The data logged by the air quality meter can be exported in CSV file format for further processing.

A 3.7 V Li-ion battery is installed in the air quality meter to enable mobile use. This battery can be recharged via the micro-USB interface on the air quality meter.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F

- Temperature, humidity, dew point

- Backlit LC display

- Micro USB interface

- Rechargeable battery

- Data memory for 32,000 readings

- Wet bulb temperature

- Optionally with ISO calibration certificate

- incl. ISO-Calibration Certificate

Specification

Wet bulb temperature
Measuring range	-20 ... +60 °C
Resolution	0,1 °C
Accuracy	±0.5°C @ 0 … 45°C / ±1.0°C in other ranges

Wet bulb temperature
Measuring range	-4 ... +140 °F
Resolution	0,018 °F
Accuracy	±1.0°F @ 32 … 113°F, ±2.0°F in other ranges

Temperature K-type
Measuring range	-100 ... +1372 °C
Resolution	0,01 °C
Accuracy	±(1% ±1°C / ±1.8°F)

Temperature K-type
Measuring range	-148 ... +2501 °F
Resolution	0,018 °F
Accuracy	±(1% ±1.8°F)

Dew point
Measuring range	-50 ... +60 °C
Resolution	0,1 °C
Accuracy	±(1% ±1°C / 1.8°F)

Dew point
Measuring range	58 ... 140 °F
Resolution	0,18 °F
Accuracy	1.8°F

Relative humidity
Measuring range	0 ... 100 %
Resolution	0,1 %
Accuracy	±2.2 per cent relative humidity (10 to 90 per cent relative humidity) / ±3.2 per cent relative humidity (<10, >90 per cent relative humidity) @ 23°C (73.4 °F)

Temperature
Measuring range	-20 ... +60 °C
Resolution	0,01 °C
Accuracy	±0.5°C @ 0 … 45°C / ±1.0°C in other ranges

Temperature
Measuring range	-4 ... +140 °F
Resolution	0,018 °F
Accuracy	±1.0°F @ 32 … 113°F / ±2.0°F in other ranges

General technical data
Measuring functions	MIN, MAX, HOLD
Display type	LCD with backlight
Measuring rate	3 Hz
Storage medium	Internal memory
Storage capacity	32000 Measurements
Memory capacity (additional information)	99 measurement points can only be read on the measuring device, 32,000 measurement points can be read on a PC
Interface	Micro-USB
Response time	10 s
Automatic power-off	10 min
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	5 V DC
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion polymer battery
Capacity	2500 mAh
Operating conditions	0 ... 40 °C , 0 ... 80 % RH
Storage conditions	-10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	162 x 88 x 32 mm
Weight	248 g
