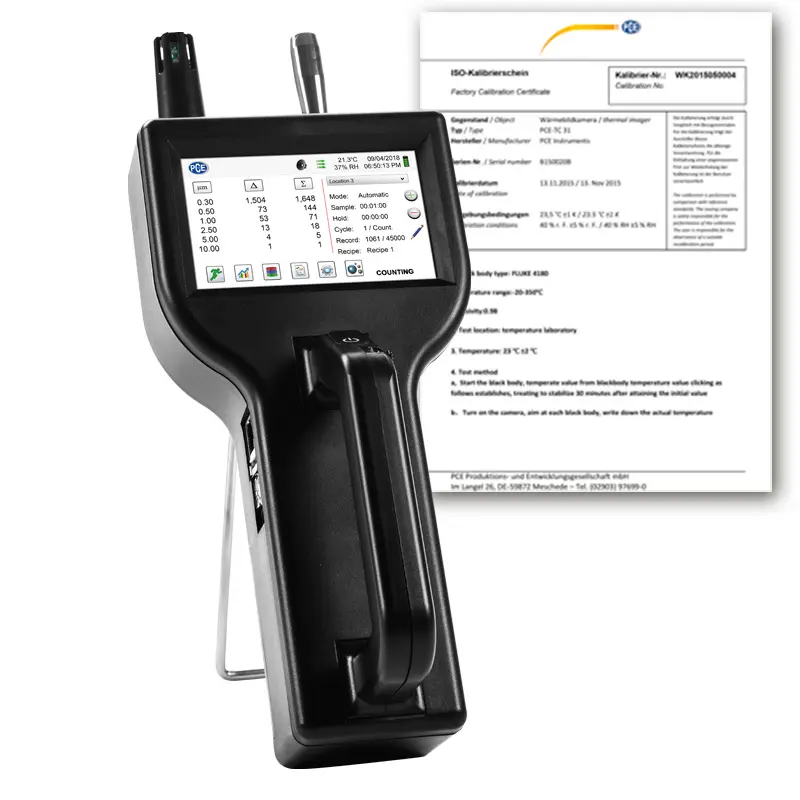

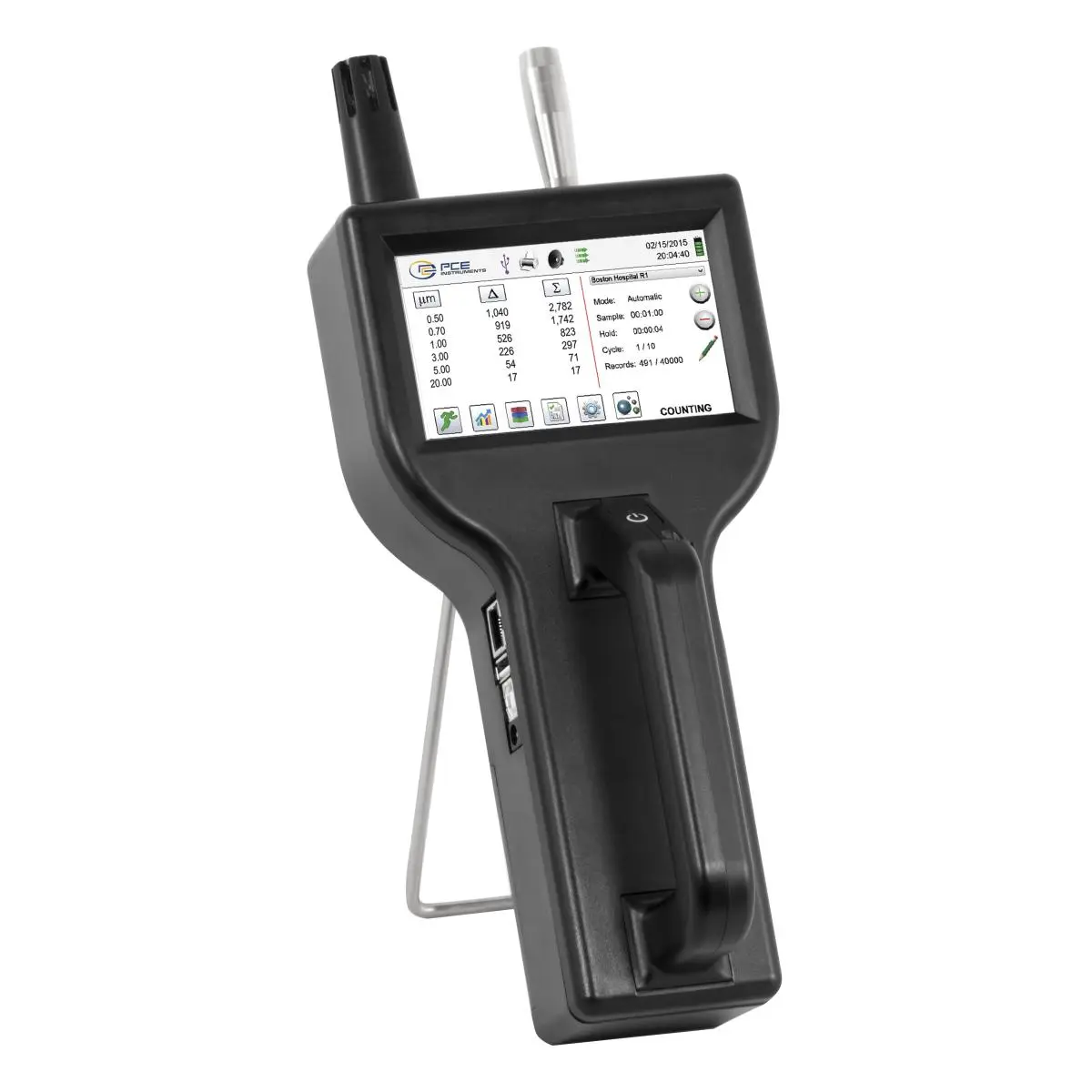

Particle Counter PCE-PQC 15EU Incl. Calibration Certificate

Air Quality Meter PCE-PQC 15EU Incl. Calibration Certificate

Order no.: PCE-PQC 15EU
GTIN (EAN): 4250348720382
AED 29,906.00
AED 31,401.30
price ex. (customs / clearance)
:
4250348720382
PCE-PQC 15EU
Delivery time:1-2 working days

Description

Air Quality Meter PCE-PQC 1xEU series incl. calibration certificate
Measurement of particle sizes up to 75 μm / Up to 6 parallel measuring channels / Internal memory / Reporting according to ISO 14644-1, EU GMP Annex I, FS 209E / Extrapolation of the mass concentration in μg / m³ / USB or (optional) Ethernet or (optional) Wifi connection

The particle counters of the PCE-PQC 1xEU series measure the concentration of particles such as dust, soot, pollens and many other aerosols in the air. To accurately determine the degree of pollution of the air, the particle counters were developed. Pollution is mainly generated by combustion, material processing, manufacturing, power generation, vehicle engine emissions and the construction industry. With the help of the PCE-PQC 1xEU series particle counters the exact amount of dirt particles in the air can be measured.

Of greater importance is the degree of pollution of the air with pathogenic particles such as soot, which are released by the industry and especially by diesel vehicles without special filtering in the air. Such dispersion particles are responsible inter alia for reduced visibility, the inhalation of toxic substances and thus reduced labor productivity. It has also been known for some time that the particles also make a not inconsiderable contribution to many medical diseases such as asthma, bronchitis, skin and lung diseases. The particle counters are designed for easy and quick use. The particle counters of the PCE-PQC 1xEU series operate in different modes (real-time, cumulative, differential, mass concentration, ...) and display the results on the display,

Highlights

- Internal memory
- Particle sizes up to 75 μm
- Color display
- Handy
- 6 measuring channels
- ISO 14644-1, EU GMP Annex I, FS 209E
- Mass concentration
- USB
- Incl. temperature and humidity sensor
- Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Specification

Particle
Measuring channel sizes  0.5, 1.0, 2.5, 5.0, 10, 30.0
Measuring range  0,5 ... 75 µm
Counting efficiency  50 % at 0.5 µm, 100 % at >0.75 µm according to JIS
Flow volume  2,83 l/min

Relative humidity
Measuring range  15 ... 90 %
Accuracy  ±2 % RH

Temperature
Measuring range  0 ... 50 °C
Accuracy  ±0.5 °C

General technical data

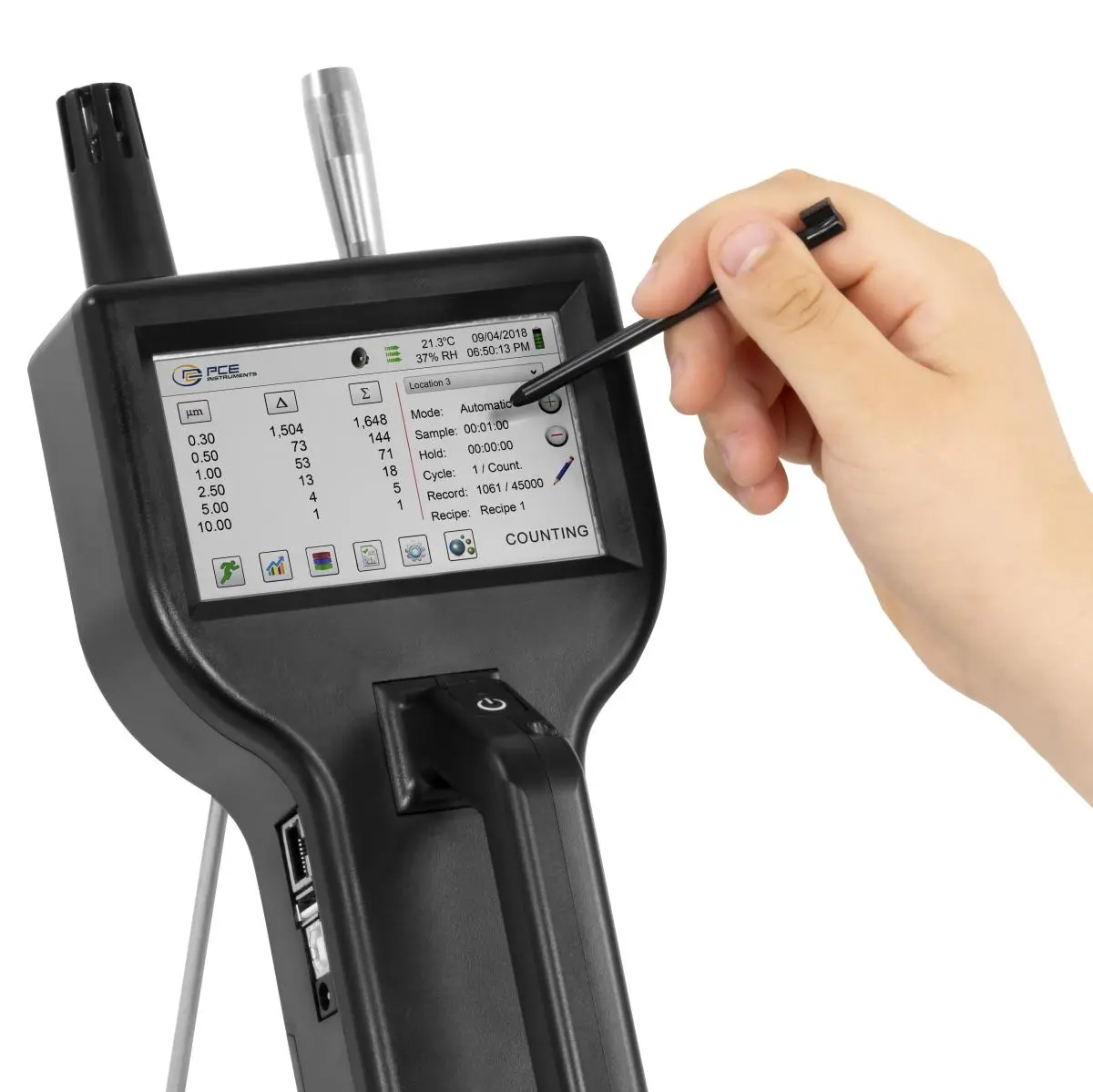

Display type  Colour touch display
Display size  4,3 Inch
Storage medium  Internal memory
Storage capacity  45000 Data records
Memory capacity (additional information)  Ring memory consisting of particle count, temperature and humidity, locations and times
Storage interval from  1 s
Storage interval to  99 min.

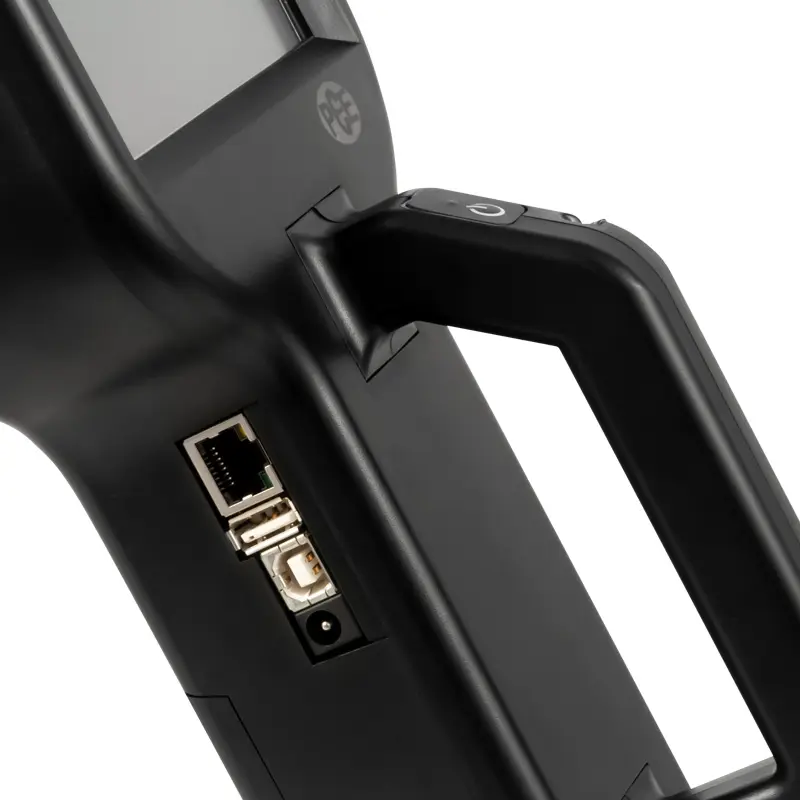

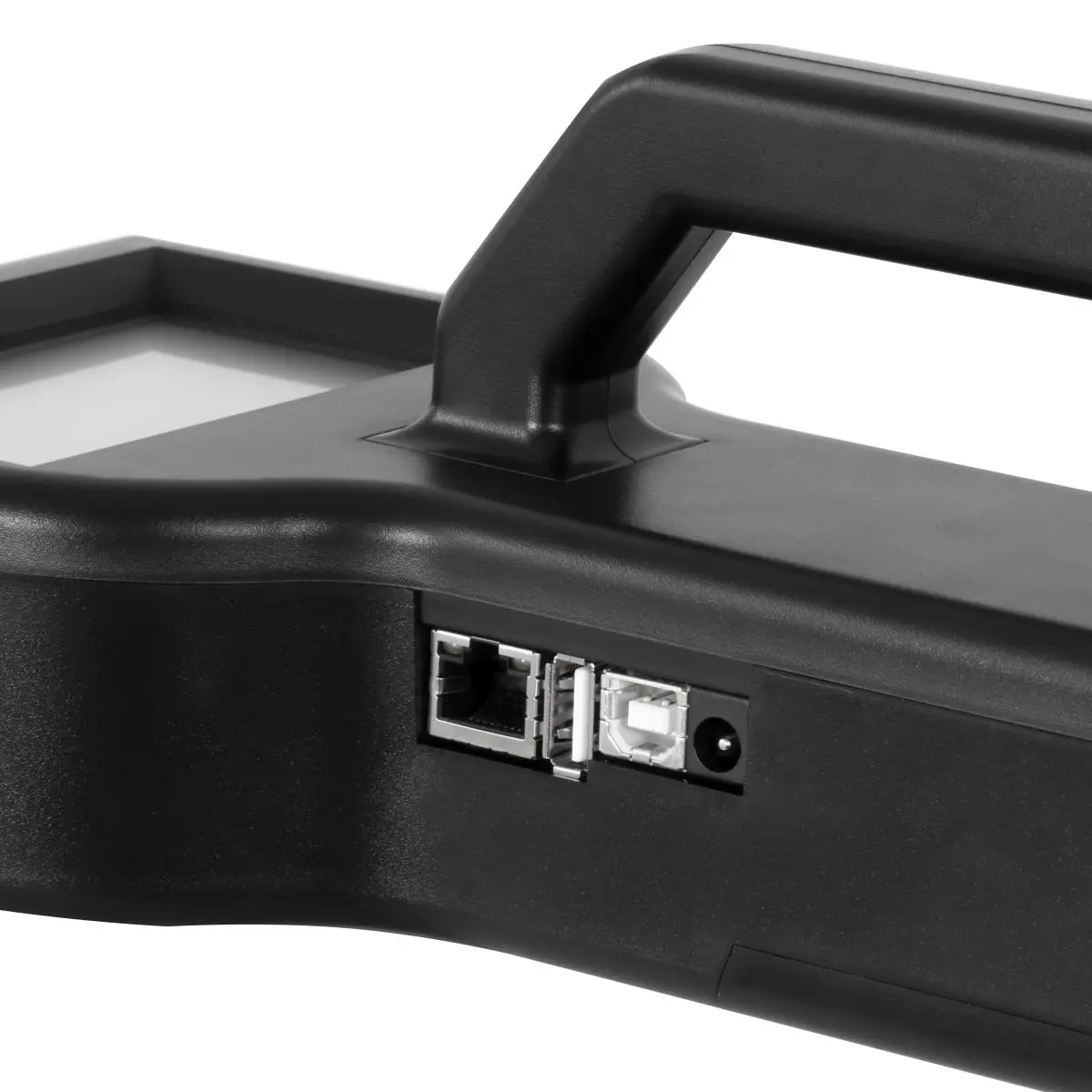

Interface  Ethernet, USB, USB-B
Standard(s)  ISO 21501-4, JIS B9921
Sensor  Temperature
Operating time  10 h
Menu language  English
Power supply  110 ... 240 V AC 50/60 Hz
Connector type  Device-europlug
(Rechargeable) battery  1 x 10,8 V internal , Lithium-ion battery
Capacity  5200 mAh
Operating conditions  5 ... 40 °C , 0 ... 95 % RH
Storage conditions  0 ... 50 °C , 0 ... 98 % RH
Dimensions ( L x W x H )  254 x 129 x 114 mm

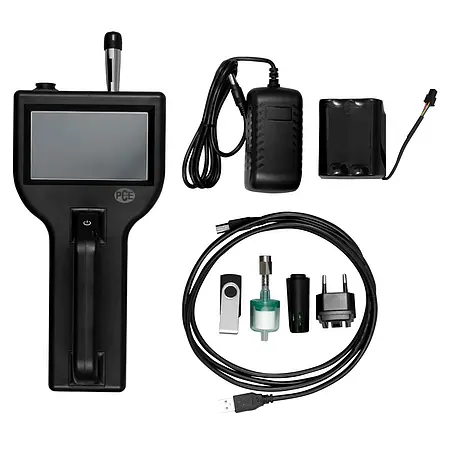

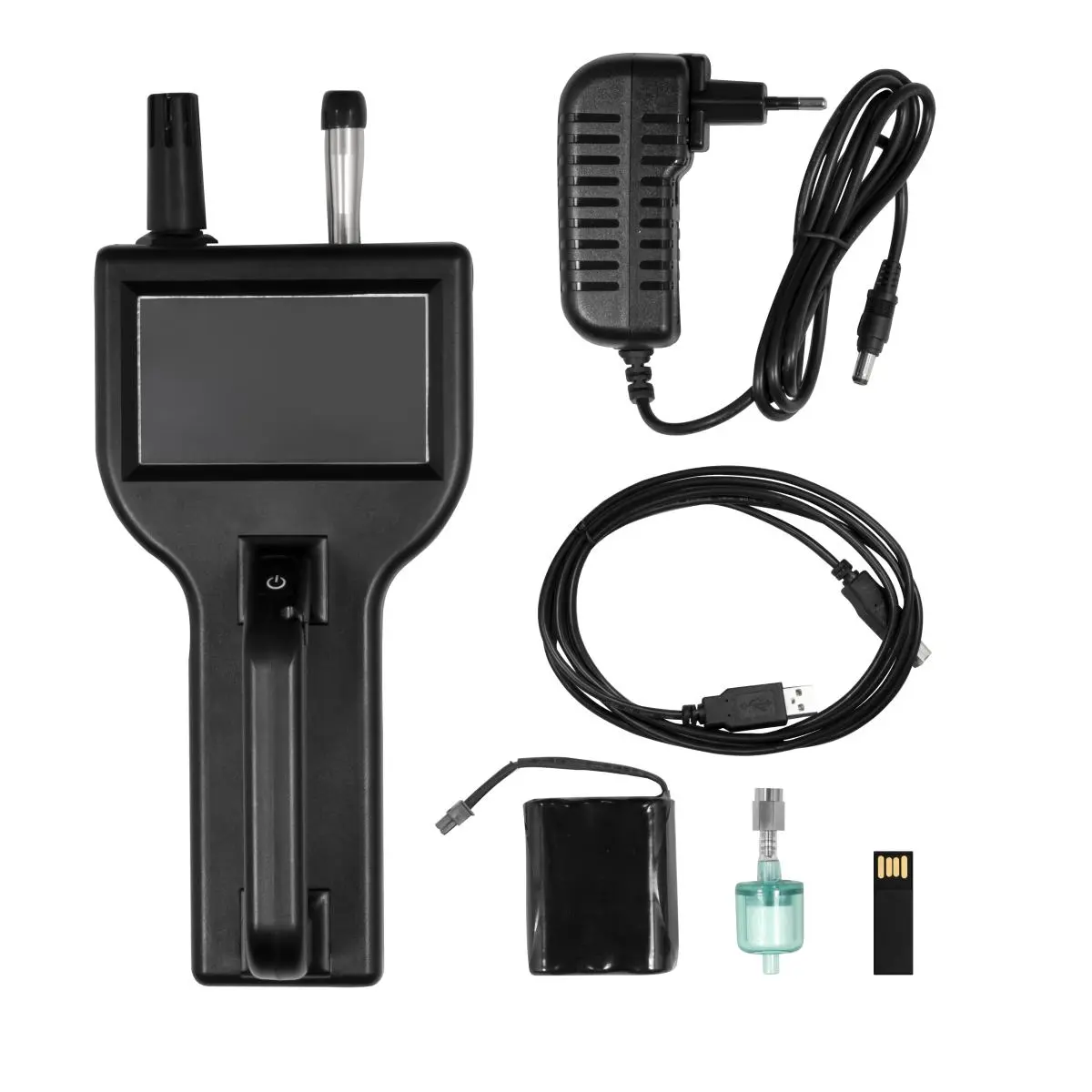

Delivery Scope

1 x Particle counter PCE-PQC 15EU

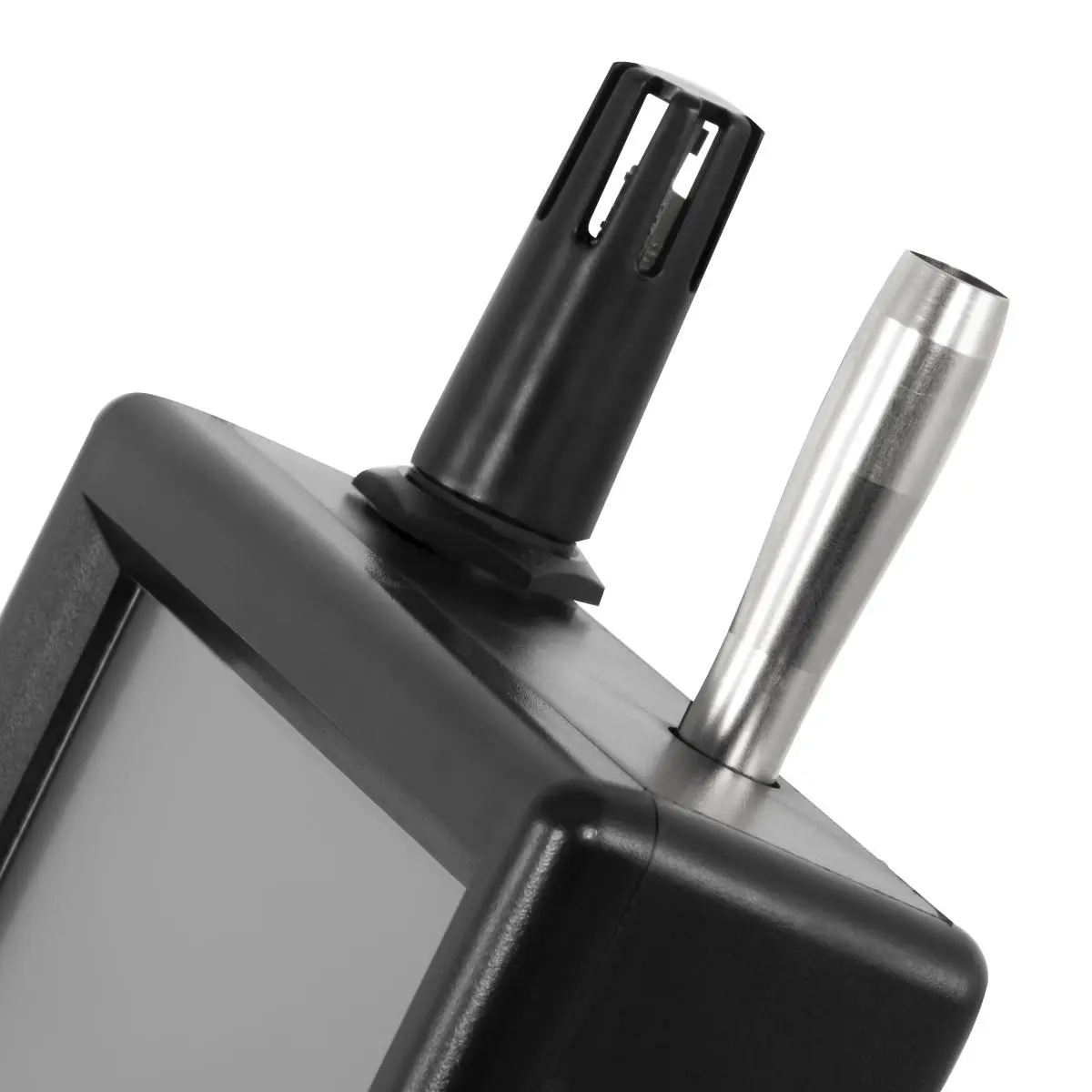

1 x Isokinetic probe
1 x Temperature and humidity sensor
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
