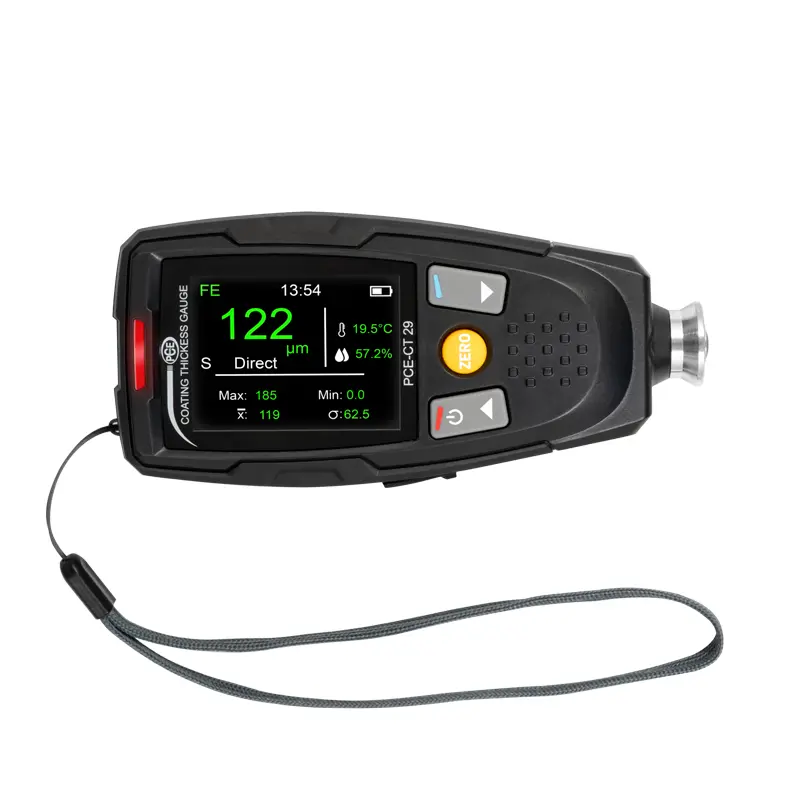

Paint Thickness Tester PCE-CT 29-ICA incl. iso calibration certificate

Order no.: PCE-CT 29-ICA

GTIN (EAN): 4250348730848

Accessory

ISO Calibration Certificate for Coating Thickness Meter

AED 796.00

Description

Paint Thickness Tester with a measuring range of 0 ... 2000 µm / Micro-USB /

statistics function / limit value alarm function / temperature and moisture measurement / V-groove

Software for transferring the measured values

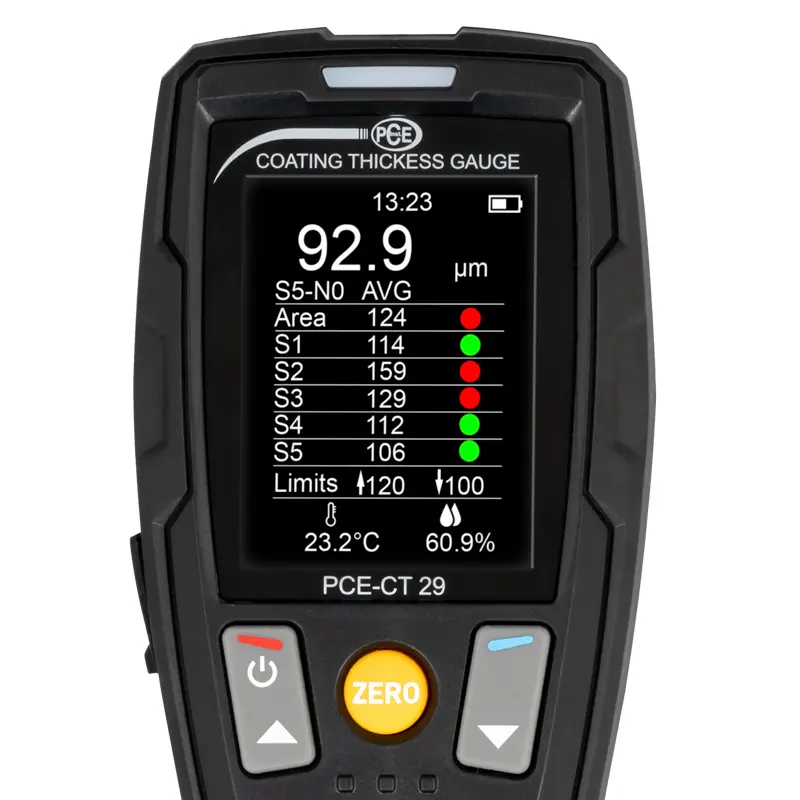

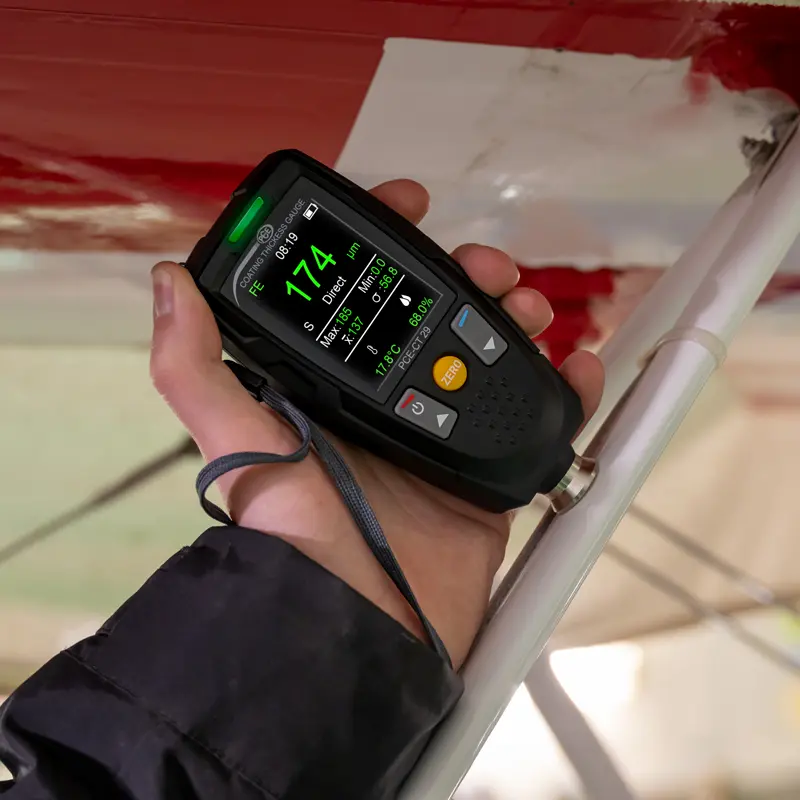

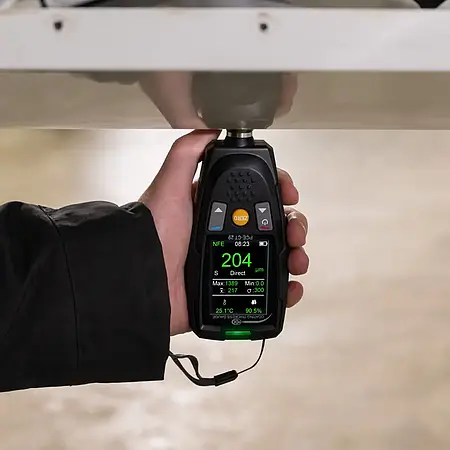

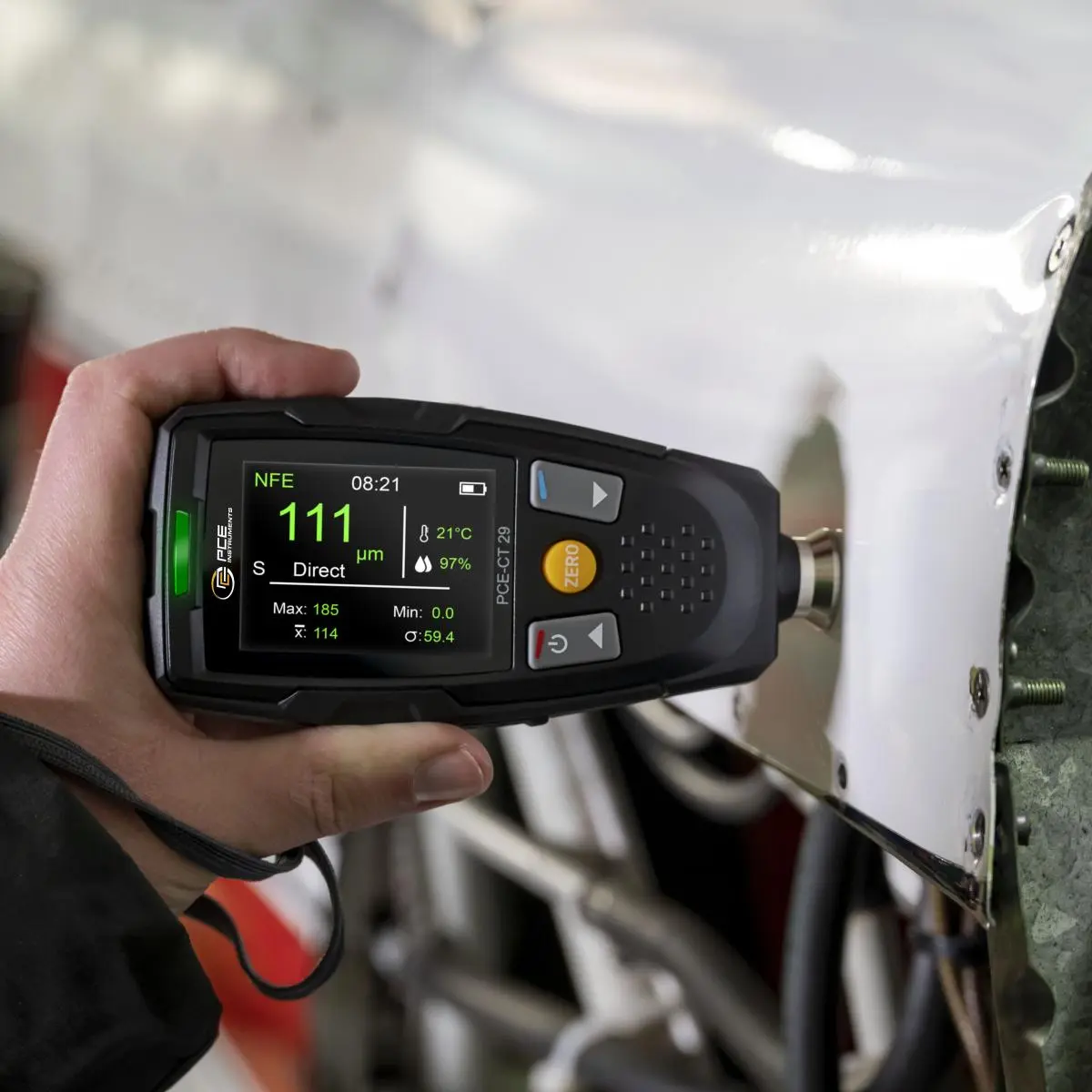

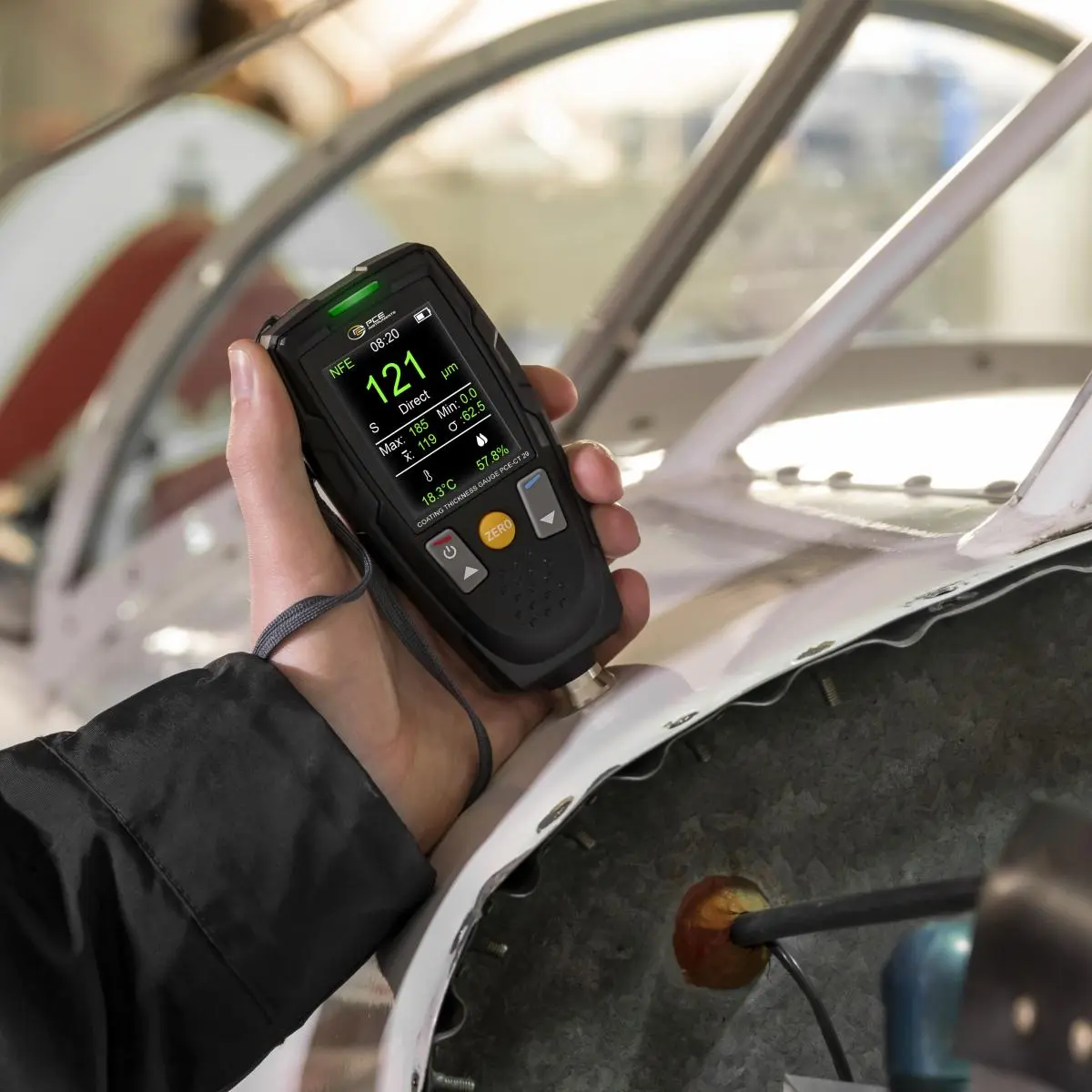

The Paint Thickness Tester has a measuring range of 0 ... 2000 µm. The Paint Thickness Tester can measure the coating thickness on ferrous (Fe) and non-ferrous (NFe) metals. For a better analysis of the measurements, the coating thickness gauge has a measuring function based on the SSPC standards. With this function, the corrosion protection of a coating can be checked with the Paint Thickness Tester.

The Group function stores the measured values directly on the Paint Thickness Tester. A memory of 50 groups with 50 measurements each is available on the Paint Thickness Tester. In each group, statistics are created for all measured values from the Paint Thickness Tester. All measurement data and statistics can be recalled after a measurement run on the Paint Thickness Tester.

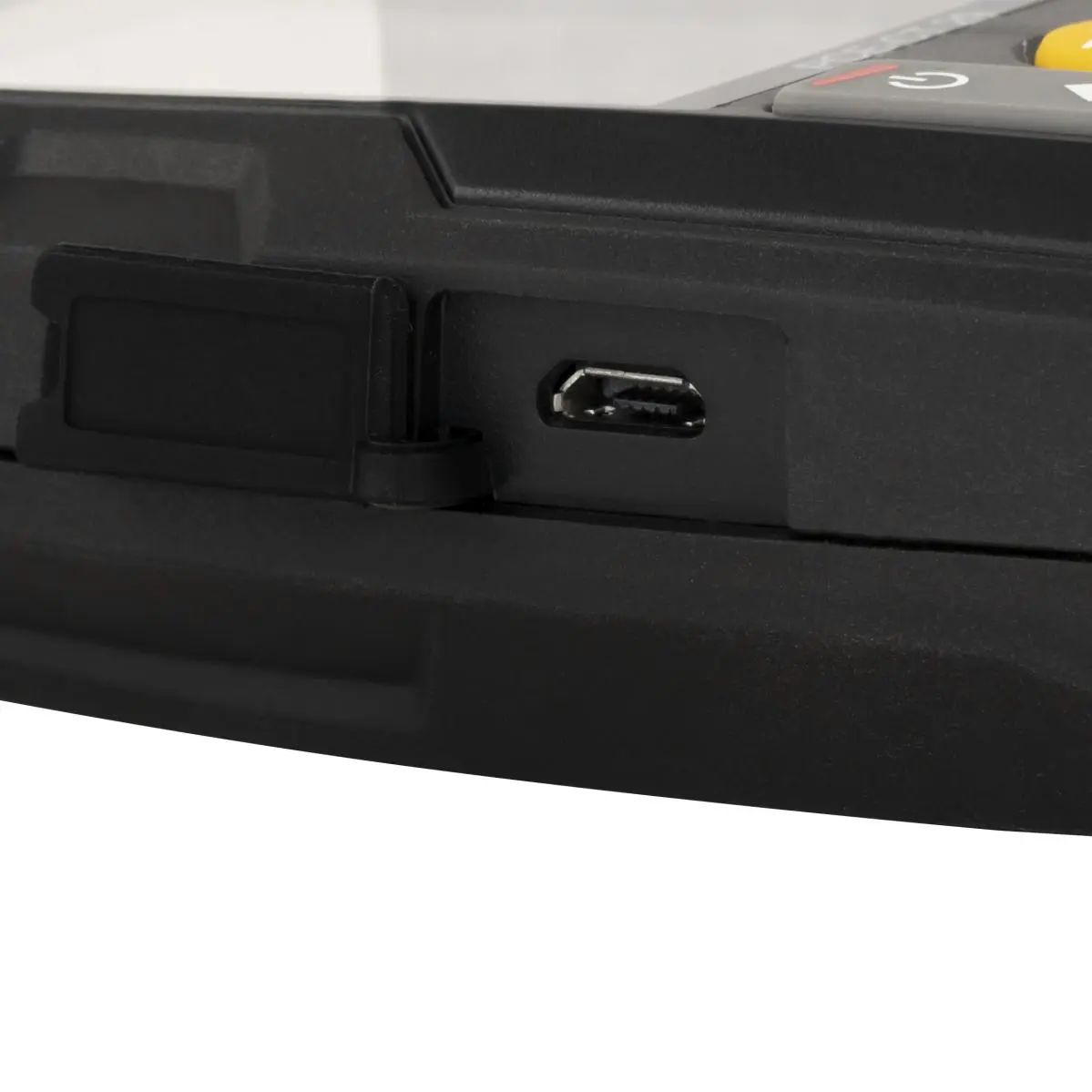

For further analysis of the measured values, the Paint Thickness Tester can be connected to a PC. The Paint Thickness Tester has a micro-USB interface for this purpose. The software can be used to transfer the measurement data from the Paint Thickness Tester to a PC. In addition, it is possible to carry out live measurements with the Paint Thickness Tester using the software. For further processing of the measured values from the Paint Thickness Tester, they can be exported in CSV and XLS format via the software.

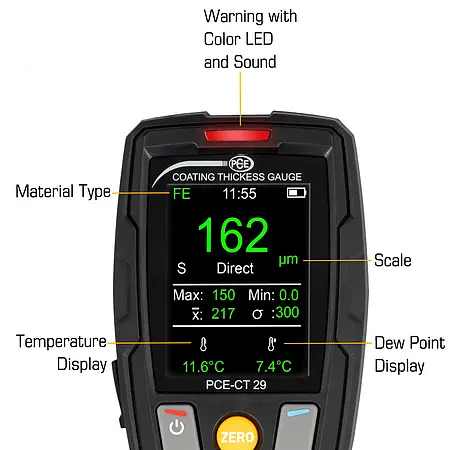

In addition to the coating thickness measurement, the Paint Thickness Tester can measure the temperature and humidity of the environment. Thus, the Paint Thickness Tester can be used to find out whether the climatic conditions are right to carry out further processing on the coating.

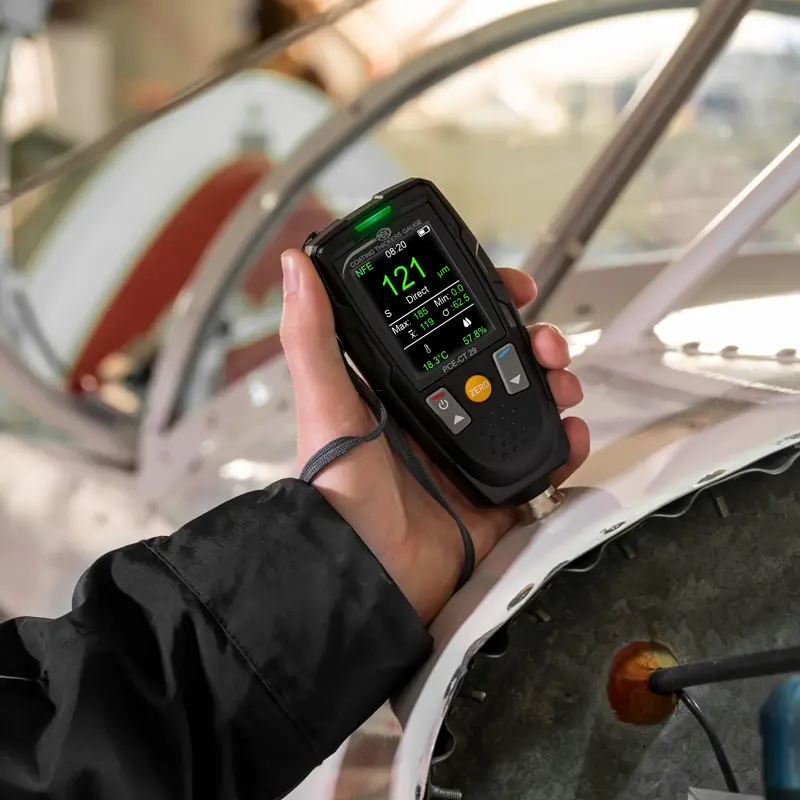

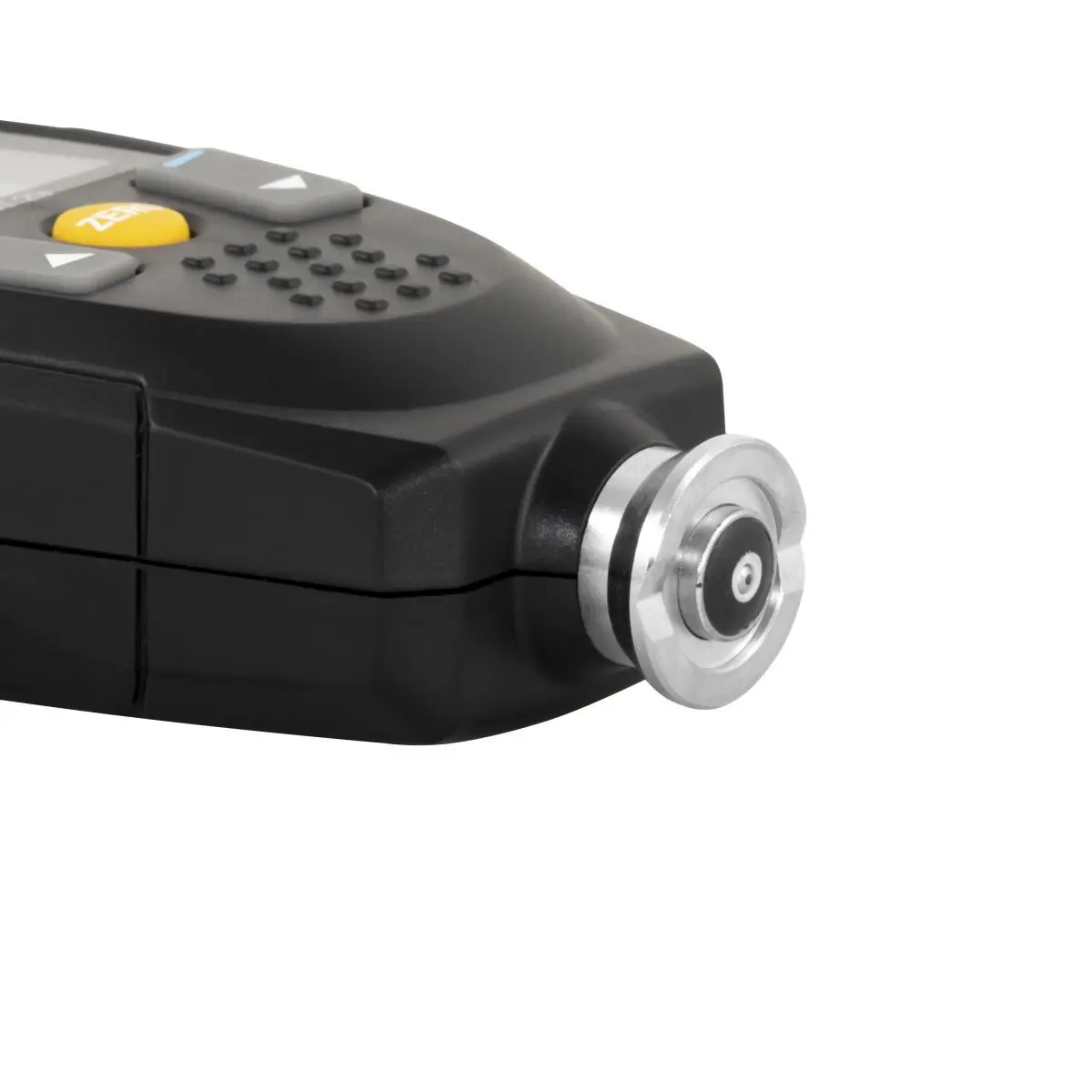

With the V-groove, the coating thickness of, for example, pipes can also be determined with the Paint Thickness Tester.

Highlights

- Data memory for later evaluations

- Rechargeable batteries

- For ferrous and non-ferrous metals

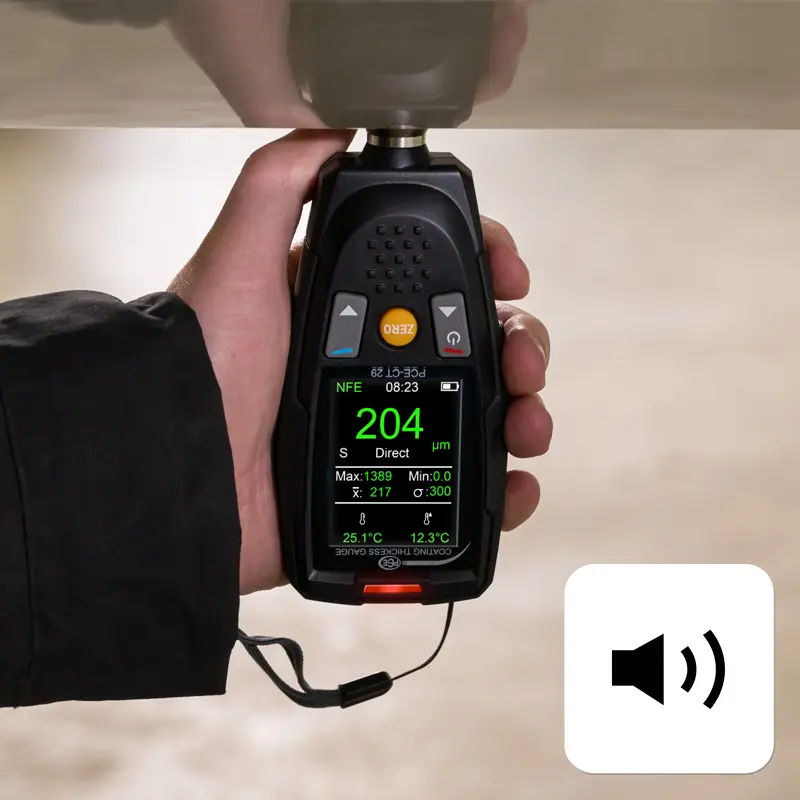

- Alarm when limit value exceeded

- Statistics function for analyzing a test object

- Alignment sensor for turning the display

- Measuring range 0 ... 1500 μm

- Graphic representation of the measured values

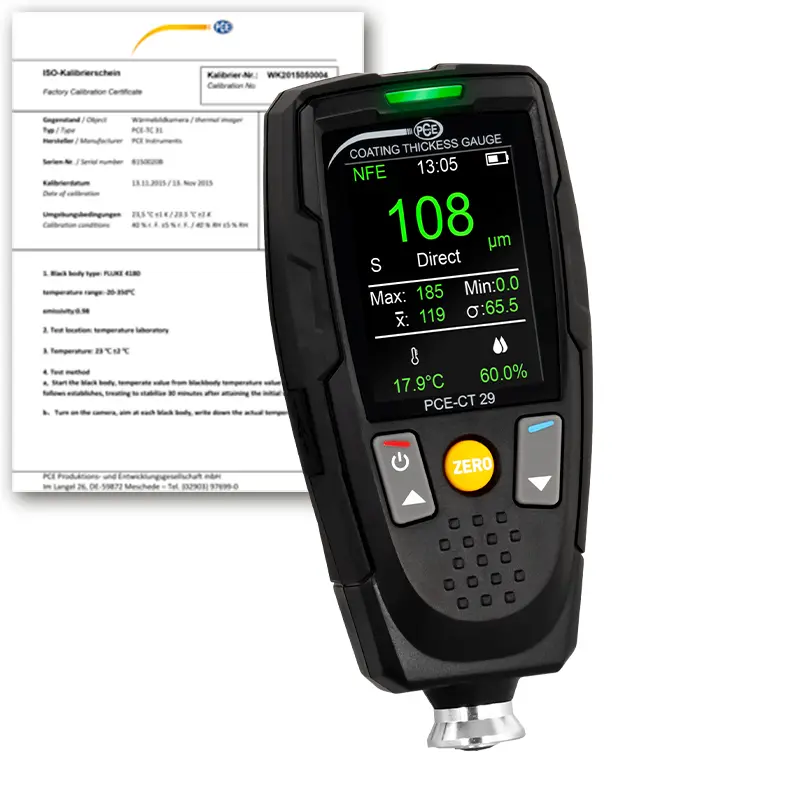

- incl. ISO-Calibration Certificate

Specification

Layer thickness
Measuring range	0 ... 99,9 µm
Resolution	0,1 µm
Accuracy	±(2% ±2 µm v. Mw.)

Layer thickness
Measuring range	100 ... 2000 µm
Resolution	1 µm
Accuracy	±(2% ±2 µm v. Mw.)

Relative humidity
Measuring range	0 ... 19,9 %
Resolution	0,1 %
Accuracy	±4.0%

Relative humidity
Measuring range	20 ... 70 %
Resolution	0,1 %
Accuracy	±3.2%

Relative humidity
Measuring range	70,1 ... 100 %
Resolution	0,1 %
Accuracy	±4.0%

Temperature
Measuring range	0 ... 50 °C
Resolution	0,1 °C
Accuracy	±1.2 °C

Temperature
Measuring range	32 ... 122 °F
Resolution	0,1 °F
Accuracy	±2.2°F

Sensor
Battery type	Magnetic mode (Fe)
Min. measuring surface	Ø7 mm
Min. thickness of base material	0,5 mm
Min. radius of curvature convex	1.5 mm

Sensor
Battery type	Eddy current mode (NFe)
Min. measuring surface	Ø5 mm
Min. thickness of base material	0,3 mm
Min. radius of curvature convex	3 mm

General technical data
Repeat accuracy	±(1% ±1 µm v. Mw.)
Measuring functions	MIN, MAX, Average value
Units	µm, mm, mils, inch
Display type	LCD
Display size	2,4 Inch
Interface	Micro-USB
Automatic power-off from...to	30 ... 300 s
Alarm	optical, Acoustic
Menu language	English, German, French, Spanish, Italian, Portuguese, Chinese, Japanese
Protection class (device)	IP20
(Rechargeable) battery	2 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	0 ... 50 °C , 20 ... 90 % RH
Storage conditions	-10 ... 60 °C , 20 ... 90 % RH
Dimensions ( L x W x H )	137 x 64 x 35 mm
Weight	175 g
