Paint Test Equipment / Paint Testing Equipment PCE-WSB 1

Paint Testing Equipment PCE-WSB 1

Order no.: PCE-WSB 1
GTIN (EAN): 4250348710826
AED 8,102.00
AED 8,507.10
price ex. (customs / clearance)
:
4250348710826
PCE-WSB 1
Delivery time:1-2 working days
Handheld / Desktop
Internal Sensor
No
No

Description

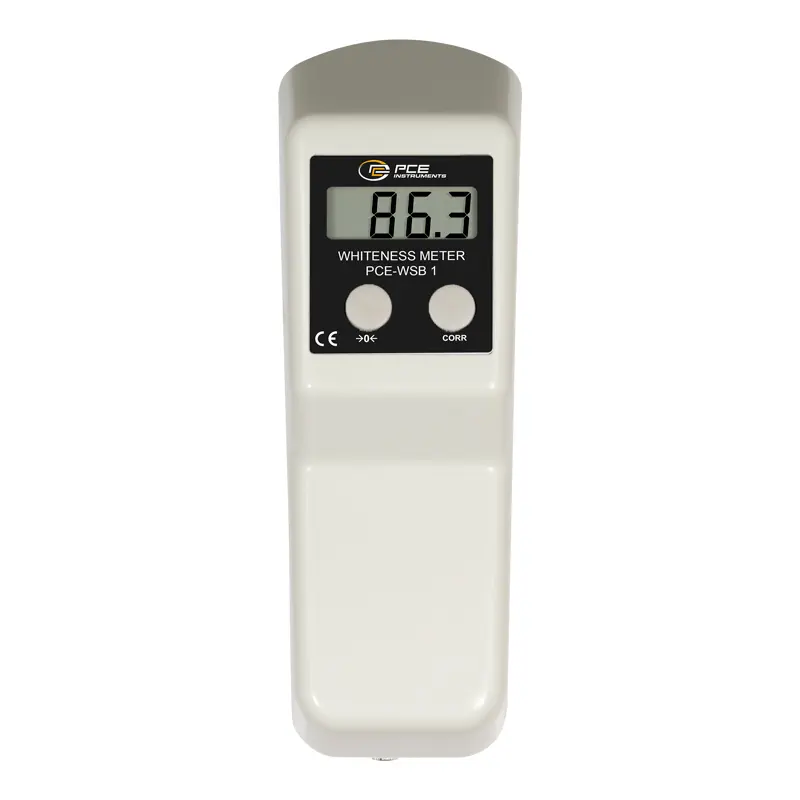

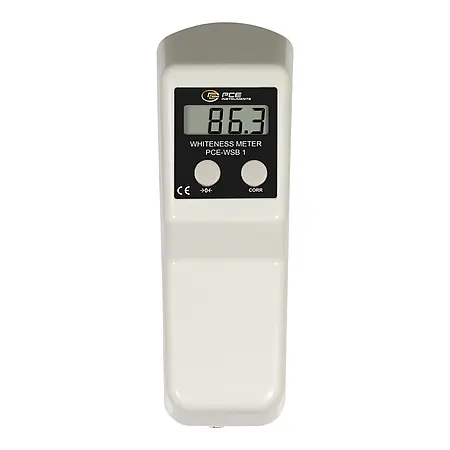

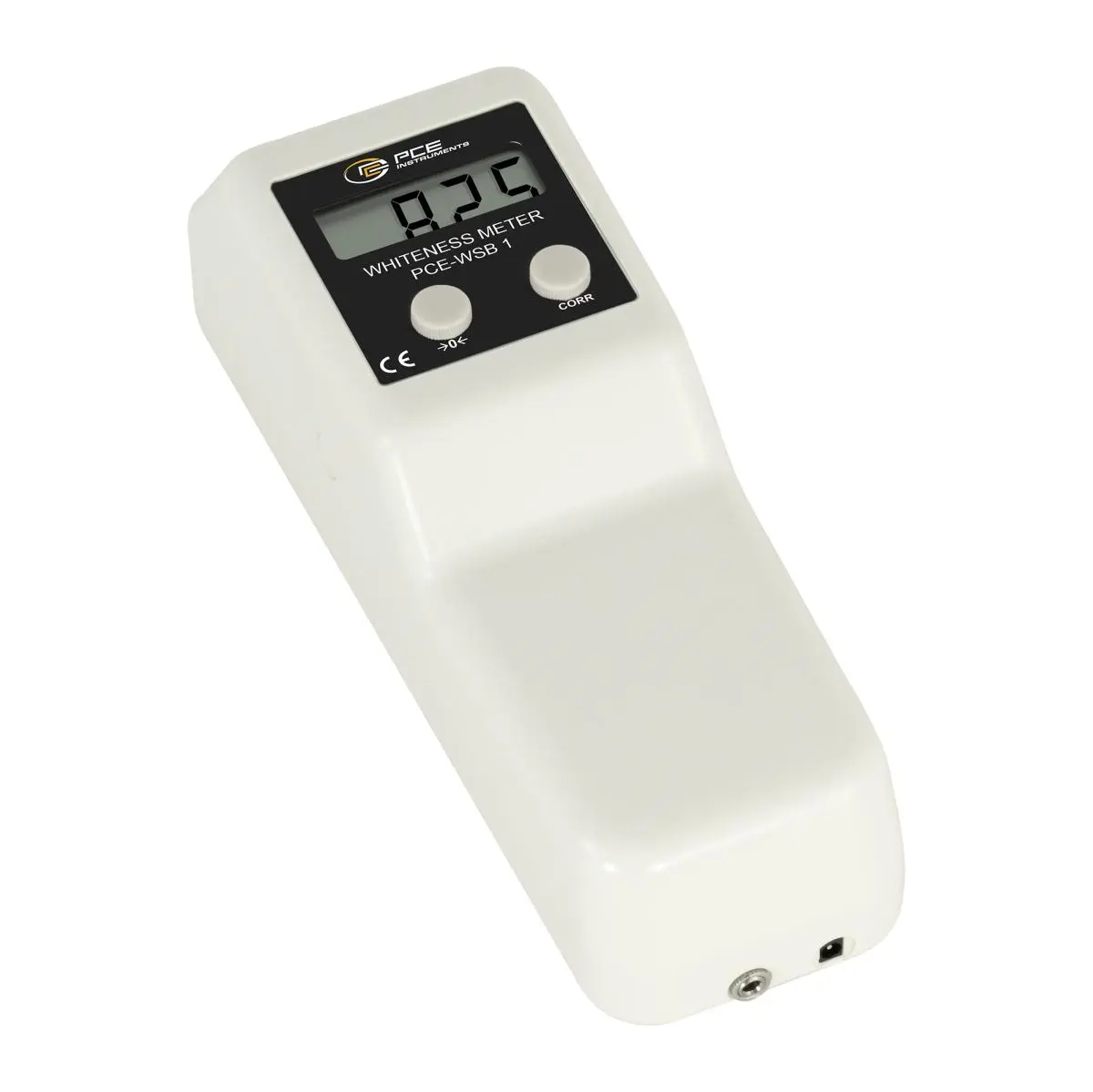

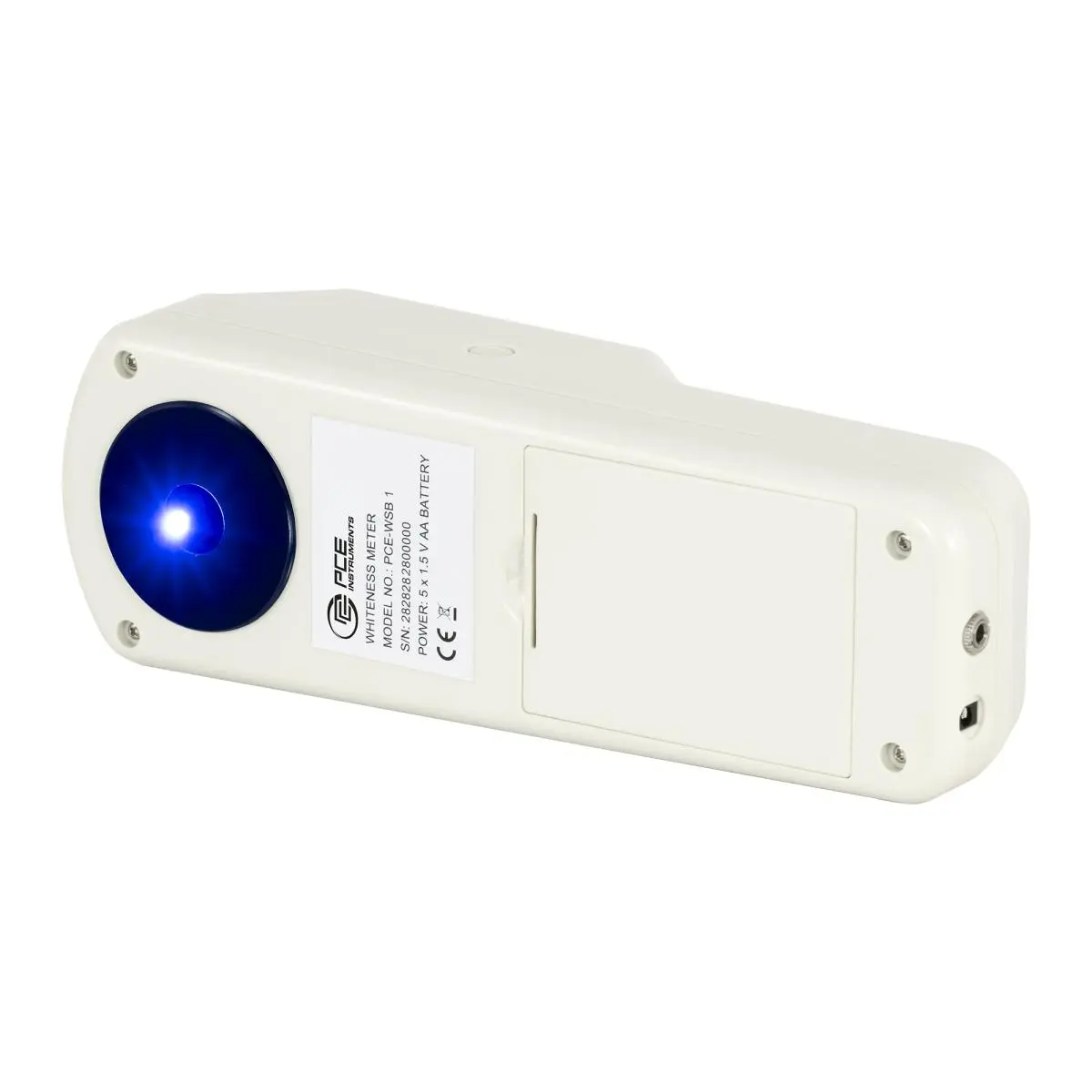

Paint Testing Equipment PCE-WSB 1
Measures the whiteness degree of blue light (Wb = R457) / Meets ISO 2470 and ISO 3688 standards / Compact, lightweight and user-friendly

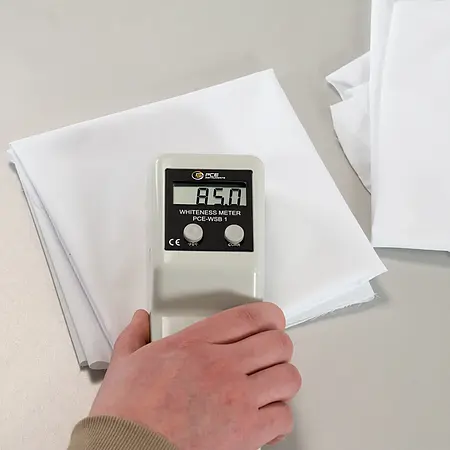

The paint testing equipment is used to measure the brightness level of paper, cardboard, cellulose, pulp, textiles, paint, enamel, plastic, porcelain, cement, concrete, building materials, chemicals, powders, talc, starch, flour, salt, detergents, cosmetics and other non-metal substances.

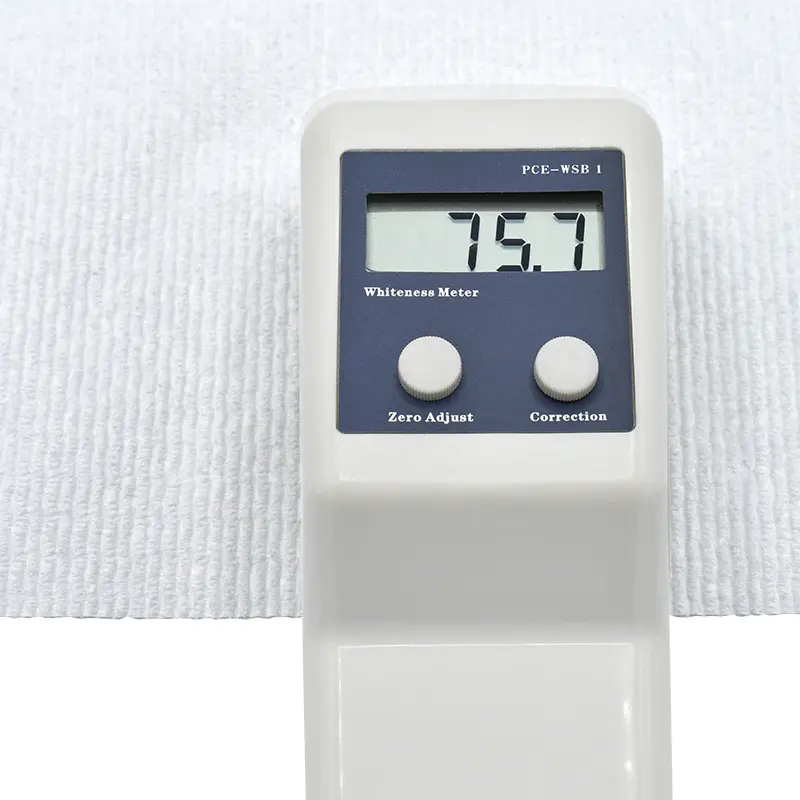

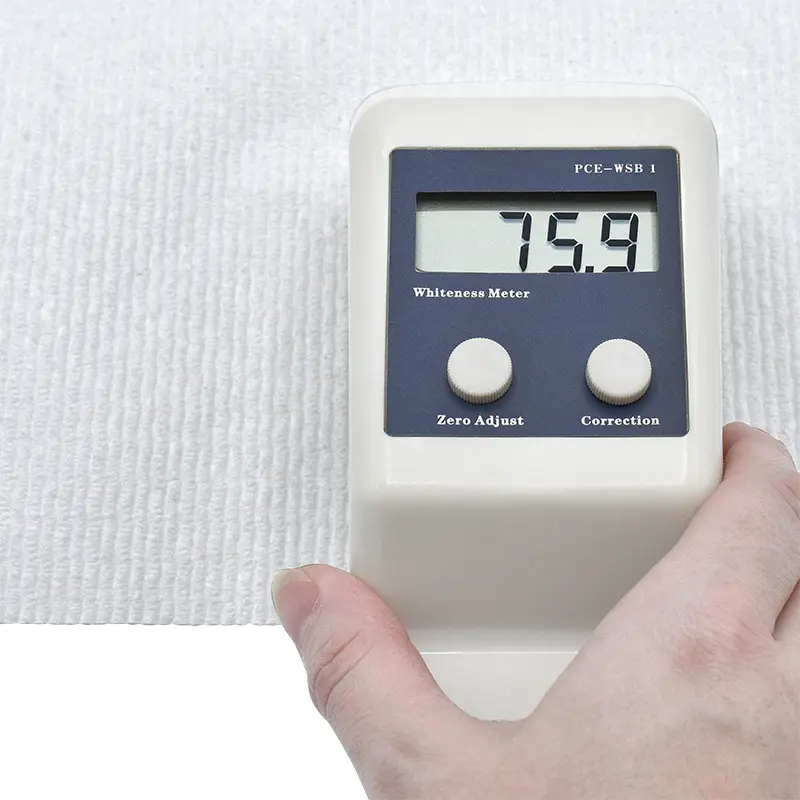

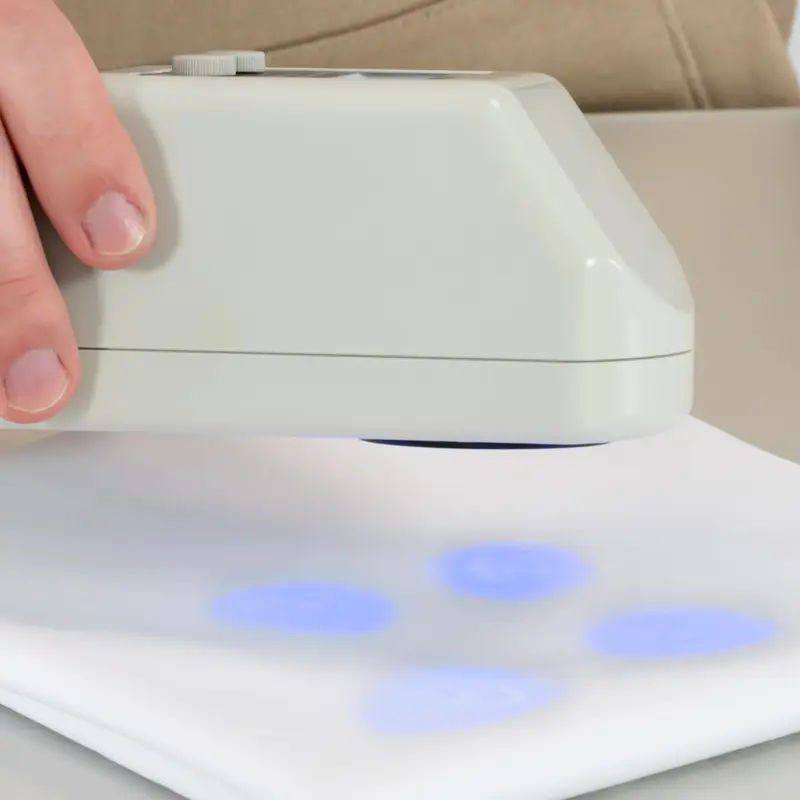

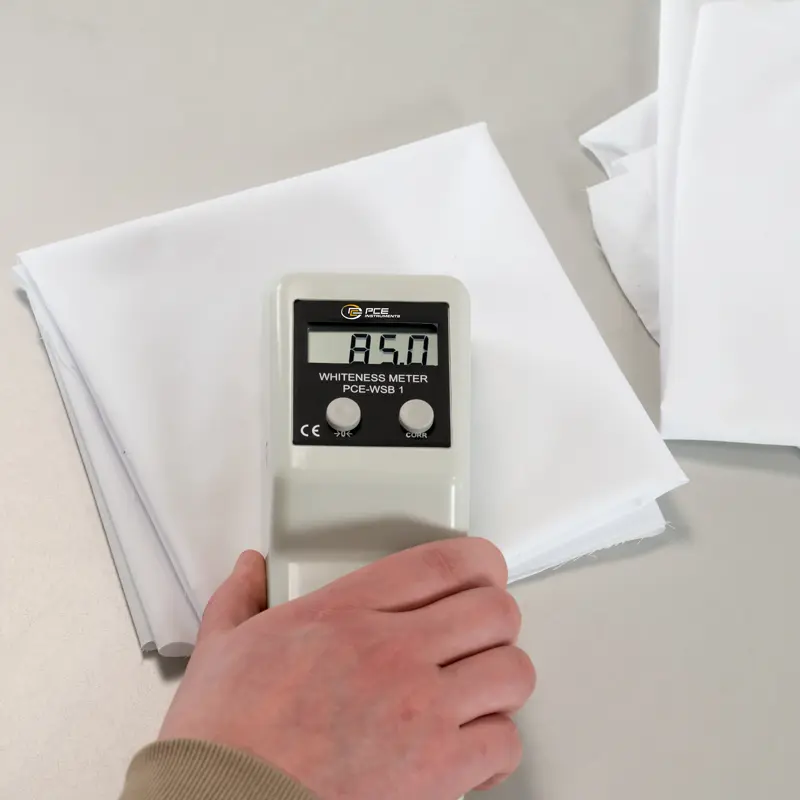

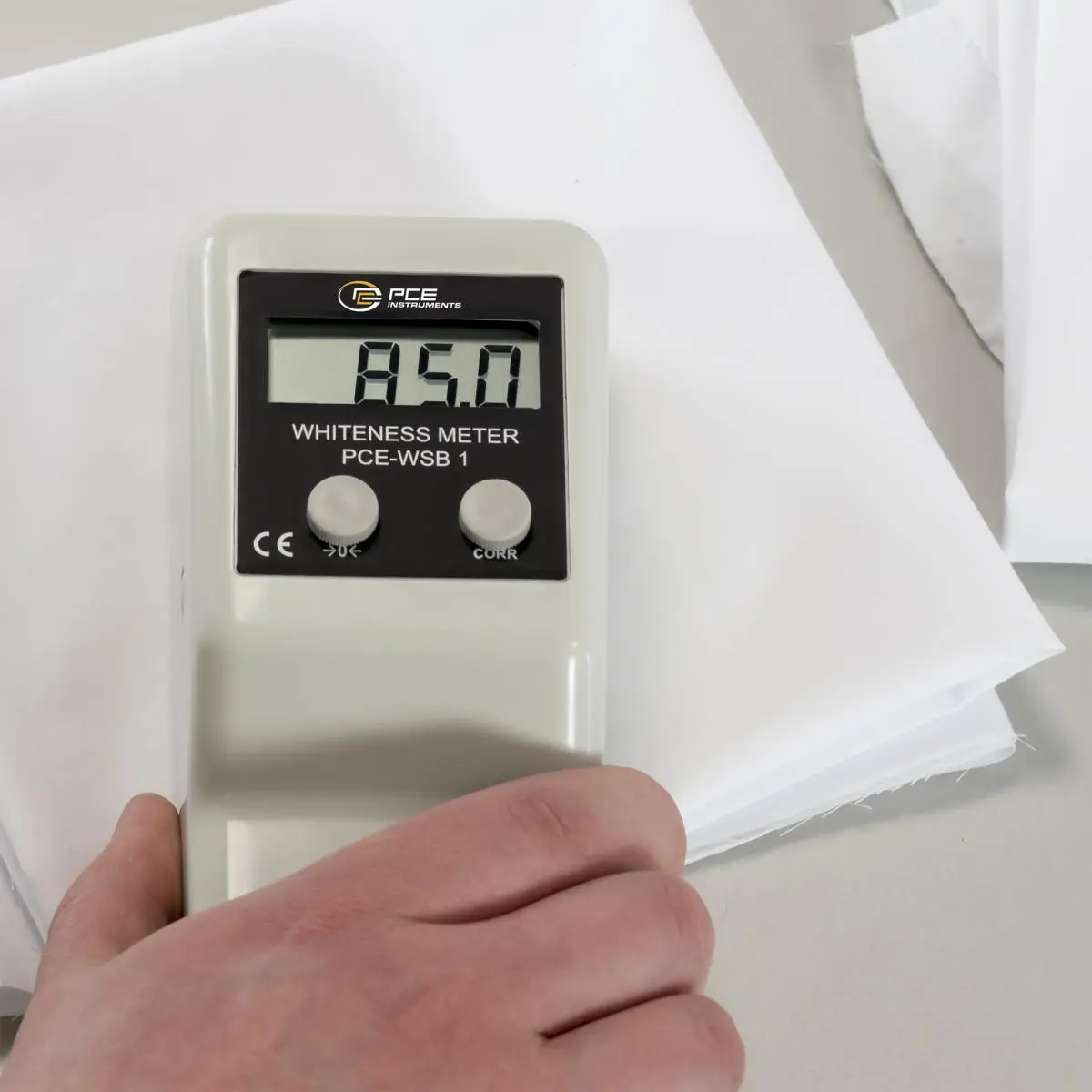

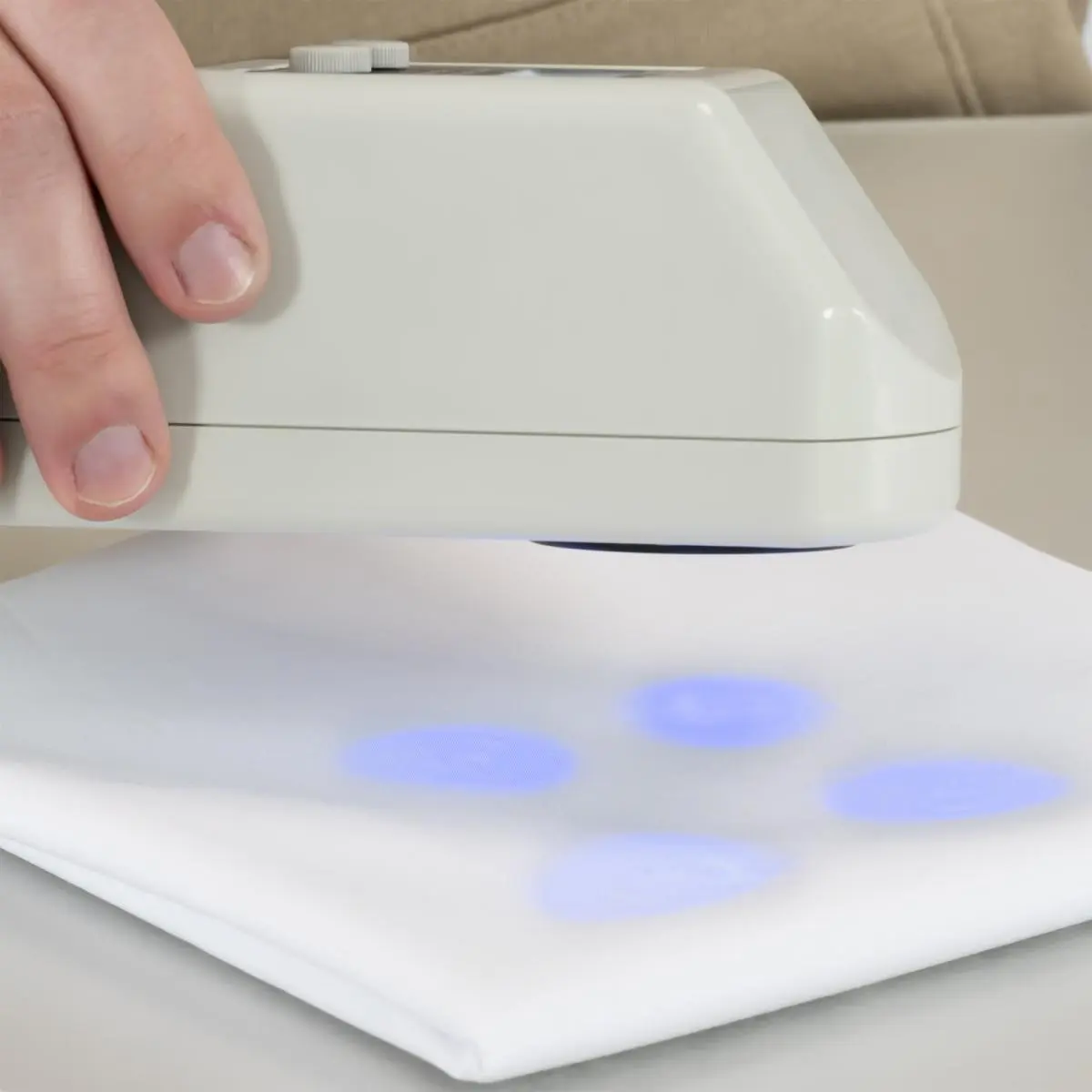

Ideally used on flat surfaces, the paint testing equipment features an easy-to-read liquid crystal display (LCD) screen. The device determines the brightness level by measuring the intensity of the light reflection diffused on a scale of 100. The level of brightness of an absolutely black surface is defined by the meter as 1. Included with the meter are black, white and brilliance standards for DIY calibration as needed to ensure accurate, repeatable measurements are consistently obtained.


Highlights

- Measures the whiteness degree of blue light (Wb = R457)
- Meets ISO 2470 and ISO 3688 standards
- Compact, lightweight and user-friendly

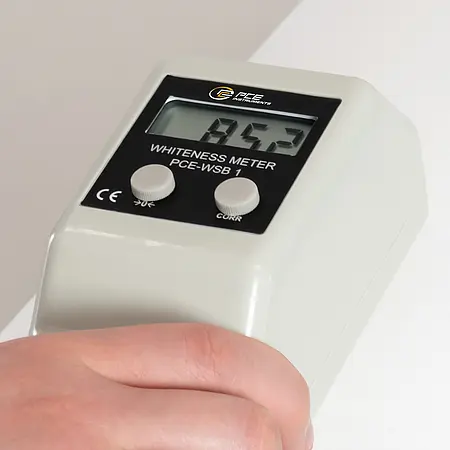

- Easy-to-read liquid crystal display (LCD) screen
- Includes black, white and brilliance standards for DIY calibration
- Resolution: 0.1
- Repeat accuracy : ±0.1

Specification

Whiteness
Measuring range  0 ... 100
Resolution  0,1
Accuracy  < ±0.1

General technical data
Display type  LCD
Standard(s)  ISO 2470-2, ISO 3688
Light source  LED
Repeatability  ≤0.3

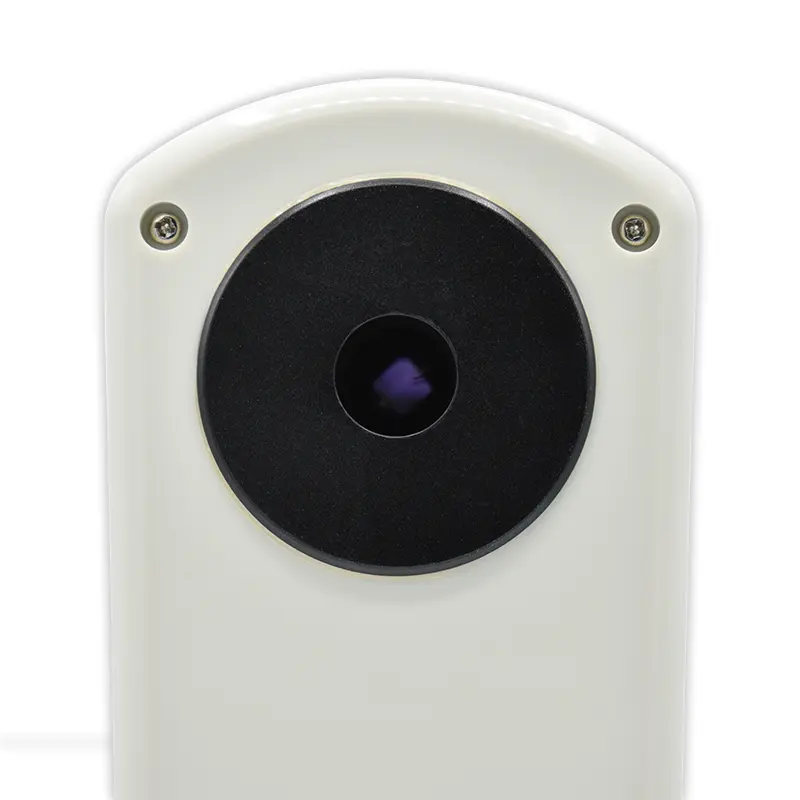

Measuring aperature  Ø15 mm
Protection class (device)  IP20

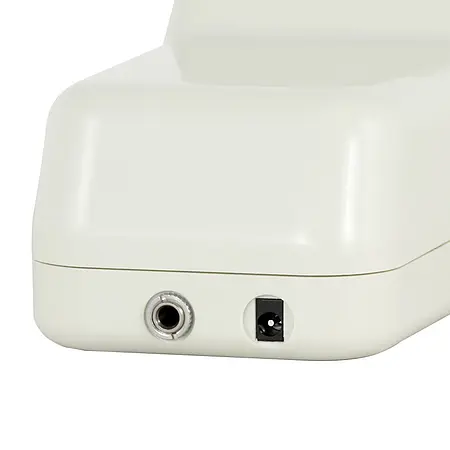

Power supply  - 110 ... 220V AC, 7.5V DC / 0.2 A
- Batteries
Connector type  Device-europlug
(Rechargeable) battery  5 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  5 ... 35 °C , 0 ... 85 % RH
Storage conditions  -10 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  235 x 75 x 65 mm
Weight  500 g

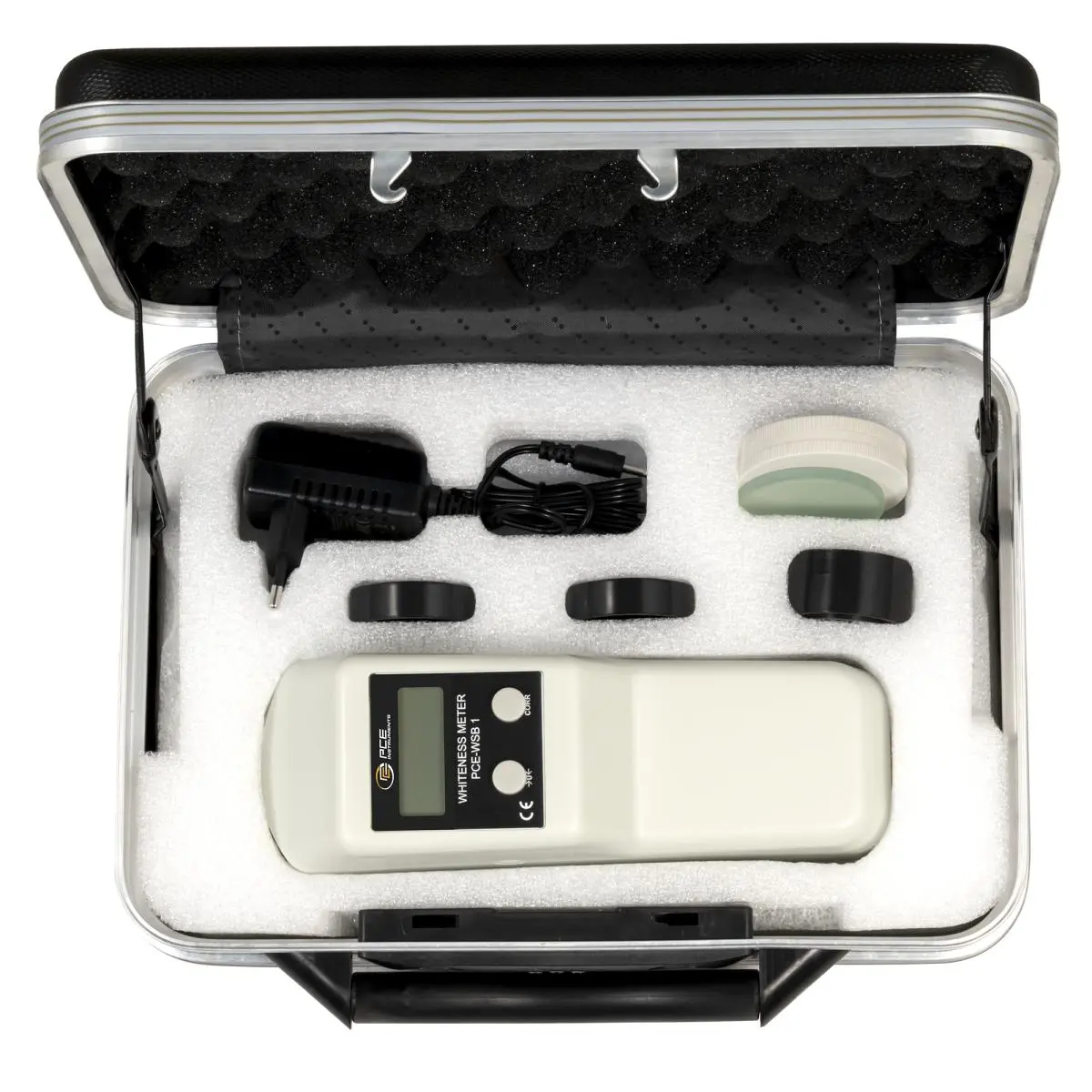

Delivery Scope

1 x PCE-WSB 1 Paint Test Equipment / Paint Testing Equipment

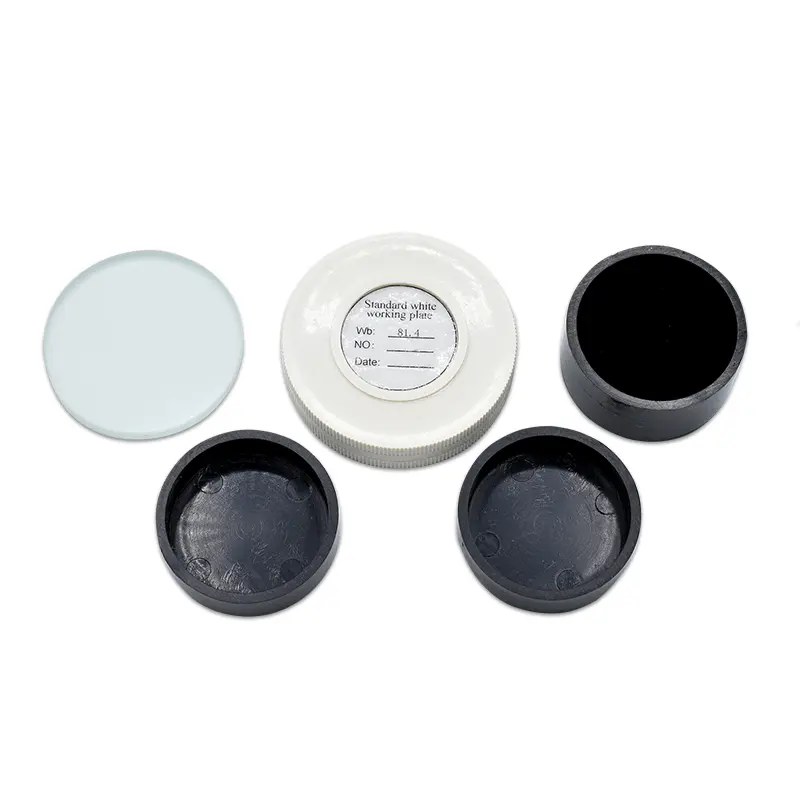

1 x brilliance calibration standard
1 x black calibration standard
1 x white calibration standard
2 x powder test boxes
1 x user manual
1 x carrying case
