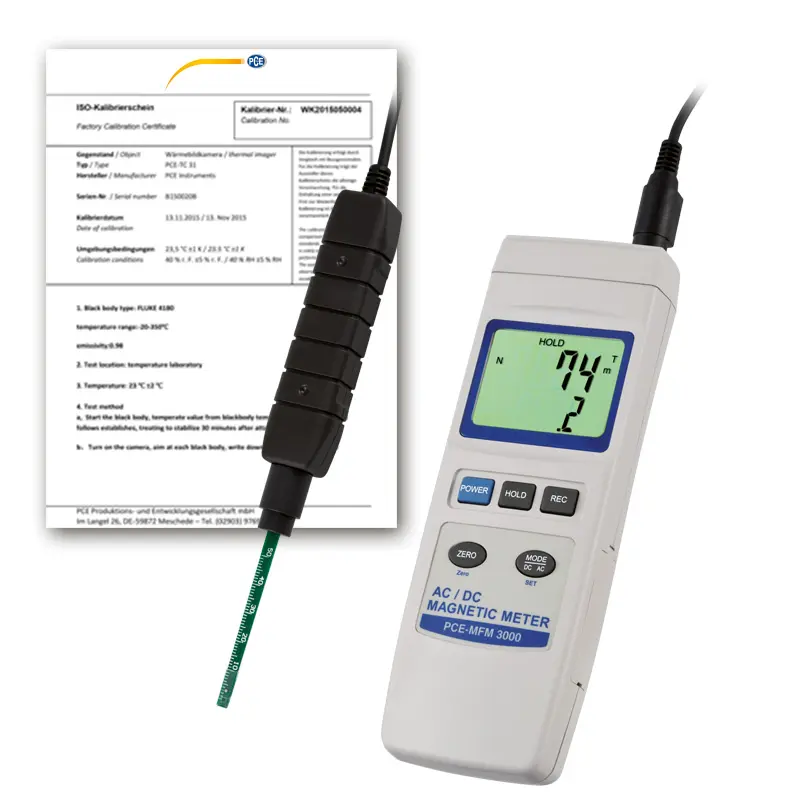

Magnetometer / Magnetic Field Detector PCE-MFM 3000-ICA

Magnetometer / Magnetic Field Detector PCE-MFM 3000-ICA [zoom]

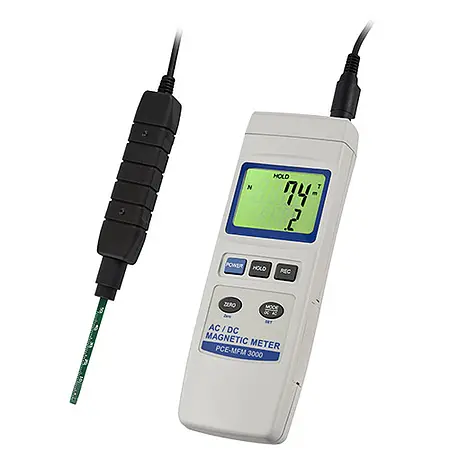

Magnetometer / Magnetic Field Detector PCE-MFM 3000-ICA

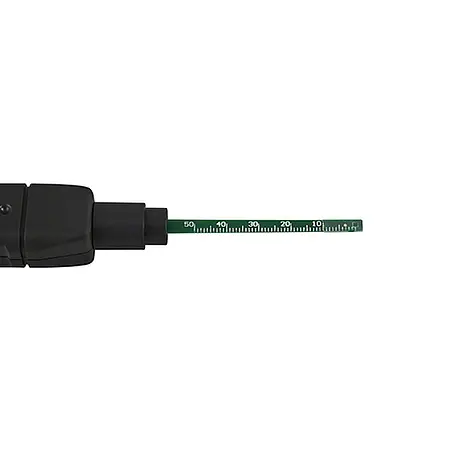

Magnetometer / Magnetic Field Detector Sensor

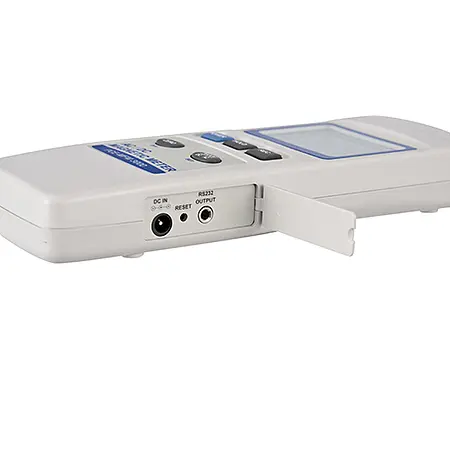

Magnetometer / Magnetic Field Detector Connections
Magnetometer / Magnetic Field Detector Sensor
Magnetometer / Magnetic Field Detector Application picture

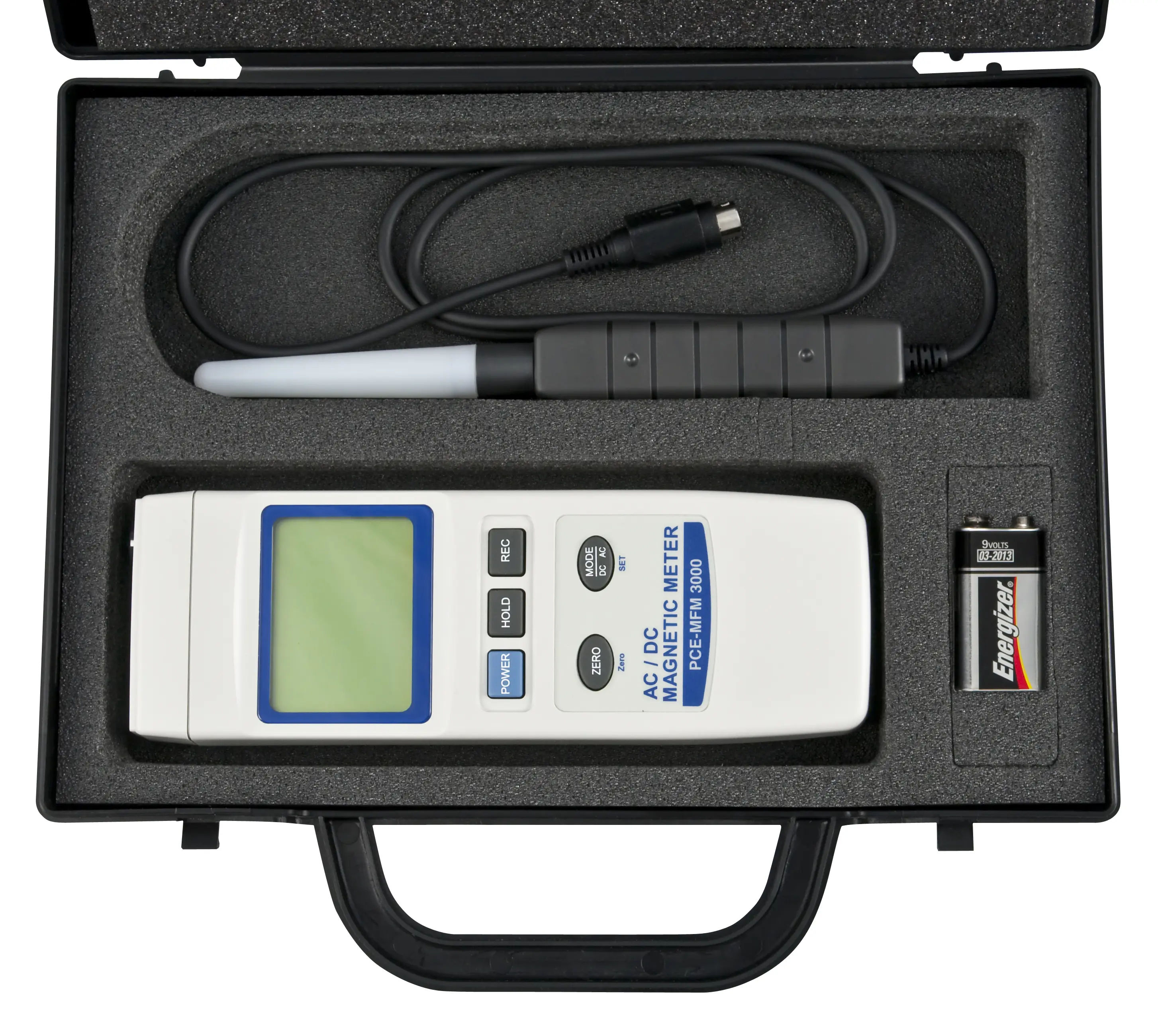

Magnetometer / Magnetic Field Detector Delivery scope

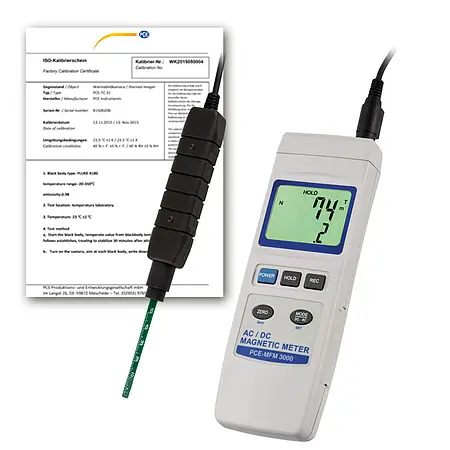

Magnetometer PCE-MFM 3000-ICA Incl. ISO Calibration Certificate

Order no.: PCE-MFM 3000-ICA
GTIN (EAN): 4250348726322
AED 2,926.00
AED 3,072.30
price ex. (customs / clearance)
:
4250348726322
PCE-MFM 3000-ICA
Delivery time:5-7 working days

Accessory

Description

Magnetometer PCE-MFM 3000-ICA incl. ISO calibration certificate
Portable handheld AC / DC magnetic field detector

The PCE-MFM 3000 is a handheld magnetometer that detects both static (DC) permanent magnet (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable magnetometer comes with an external sensor and features an RS-232 port for downloading data to a PC.


Highlights

- Measurement range: 0 ... 30000 G / 0 ... 3000 mT
- Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic)
- Resolution: 0.1 G / 0.01 mT
- Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic
fields (EMFs)
- Displays measurement results in gauss (G) or milli Tesla (mT)
- Comes with an external sensor
- Features an RS-232 port for downloading data to PC
- Max, min, data hold and auto shutdown power-saving functionality
- Ideal tool for checking magnetic valves, relays and air-core transformers
- Useful for assessing permanent magnets and rare earth magnets made of
Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite (also
known as ceramic)
- The external sensor's small, flat tip allows easy access through gaps and
into tiny spaces
- Measures through casings, coverings and housings, eliminating the need to
dismantle parts for inspection
- incl. ISO-Calibration Certificate

Specification

Magnetic field AC
Measuring range  0 ... 150 mT
Resolution  0,01 mT
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)
Frequency range  50 ... 60 Hz

Magnetic field AC
Measuring range  0 ... 1500 mT
Resolution  0,1
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field AC
Measuring range  0 ... 1500 g
Resolution  0,1 g
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field AC
Measuring range  0 ... 15000 g
Resolution  1 g
Accuracy  ±5% v. Mw. +20 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 300 mT
Resolution  0,01 mT
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 3000 mT
Resolution  0,1 mT
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 3000 g
Resolution  0,1 g
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

Magnetic field DC
Measuring range  0 ... 30000 g
Resolution  1 g
Accuracy  ±5% v. Mw. +10 digits (at 23 ±5°C)

General technical data
Measuring functions  MIN, MAX, HOLD
Measuring direction  Uniaxial
Frequency  50 ... 60 Hz
Display type  LCD
Measuring rate  1 Hz
Sensor  Hall sensor
Dimensions  Probe: 195 x 25 x 19 mm
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  198 x 68 x 30 mm
Weight  275 g

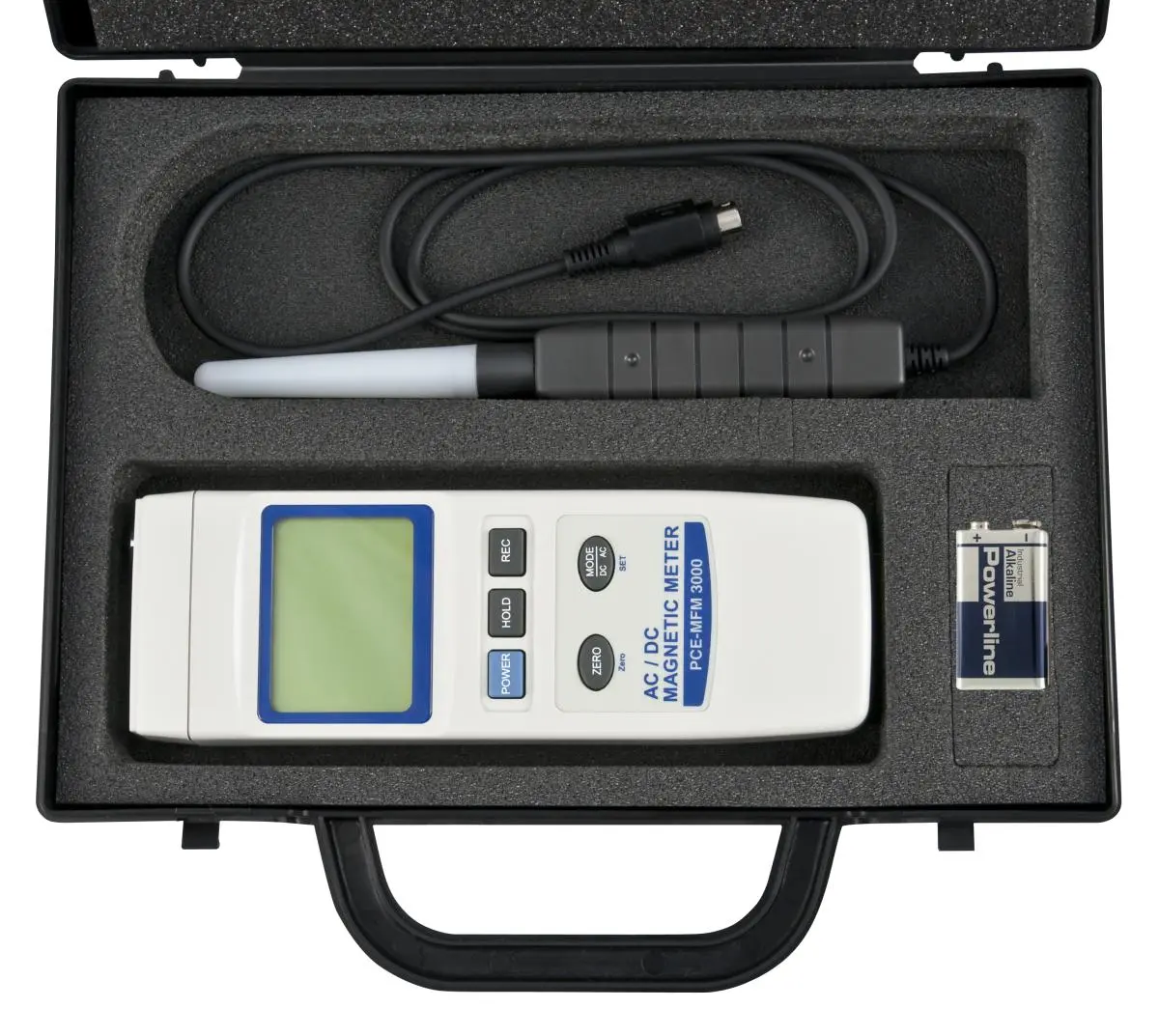

Delivery Scope

1 x PCE-MFM 3000-ICA Magnetometer / Magnetic Field Detector
1 x External sensor
1 x 9V battery
1 x Carrying case
1 x User manual
1 x ISO-Calibration Certificate
