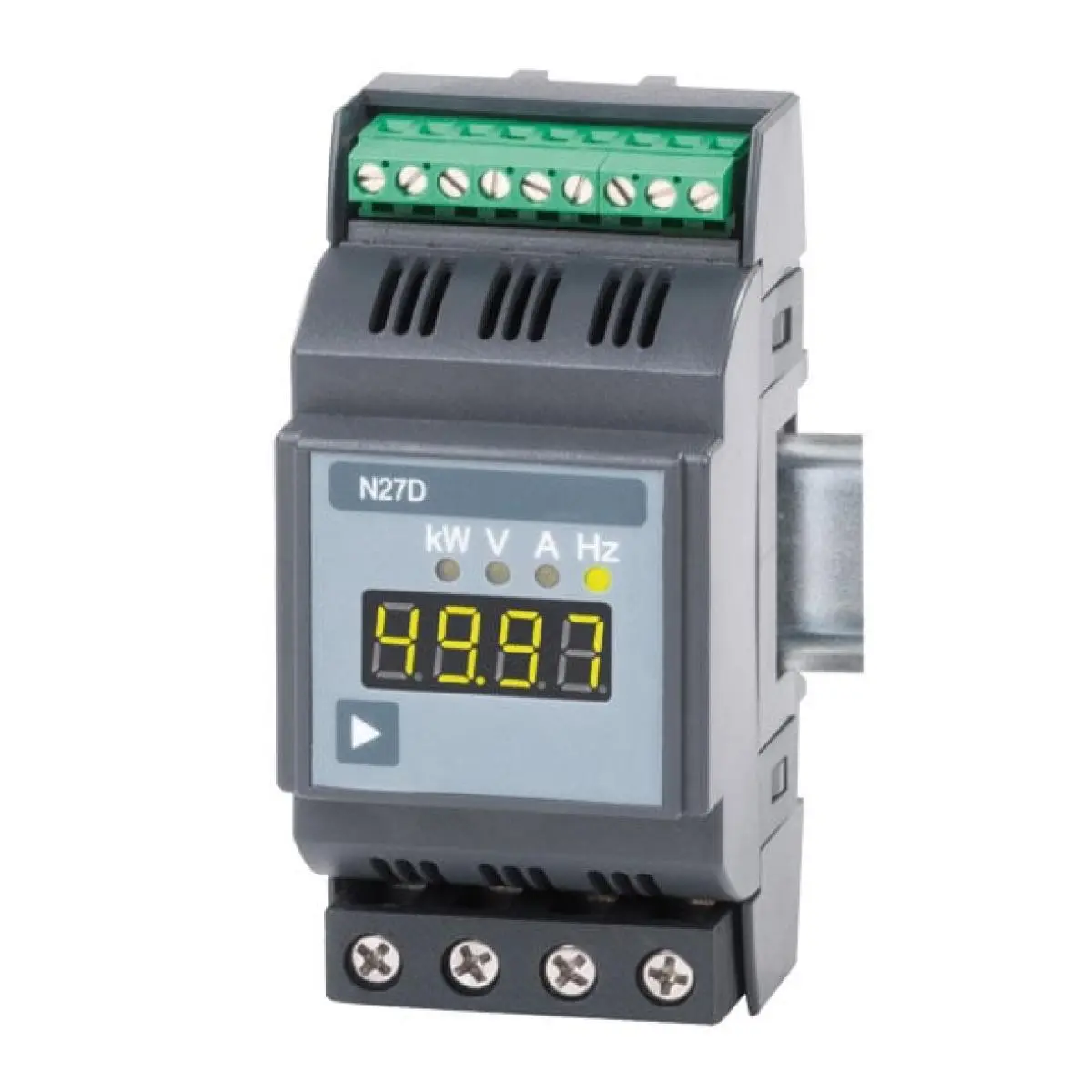

Power Indicator PCE-N27D

Order no.: PCE-N27D

GTIN (EAN): 4250348718723

Description

Performance indicator for compliance with ISO 50001 / measures up to 63 A direct /

measurement and display of current, voltage, power and frequency

The power indicator measures current up to 63 A directly. This makes it possible to connect the power indicator directly to the main distribution. The power indicator measures all relevant network parameters such as current, voltage, power and frequency. The power indicator is ideally suited for measurement purposes in order to comply with the ISO 50001 energy management standard.

Highlights

- Measures up to 63 A directly

- Measurement of U, I, f, P

- DIN rail mounting

- To comply with ISO 50001

- Switchable size

- Simple operation

- LED display

- Easy installation

Specification

AC voltage
Measuring range	0,01 ... 500 V
Resolution	0,01 V
Accuracy	±0.5 % FS
Frequency range	2 ... 500 Hz

Alternating current AC
Measuring range	0,01 ... 63 A
Resolution	0,01 A
Accuracy	±0.5 % FS
Frequency range	45 ... 500 Hz

Active power
Measuring range	-31,5 ... +31,5 kW
Resolution	0,1 kW
Accuracy	±1% FS W

Frequency
Measuring range	2 ... 500 Hz
Resolution	0,01 Hz
Accuracy	±0.02% FS

General technical data
Display type	LED
Digit size [WxH]	H: 8.5 mm
Warm-up time	15 min
Safety standard	CAT II / 600V, CAT III 300V
Measurement time	0,5 s
Mounting	on 35 mm DIN rail
Dimensions	Display frame: 45 x 53 mm
Display range	-1999 ... 9999
Protection class (device)	IP00
Power supply	230V AC ±10% \| 45 / 65 Hz
Operating conditions	-10 ... 55 °C , 0 ... 95 % RH
Storage conditions	-25 ... 85 °C , 0 ... 95 % RH

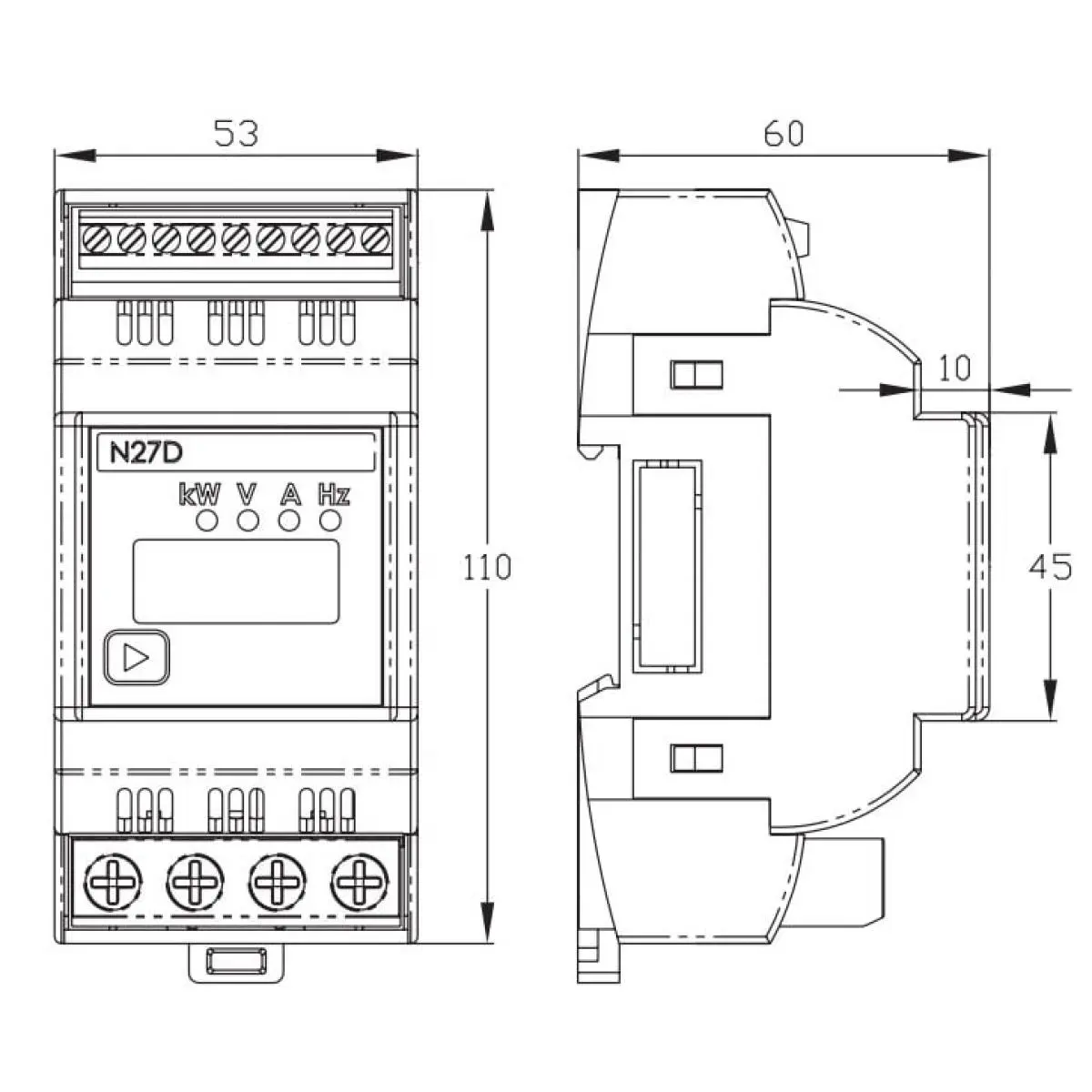

Dimensions ( L x W x H )	53 x 110 x 60 mm
Weight	250 g
