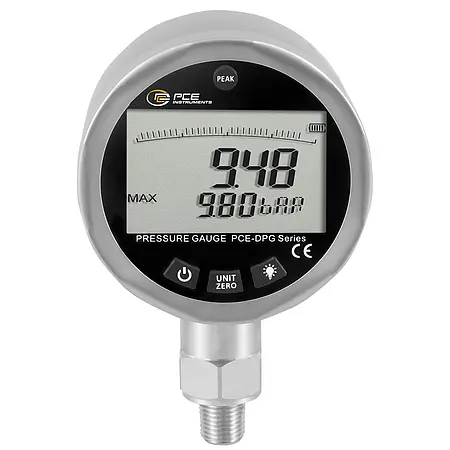

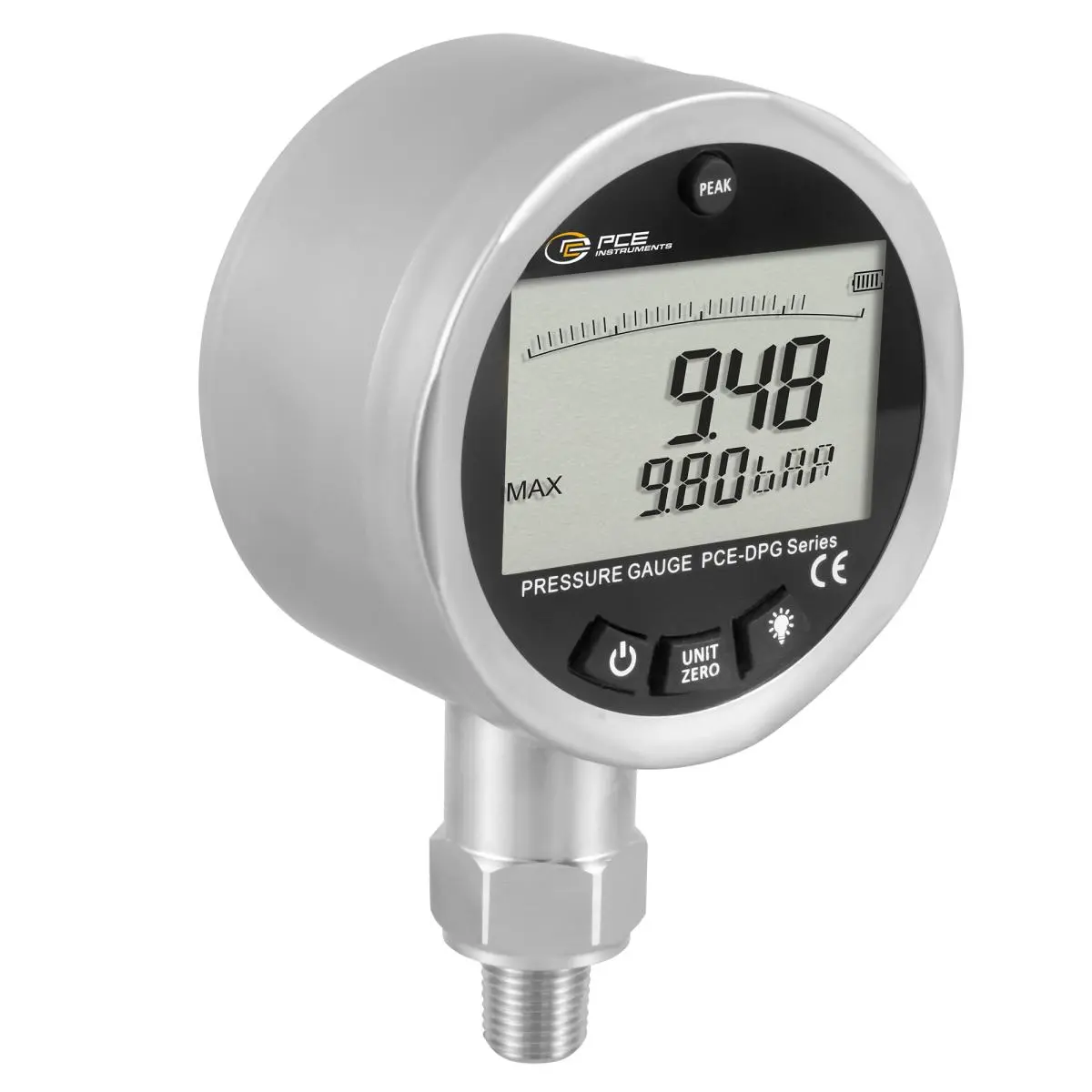

The panel meter of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this panel meter is versatile. The current pressure is displayed by the panel meter as a value and at the same time as a bar graph. As an additional function, the panel meter offers a peak function. This function shows the operator the maximum and minimum pressure measured on the panel meter at the push of a button.

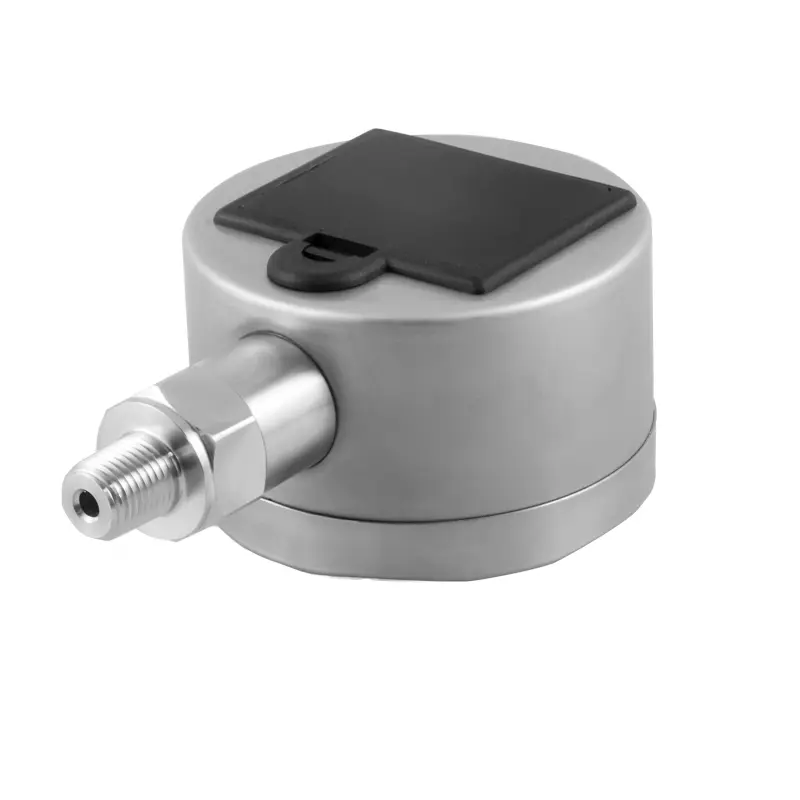

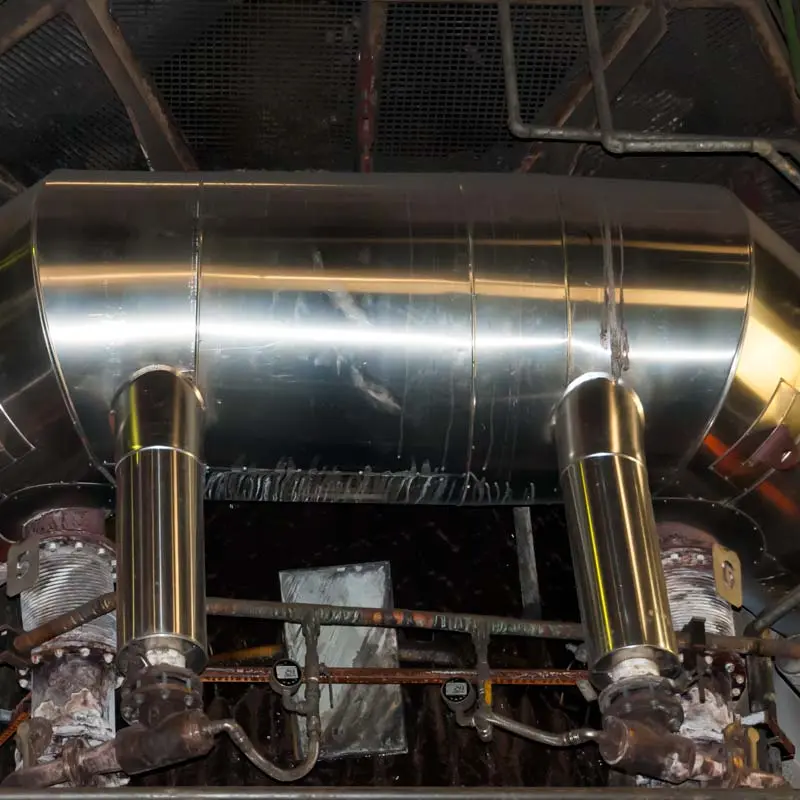

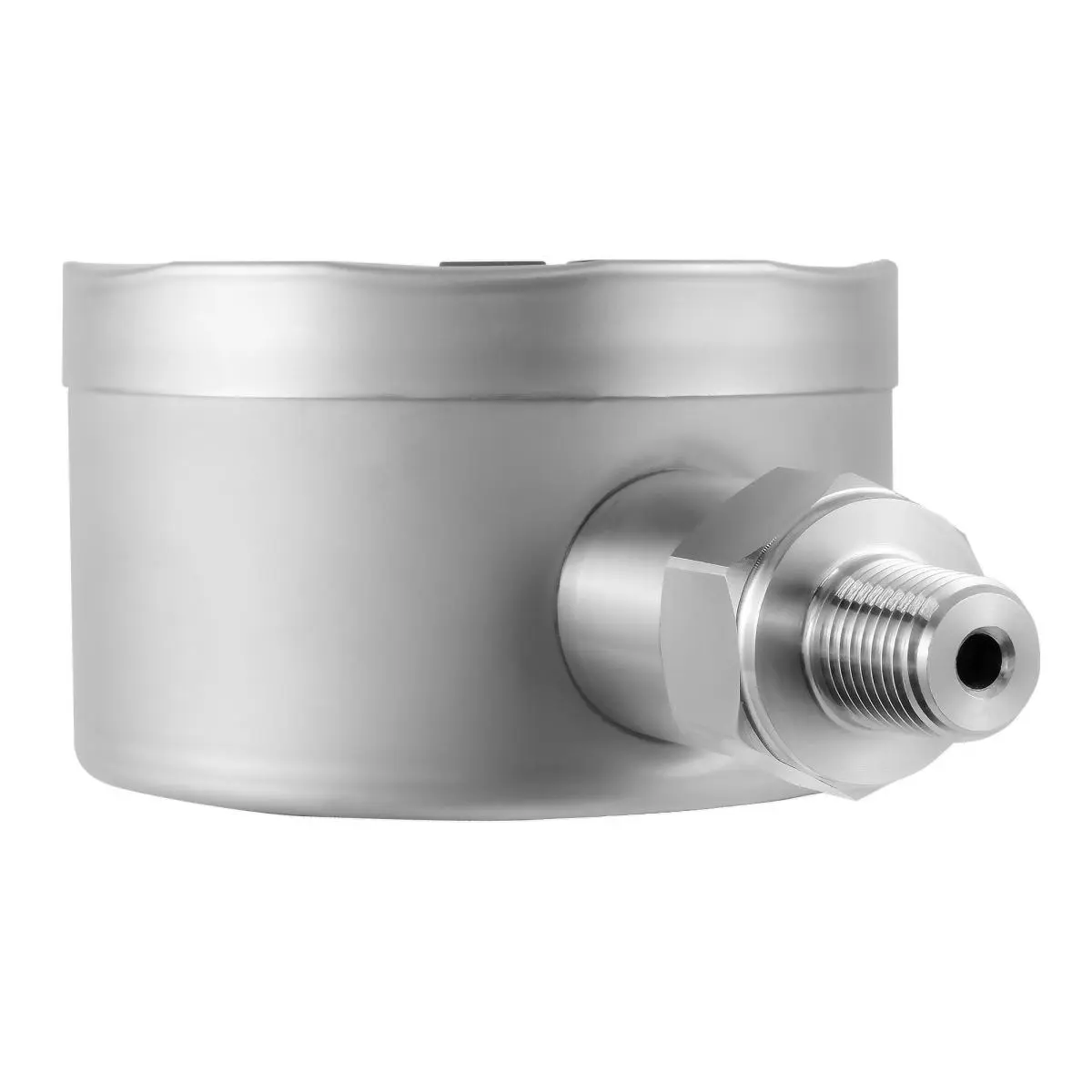

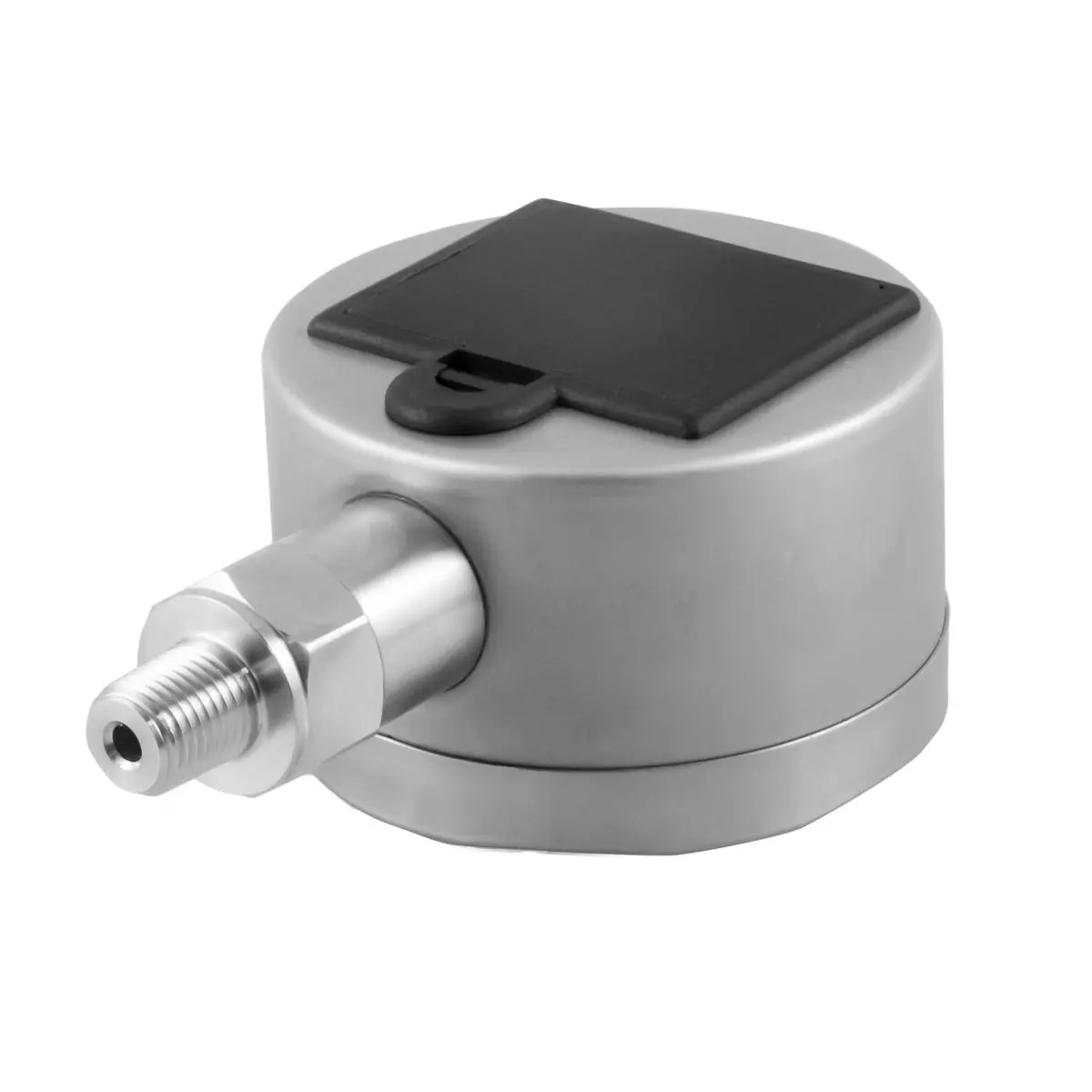

Thanks to the large display of 2.5" almost all measured values ​​can be read directly. Possible adjustable units for the panel meter would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the panel meter is < 50 ms. The connection of the panel meter to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.
