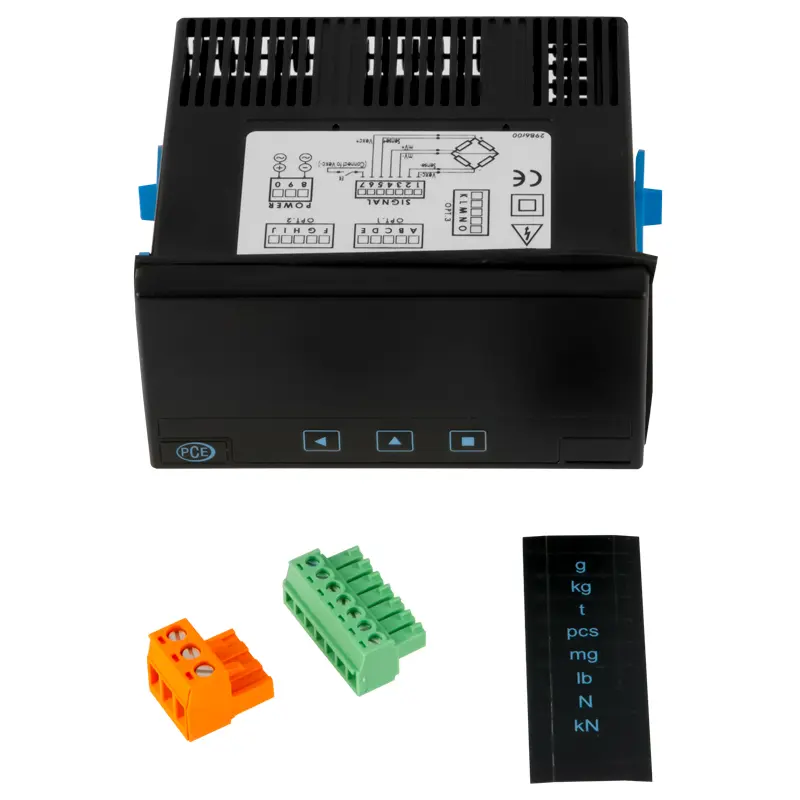

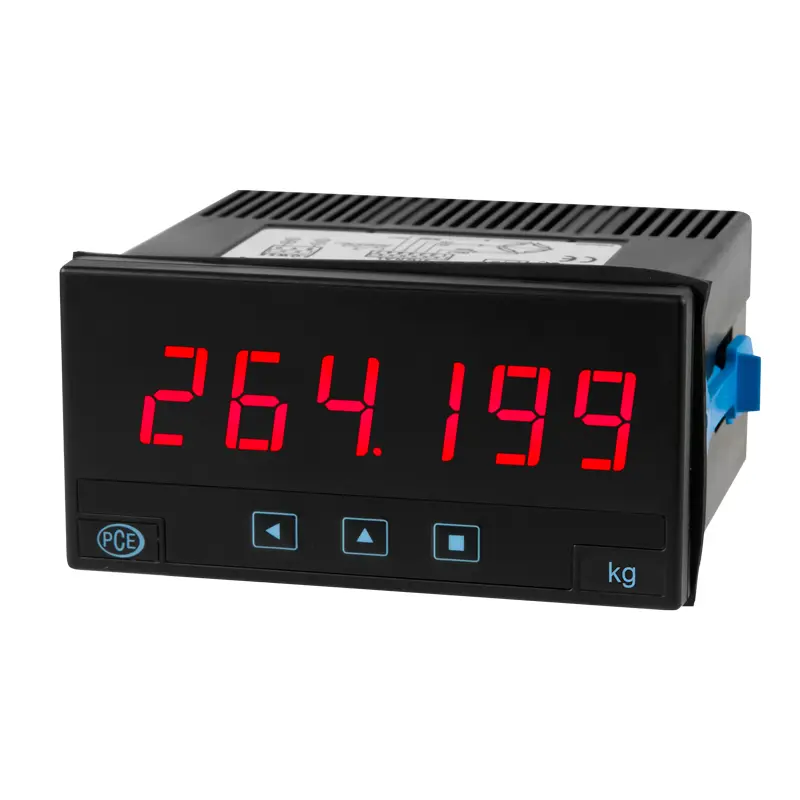

The built-in display is used to indicate the force and weight detected by force sensors and load cells with strain gauges. The output signal of the measuring cell is irrelevant because the panel meter makes it possible to display the correct weight in mV / V based on the set sensitivity. The panel meter shows the measured values ​​on a 6-digit LED display. The measuring range could theoretically be between -199999 ... 999999. Depending on the desired and adjusted scaling, a corresponding unit sticker can be applied to the installation indicator.

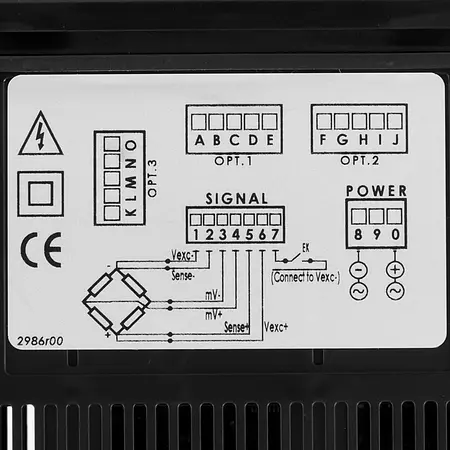

The panel meter can directly supply voltage to the connected measuring cell with strain gauges. The supply voltage can be selected between 5V and 10V. Depending on the voltage selected, up to 8 or 4 force or load cells can be connected to the panel meter. A special feature of this digital display for mV / V is the modular output concept. Different, changeable output cards are available depending on the application.
