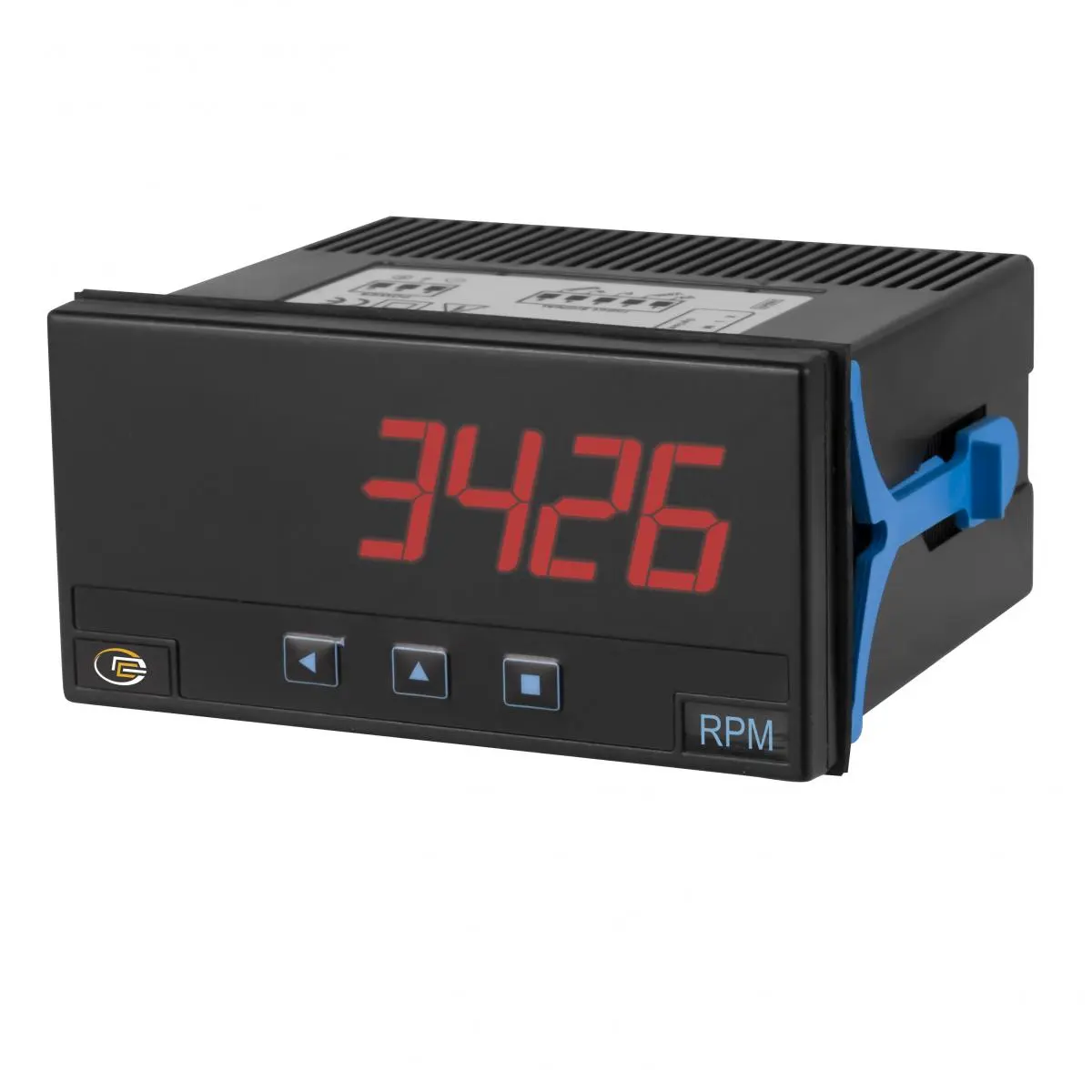

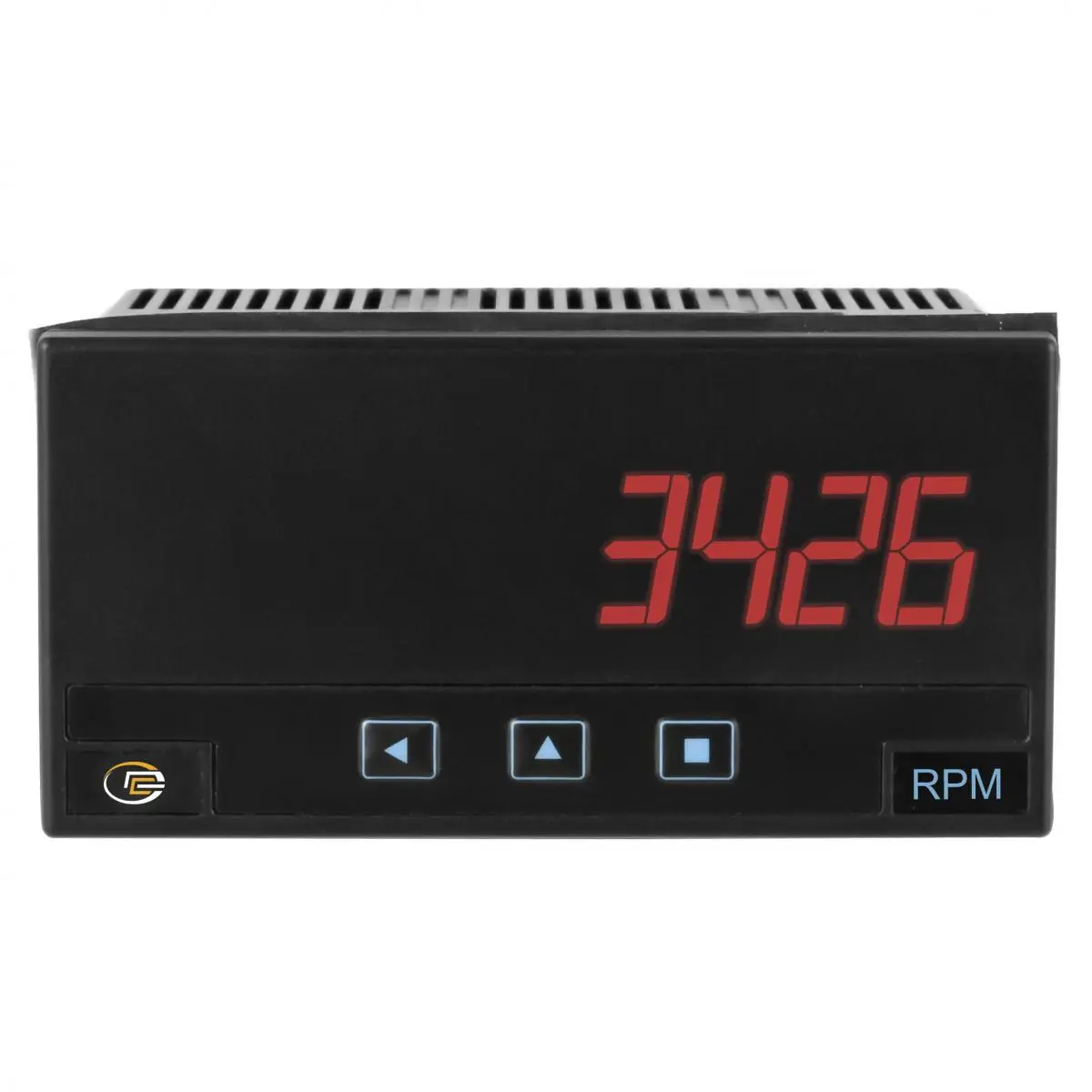

The Panel Indicator has two pulse inputs (NPN/PNP) and a reset input. The Panel Indicator displays measured values between -199,999 and 999,999 on the 6-digit LED display. The display on the Panel Indicator can be adjusted using the three front buttons, and the input can be individually scaled.

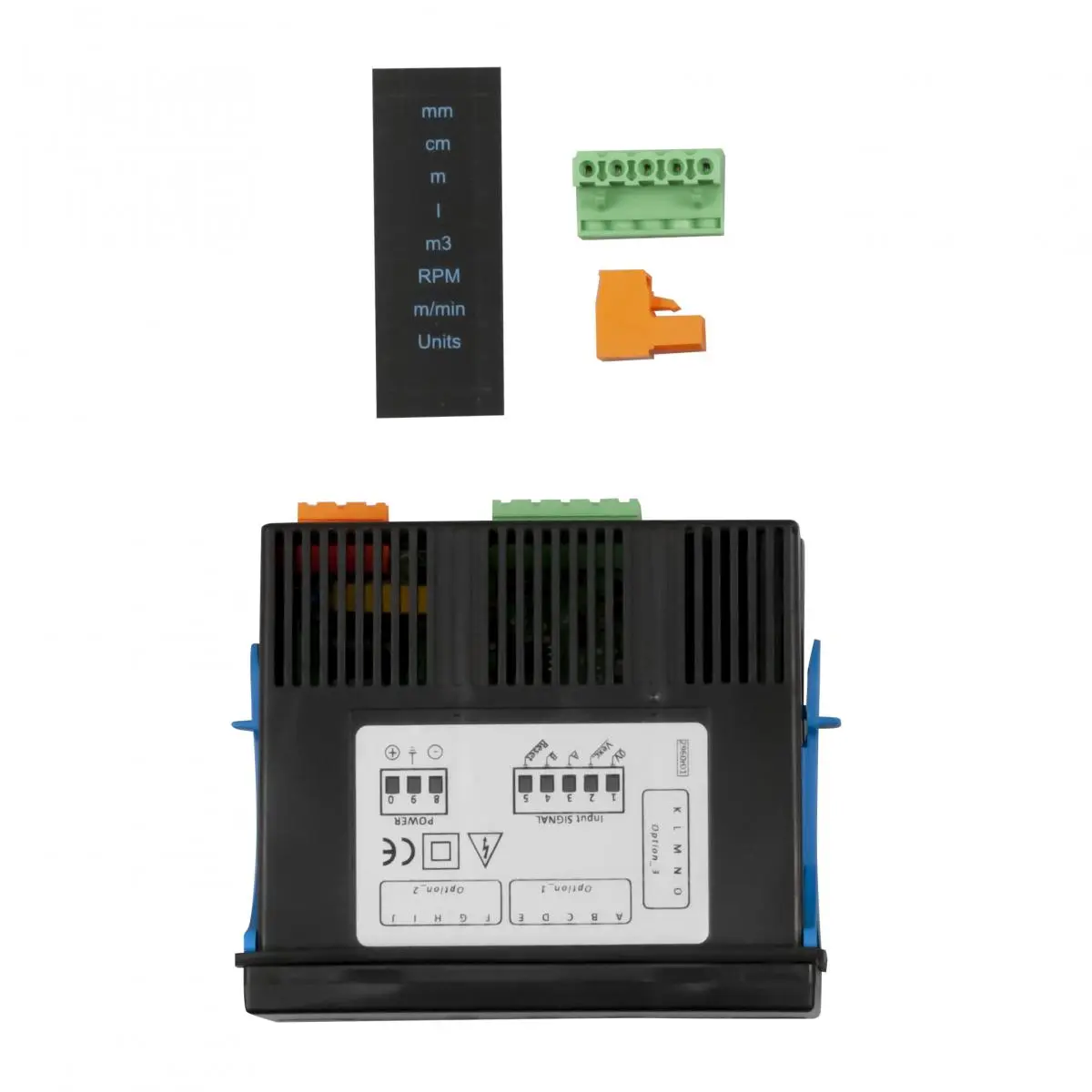

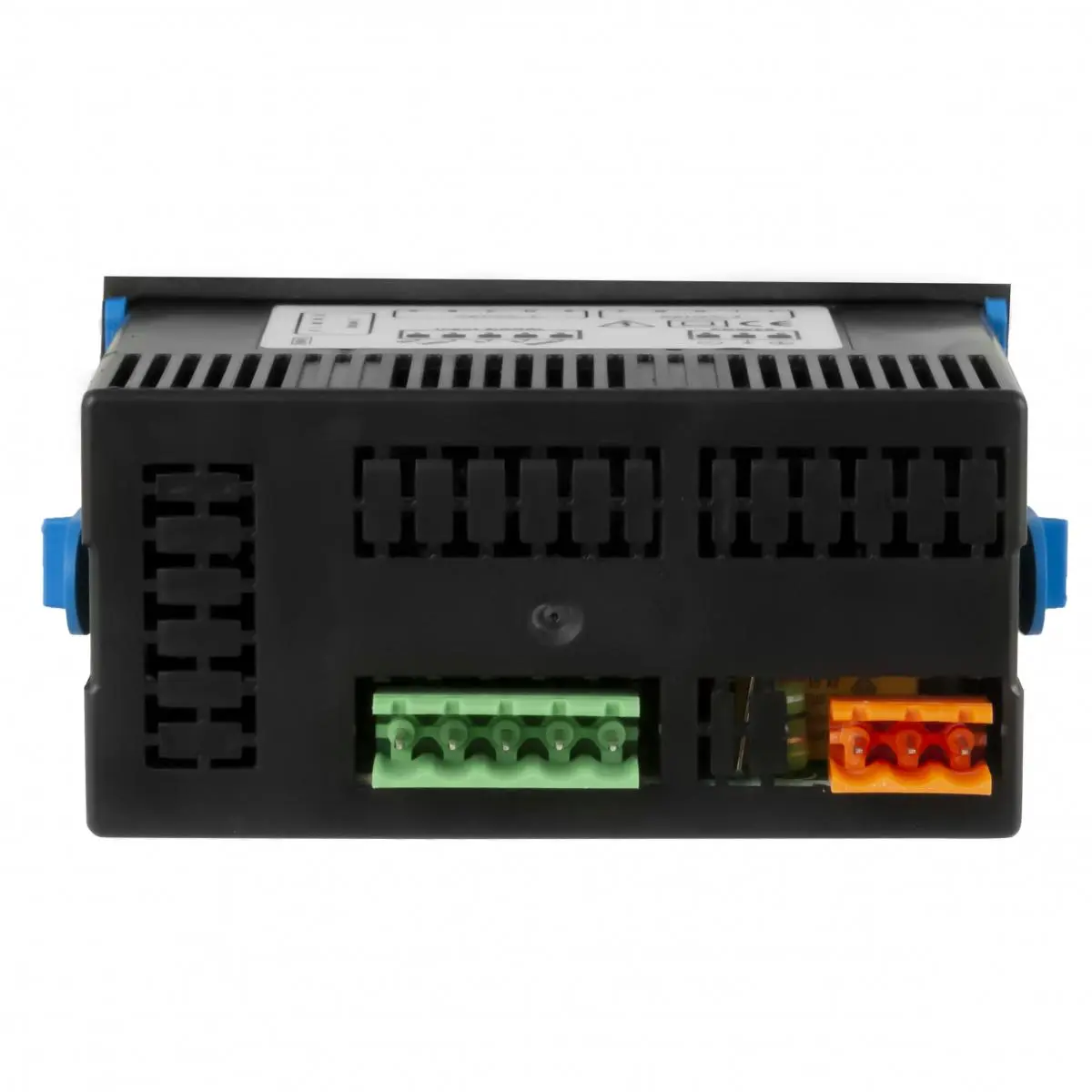

The Panel Indicator can evaluate NPN, PNP, and Namur sensors, as well as rotary encoders and proximity sensors, and thanks to its configuration options, it is suitable for piece counting, speed measurements, etc. The Panel Indicator measures 96 x 48 mm / 3.8 x 1.9 in. The Panel Indicator offers several counting modes (addition, subtraction, blocking, quadrature, etc.). Up to three different output cards can be optionally installed on the rear of the industrial counter.
| General technical data | |
| Display type | LED |
| Digit size [WxH] | H: 14 mm |
| Warm-up time | 15 min |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Mounting | Panel |
| Insulation | 1500V RMS |
| Dimensions | Front size: 96 x 48 mm Panel cut-out: 92 mm x 45 mm (according to DIN) |
| Max. input voltage | ±30V DC |
| Display range | -199999 ... 999999 |
| Additional description | Input impedance: 2.4 kΩ with pull-up/pull-down; 470 kΩ without pull resistor |
| Protection class (device) | IP65 |
| Power supply | 11 ... 60 V AC/DC |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | -20 ... 70 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 98 x 96 x 48 mm |
| Weight | 138 g |
